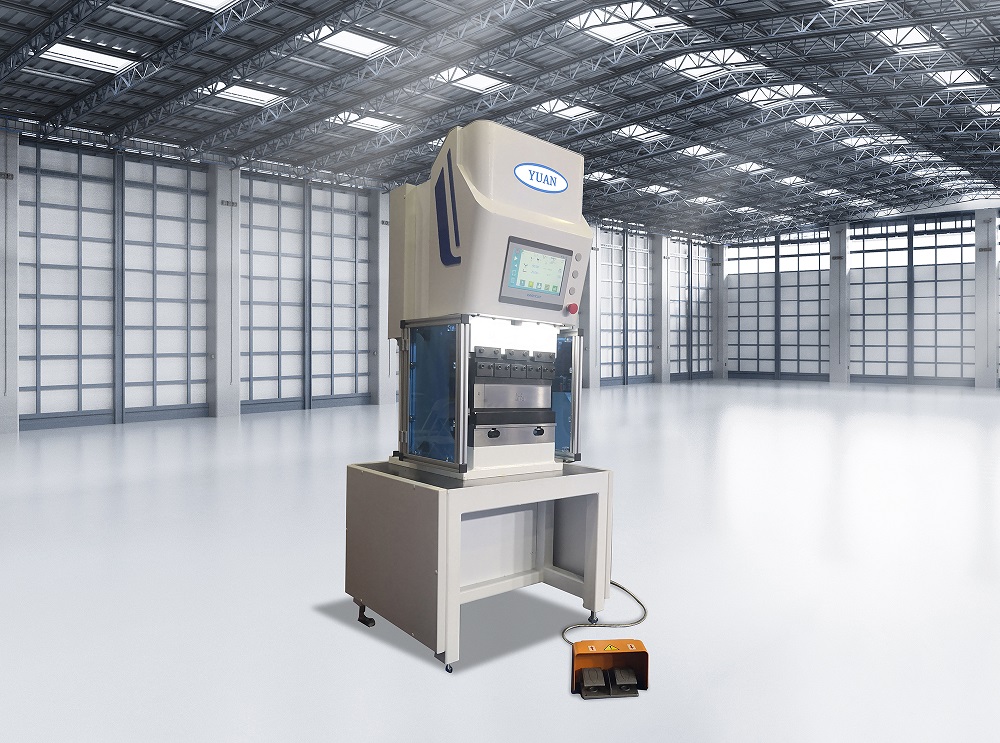

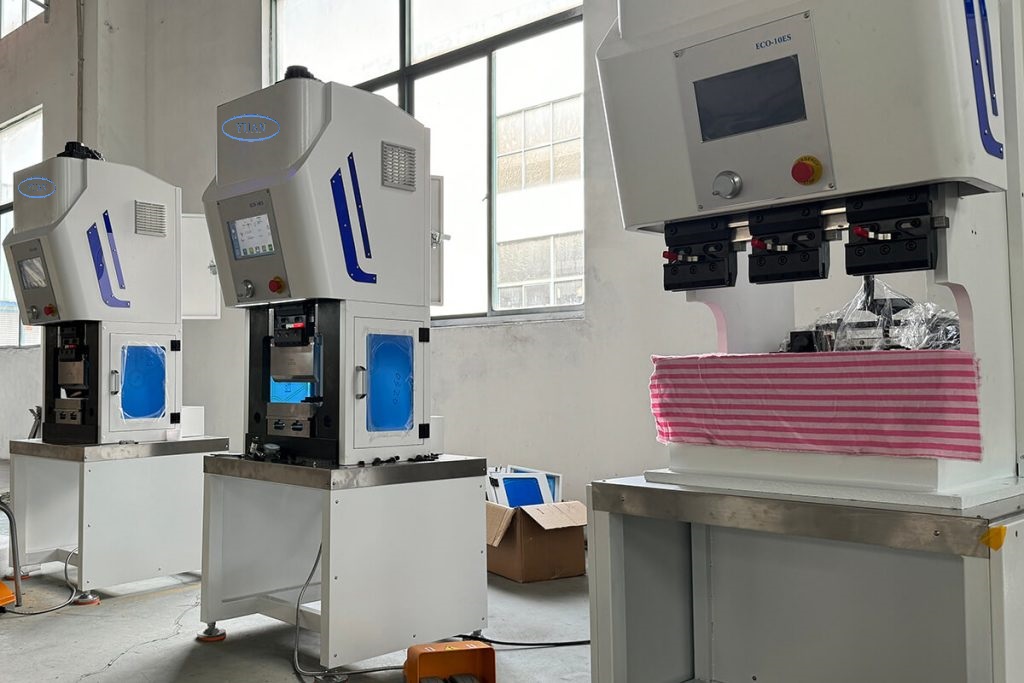

Maanshan rizhen machinery design a new type of small electric press brake.The small press brake is anti-eccentric load electric press brake.It includes the bottom seat .Above the bottom seat is machine body.On the top of the electric press brake is drive motor ,servo motor.The servo motor connect with ball screw .The machine is driven by the servo motor to directly drive the screw rod to achieve high-speed rise and fall, stable repeatability and high-efficiency production.

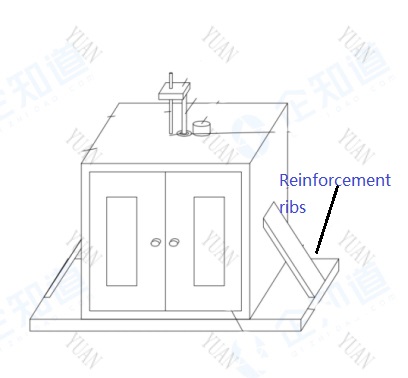

The small bending machine has two reinforcement ribs beside the throat of machine body.
Description:
The small electric press brake is pure electric press brake ,no need for oil.This is suitable for any workshop.
Heavy type ball screw drive,the precision can reach 0.01mm
All the motors are sevo motor .Fast down and return just cost little power consumption.Compared with hydraulic
press brake machine ,it save 50% power consumption.
The small press brake machine body is ductile iron casted.All tempered.
After tempered,machine is proceed on cnc gantry machine.
Machine is closed loop with servo motor+magnetic scale.
Parameters:
Model | Pressure(ton) | Width(mm) | Stroke(mm) | Backgaue(mm) | Axis | Main Motor(KW) | Fast Down(mm/s) | Pressing (mm/s) | Max Opening(mm) | Throat Depth(mm) | Pole Distance(mm) |
RZ03-02 | 3 | 230 | 120 | 150 | 2 | 2 | 200 | <30 | 420 | - | 250 |
RZ06-04 | 6 | 400 | 120 | 150 | 2 | 3 | 200 | <30 | 420 | 150 | 370 |
RZ12-06 | 12 | 600 | 120 | 150 | 2 | 5.5 | 200 | <30 | 420 | 150 | 520 |
RZ18-08 | 18 | 800 | 120 | 250 | 3 | 7.5 | 200 | <30 | 420 | 250 | 770 |
Small Press Brake Application:
1.Metal Sheet Forming:
Mini electric press brakes can bend sheet metal components, particularly in industries where precision shaping is vital. These industries include HVAC (Heating, Ventilation, and Air Conditioning) for ductwork, cabinetry, enclosures, and automotive manufacturing for various parts.
2.Prototyping:If use power press ,you need to open mould .Use small press brake no need to open mould.
3.Small shop:Small bending machine is very freindly for small workshop.No need to use oil.You can use it anytime you like.
4.Electronic Production
Electrionic production normal small size ,but high precision.Electric press brake is the first choice.
5.Aeronautics and Space Industry
Pure electric press brake can produce brackets ,panels and so on in aeronautic field.
6.Bus bar
If your bus bar is heavy type and many different shape and size.Use the mini press brake to bend is an ecomomic solution.You can match with the Roll V Die.There is no mark when bending.
7.Technical School&Community College
These school students need to know knowledge about sheet metal bending and forming.The small machine doesnot occupy much space.It is fully electric ,no much request for operation.
