Press Brake is an important bending machine for sheet metal fields.Compared with Large Press Brake ,Small Press Brake is very popular tool for small workshop or welding shop.It is easy to use and easy to maintain.
1. What raw material can small press brake machine process?
a. Mild Steel
b. Stainless Steel
c. Copper ,like Copper bus bar
d. Aluminum ,like Al bus bar
e. Galvanized plate sheet
2.Small Press Brake Types:

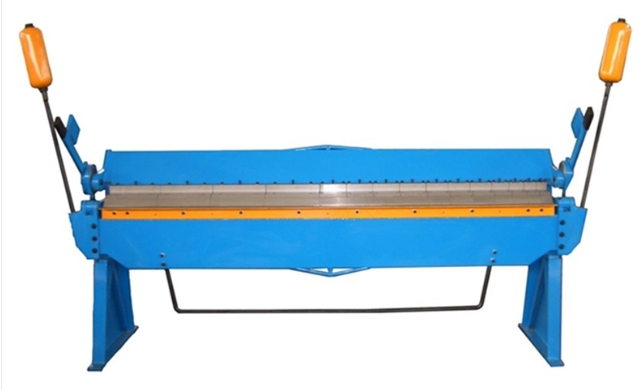

a.Manual Brake
The manual brake also call Manual Press Brakes.It is operated by manual.
It is suitable for thin steel ,especial for thickness less than 2mm aluinum.
The brake is widely used in ventilation equipment.

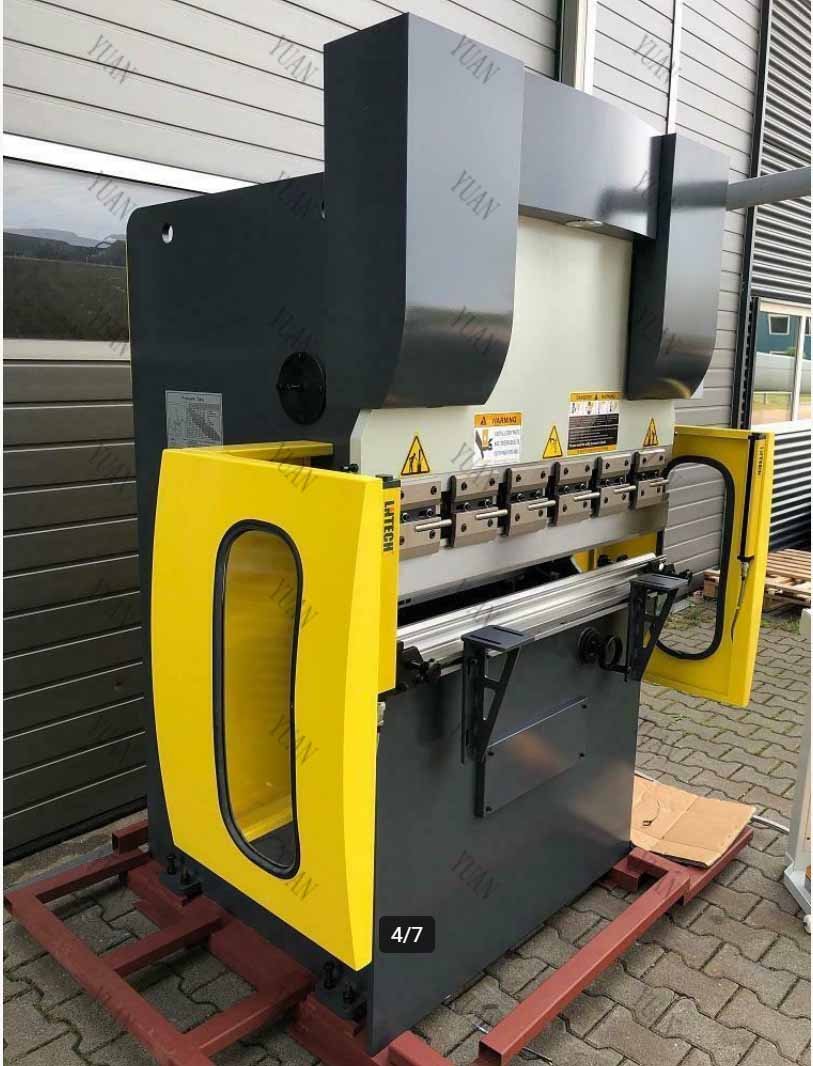

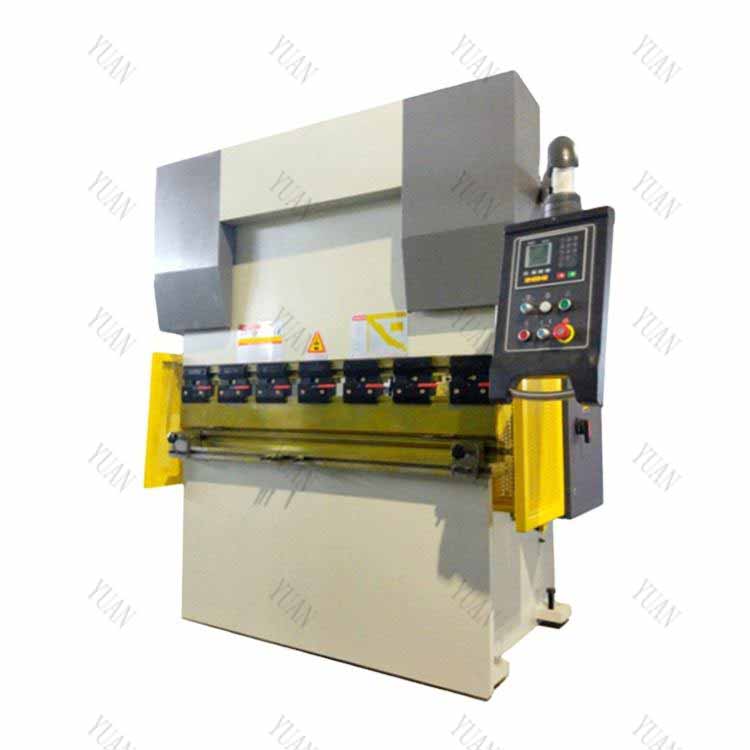

b.Small Hydraulic press brake
The smallest hydraulic press brake is 40ton ,it can bend 1600mm width workpiece.
It is suitable for bending mild steel less than 3mm thickness.
This type press brake machine is easy and economical bend series .

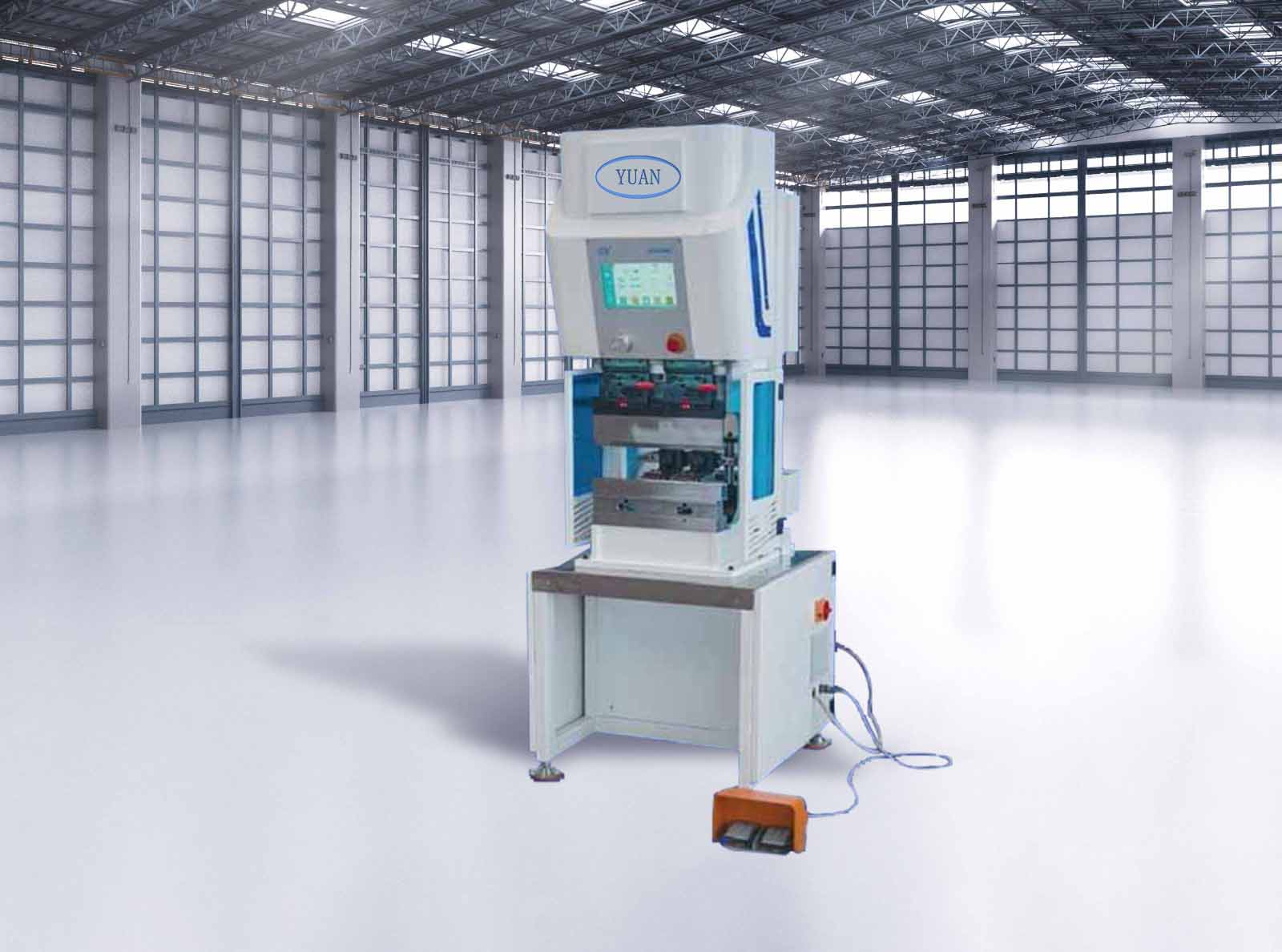

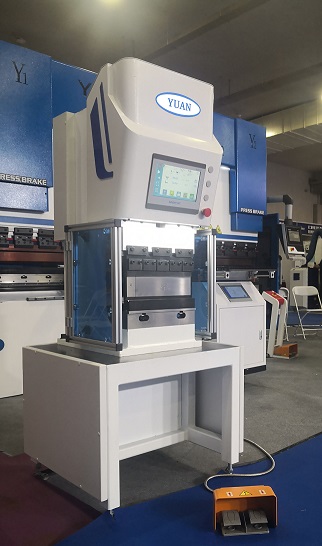

c.Small Electric Press Brake
Small electric press brake is an ideal solution for small parts which need high.Its precision can reached 0.01mm.Working fast and save power consumption.Our small electric press brake machine has big max opening and big stroke.

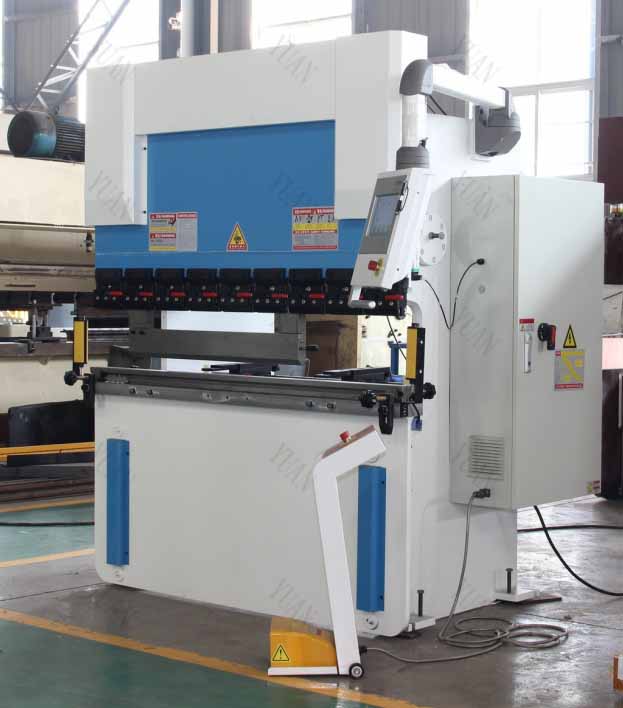

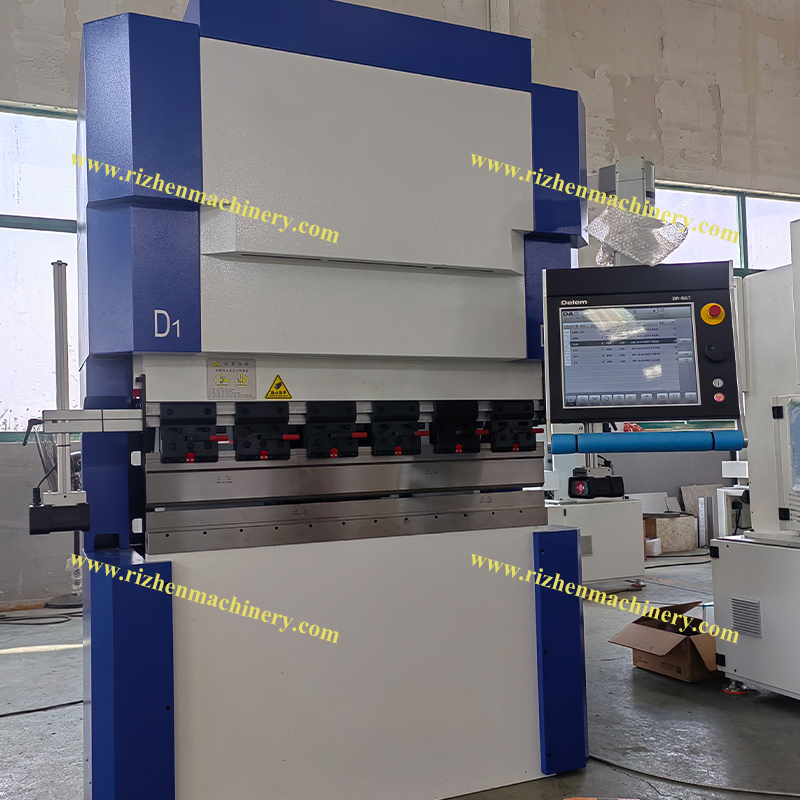

d.Small cnc press brake
Small cnc press brake is CNC Electric -hydraulic proportion press brake,its price is expensive.
Its controller is Cybelec Co, Switzerland,or DA series of Delem Co.,Holland and electric-hydeaulic proportional servo valves of HOERBIGER GMBH,Or Bosch GmbH.Germany.The closed cycle type cntrolling system which is made up of CNC system +linear encode electrical+hydraulic proportional valves
+electrical amplifier precisely measure and control the relative position of ram &working table and the synchronous precision.The system keeps the synchronous operation of ram and guarantees the pressing depth &angle.
e.Servo pump controlled cnc press brake
This machine is newly developed model with environment-freindly servo pump controlling cnc press brake with tight structure,good appearance,good rigidity and strength.Installed Hollan Delem DA66T CNC system,with laser safe protection.Installed advanced aluminum alloy wholly back gauge and the mechanical crowning mechanisam.Oil pump is controlled by servo motor,the wholly system is high efficiency and stability.
f.4 foot press brake
The machine working length is 4 foot ,1200mm .
g.8 foot press brake
The machine working length is 8 foot ,2432mm.
3.Top 5 small electric press brake manufacturer
A.Coastone has mini cnc press brake .Its C-series press brakes is very compact.It has C9,C12,C15.Its G-series has big tonnage.
B.Amad has two types of electric press brake.
One is 40ton press brake ,one is 60ton press brake
C.Safan Press Brake
D.Dener is a turkey manufacturer.
Its servo brake pressing force by means of synchronized two servo motors that transfer the power by the help of specail belt and pulleys.
During the upper beam down movement,the servo motors place s tension force on the belt that is multiplied equallt in every belt segment.The
force of each motor creates a down force many times greaters.The ram reture force is derived from mechanical springs located at the side of the machine.
These springs are compressed during pressing time ,but recoil after completion of the bend pushing the ram to a preogrammed top
of stroke position.
5.Rizhen Mini Press Brake.
We have new technical for small electric press brake machine.All our small press brake is used Anti-eccentric load technology.Our small press brake tonnage is 3t ,6ton,12ton.All the body is casted,material is ductile iron.The machine body is proceed on gantry cnc machine.
4.What field can use our small electric press brake machine?

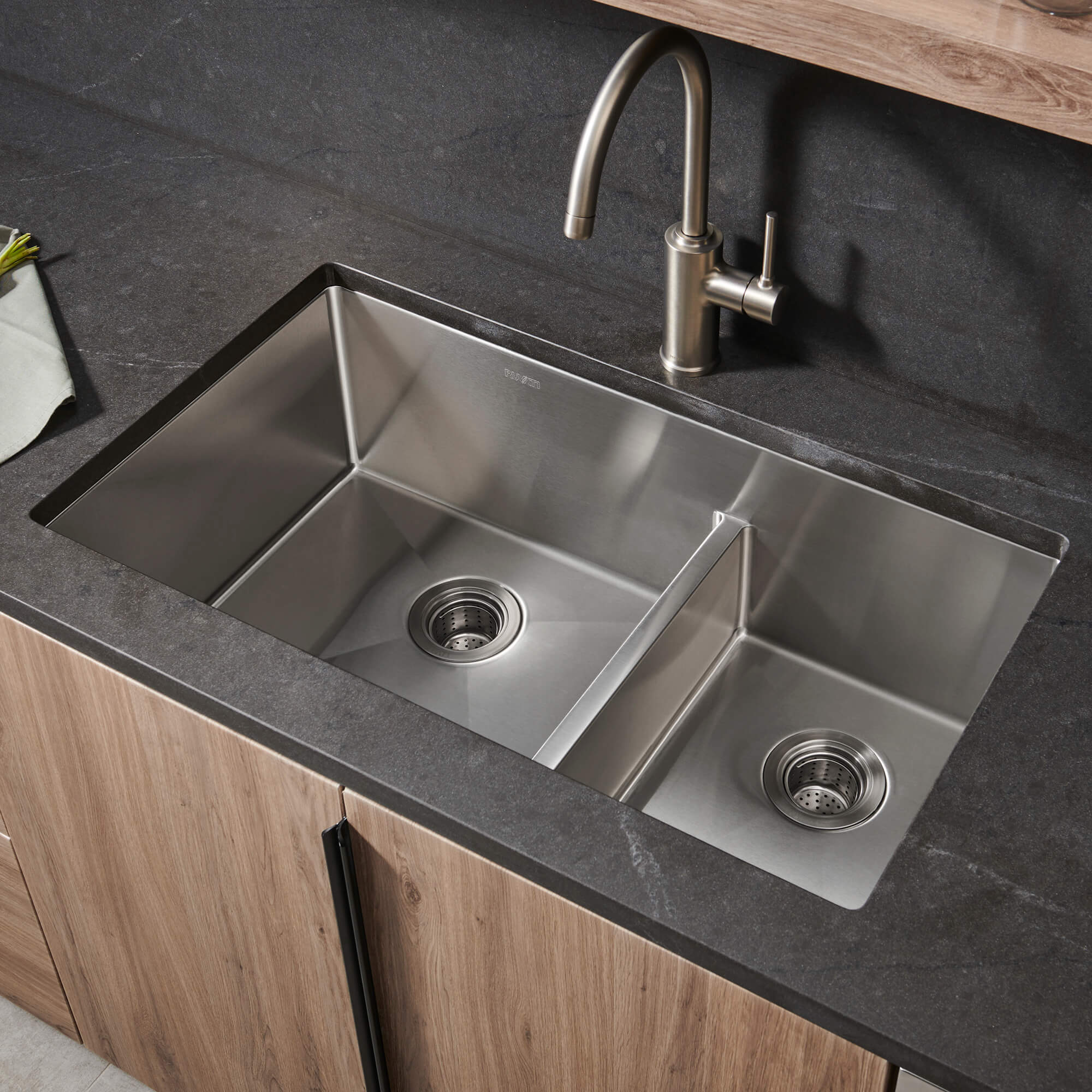

1.Kitchen utensils

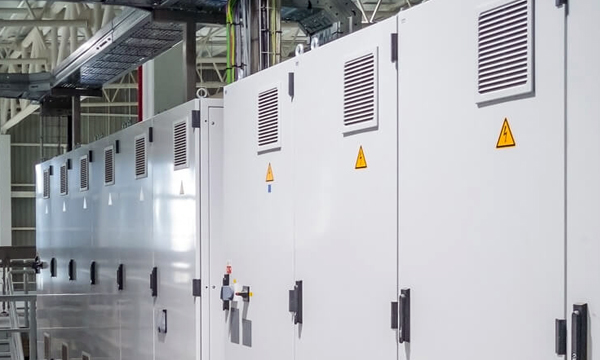

2. Electrical cabinet
3.New energy:bus bar
Bus bar norally has two type.One is Copper Bus Bar,one is Aluminium Bus Bar.
Electric press brake can bend more than 10mm thickenss copper bus bar .
It can match low die film or rolla v die .Both of these can prevent bending mark.
4. energy storage

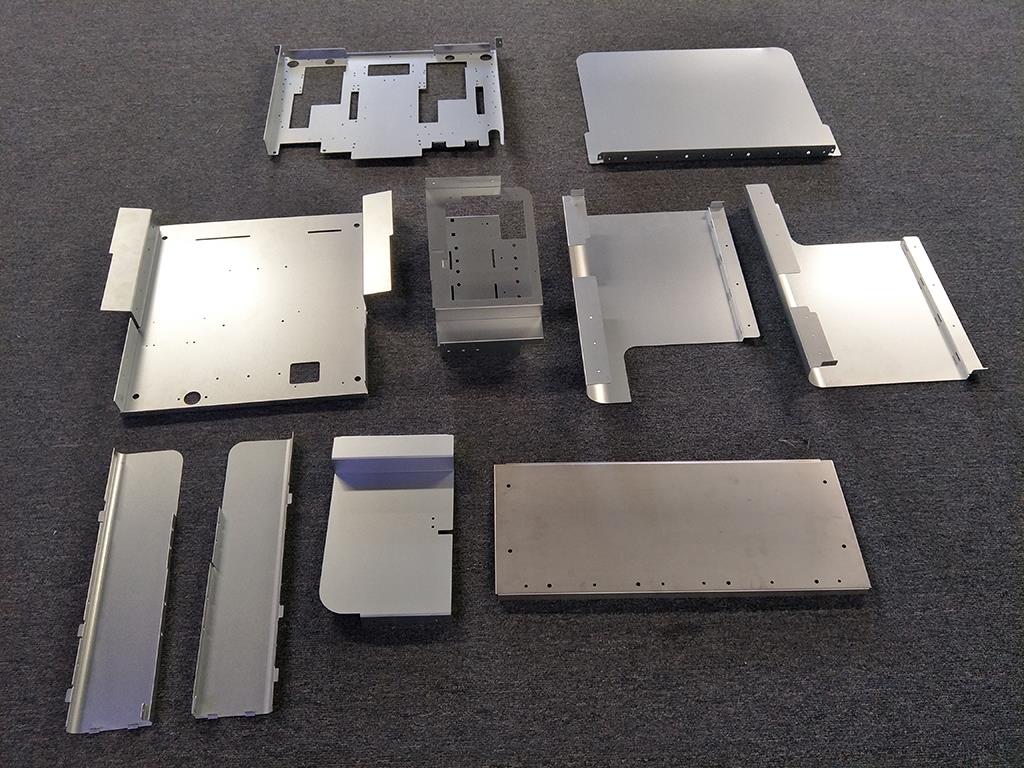

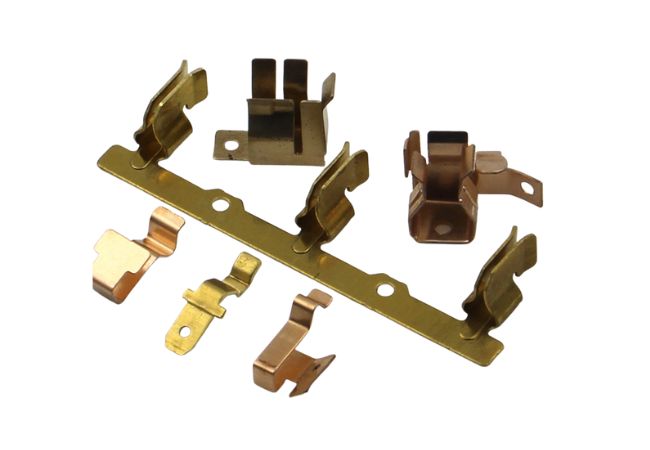

5. Hardware
Hardware is often produced by cnc punching machine.
But if the client needs samples before order?
How to do?You need to open mould.Maybe the mould is expensive.
Use our small electric press brake ,you will produce it easily without

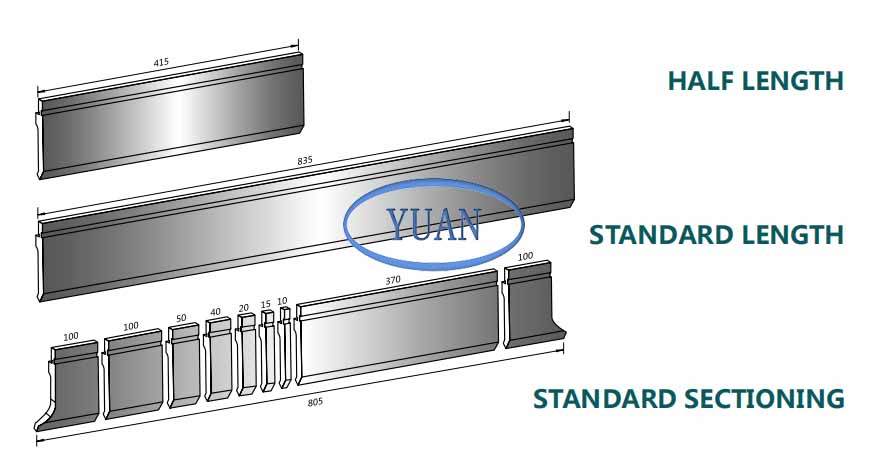

6.What tooling does our press brake machine install
All Our electric press brake installed cnc press brake tooling.
Single v ,two V ,rolla bend,self centered four V and so on.
Our press brake tooling is self centered.No need to adjust the center point.Save time.
