How Many Types of Press Brakes

Press brakes are machines used in metalworking and metal forming processes to bend and shape sheet metal. There are various types of press brakes, each designed for specific applications and manufacturing needs. Here are some common types:

Mechanical Press Brake:

This traditional type of press brake uses a mechanical flywheel to generate force. Mechanical press brakes are known for their high speed and power but may lack some of the precision and control offered by other types.

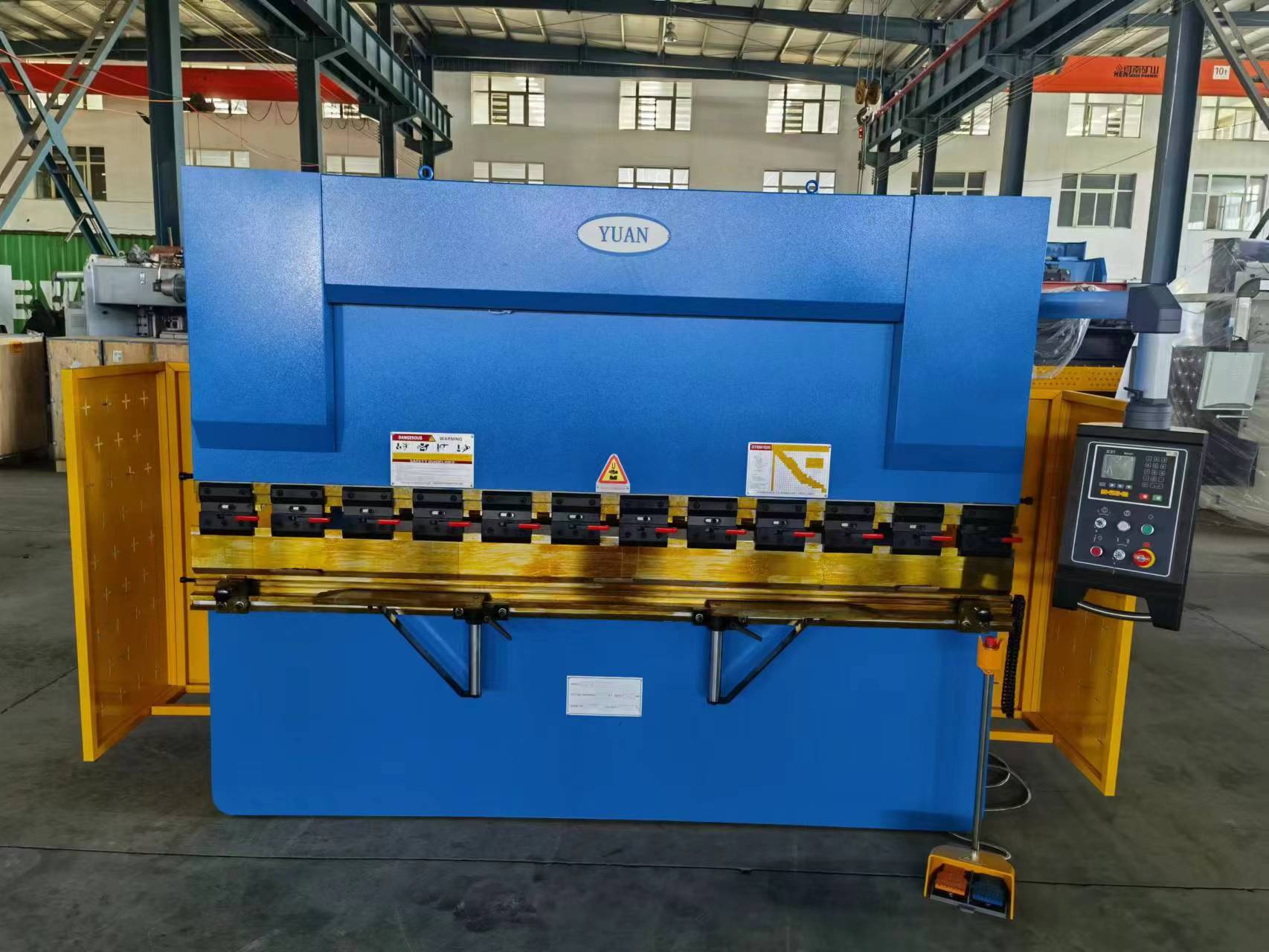

Hydraulic Press Brake:

Hydraulic press brakes use hydraulic cylinders to generate the bending force. They offer better control over the bending process, allowing for precise adjustments. Hydraulic press brakes are suitable for a wide range of applications and provide consistent bending results.
Synchronized or Conventional Hydraulic Press Brake

This type of hydraulic press brake features multiple hydraulic cylinders that work together in a synchronized manner to apply force evenly across the length of the bending bed. It allows for accurate and uniform bending of the metal.

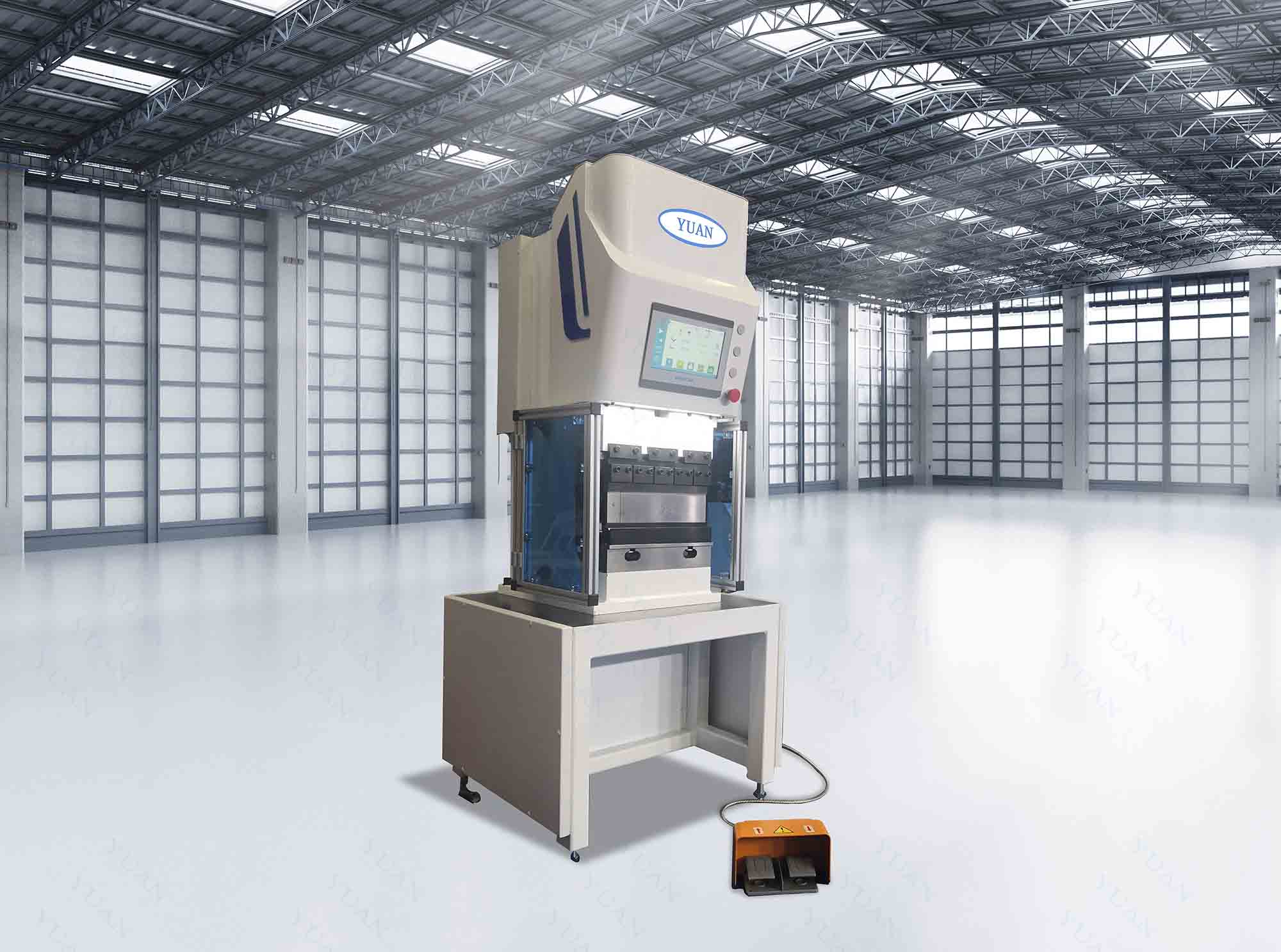

Servo-Electric Press Brake:

Servo-electric press brakes use electric motors and ball screws for precision bending. They are known for their energy efficiency, accuracy, and versatility. Servo-electric press brakes are suitable for applications requiring high precision and repeatability.

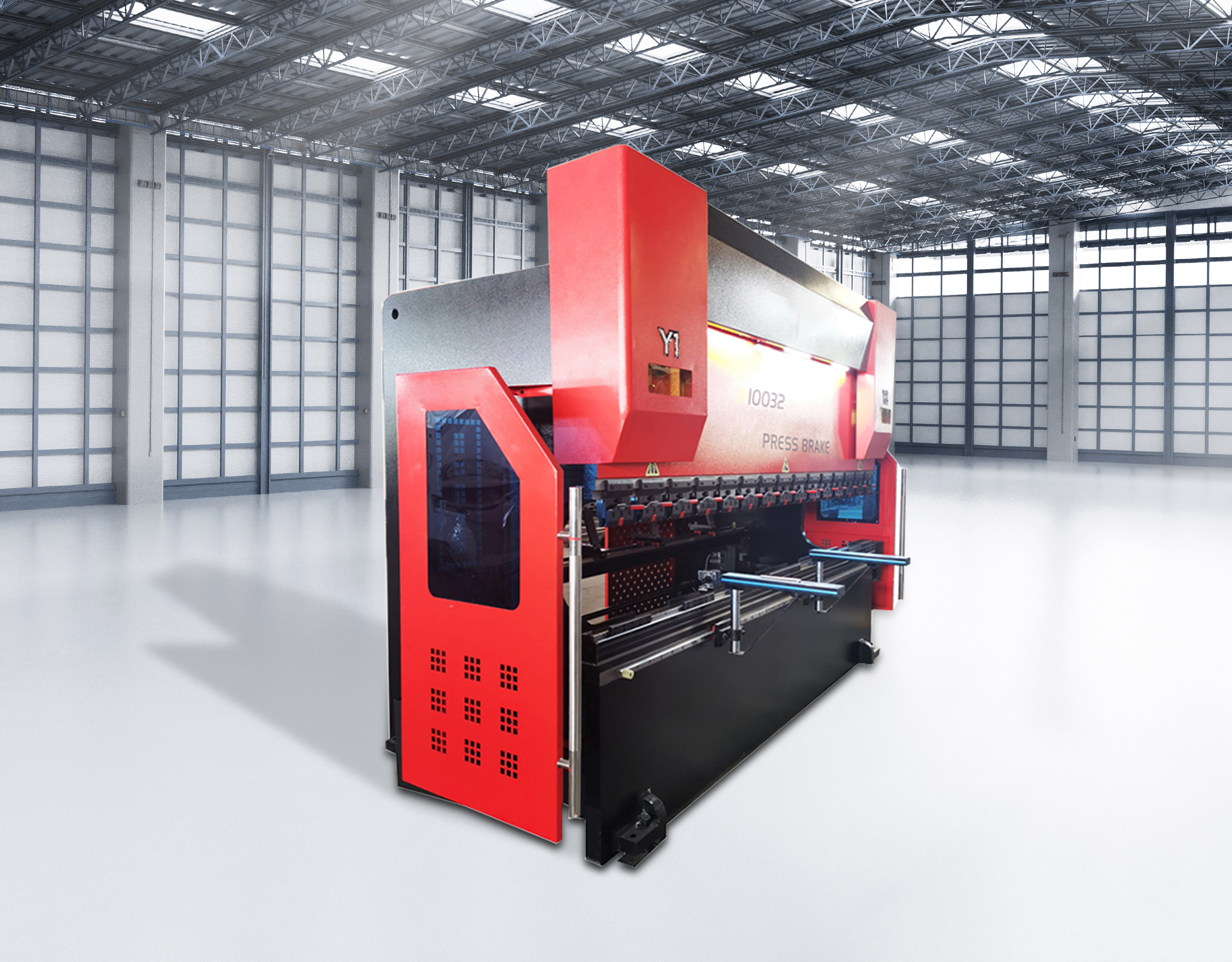

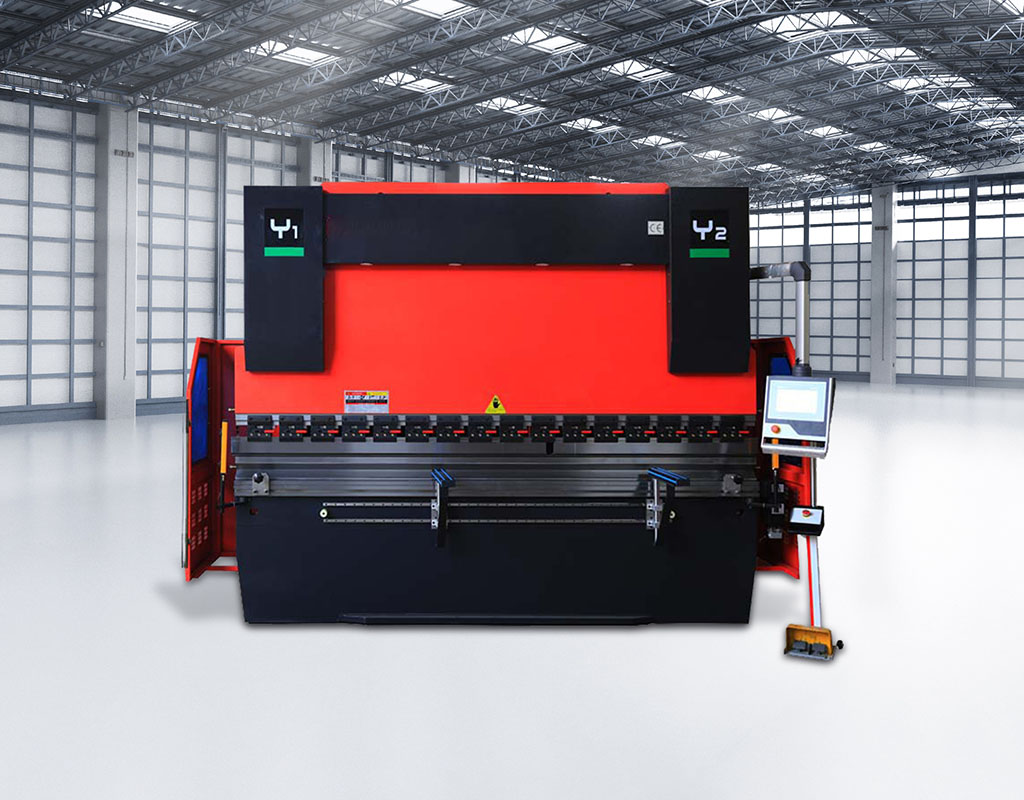

CNC Press Brake:

Computer Numerical Control (CNC) press brakes are equipped with computerized controls that allow for programmable and automated bending sequences. CNC press brakes offer high precision and are ideal for complex bending tasks with multiple steps.

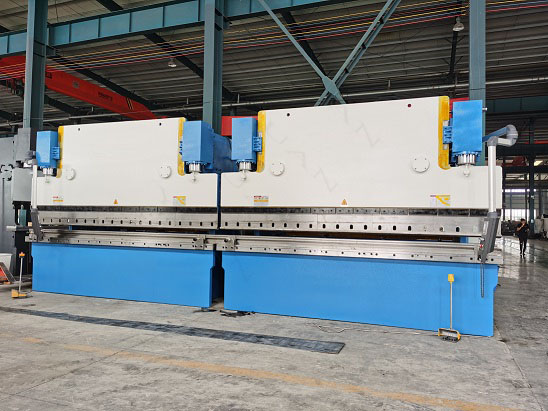

Tandem Press Brake:

Tandem press brakes consist of two or more press brakes working together in tandem. This configuration allows for the bending of longer and heavier workpieces, increasing overall bending capacity.

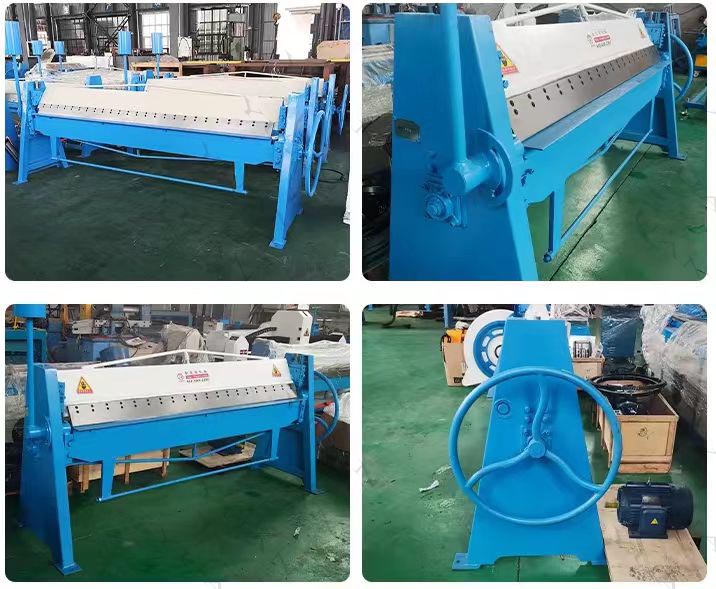

Box and Pan Brake:

Box and pan brakes, also known as finger brakes, are specialized press brakes designed for bending sheet metal into boxes and pans with distinct shapes. They have adjustable fingers or dies that allow for the creation of multiple bends in a single workpiece.
Hybrid Press Brake:
\

Hybrid press brakes combine elements of both hydraulic and servo-electric systems. They aim to offer the benefits of precision and energy efficiency by using a combination of hydraulic and electric technologies.
The choice of press brake depends on factors such as the material being worked on, the required precision, production volume, and the complexity of the bending tasks. Each type has its advantages and is suited to specific applications in the metalworking industry.
