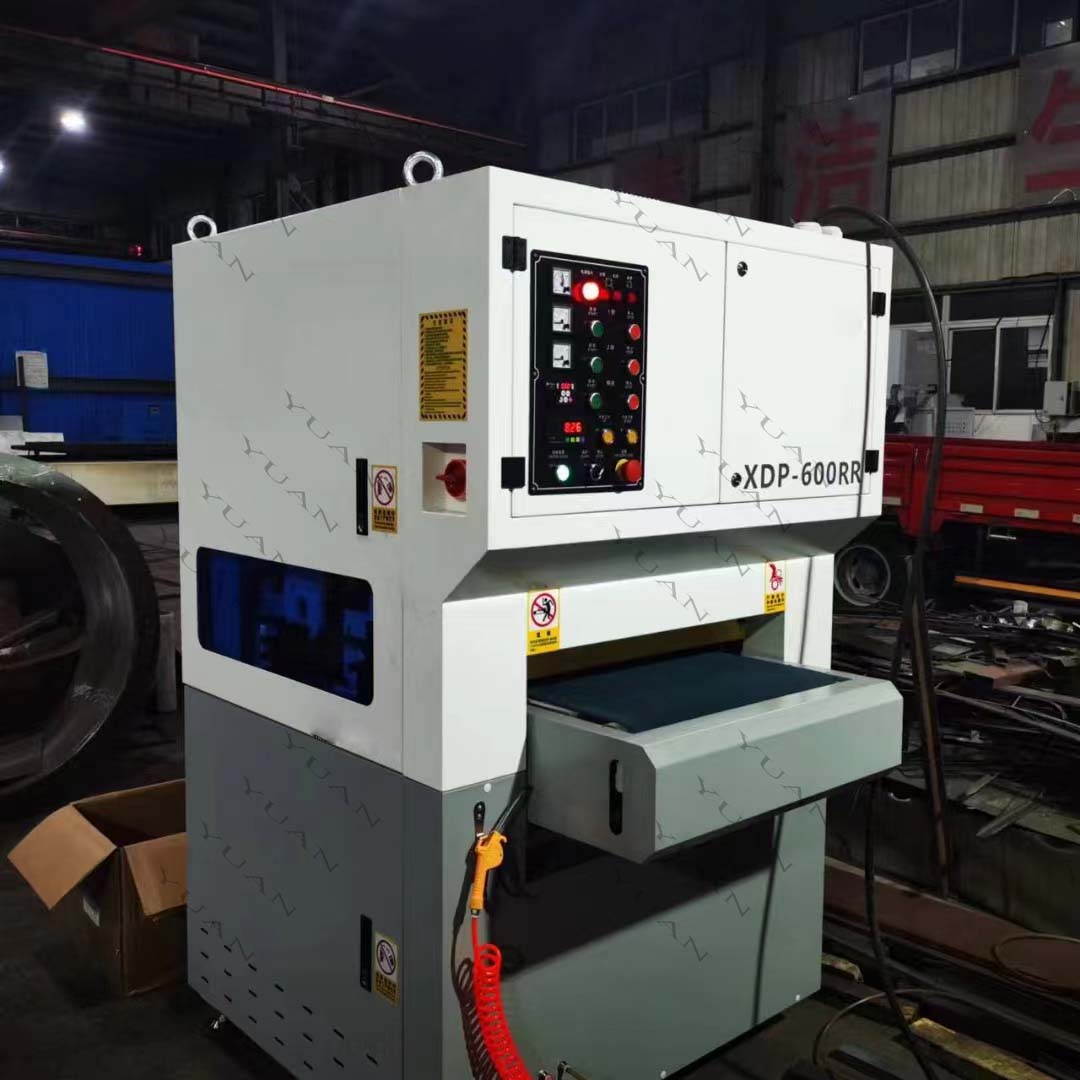

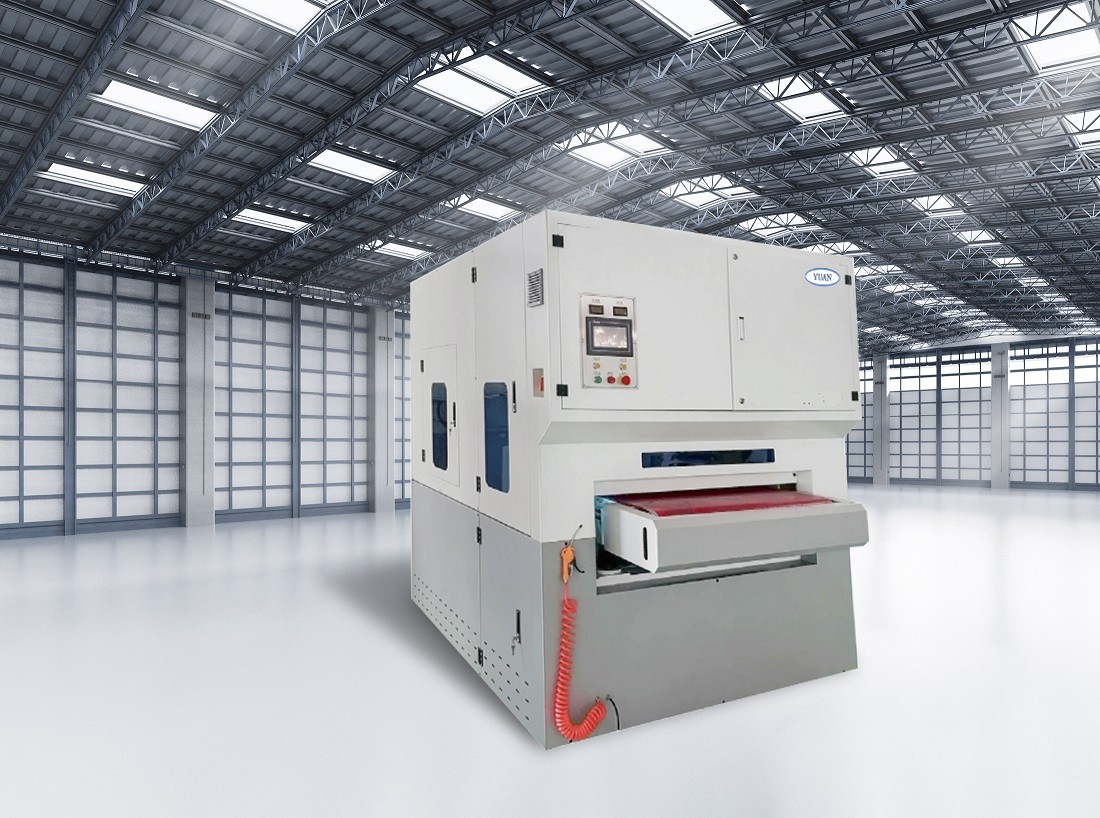

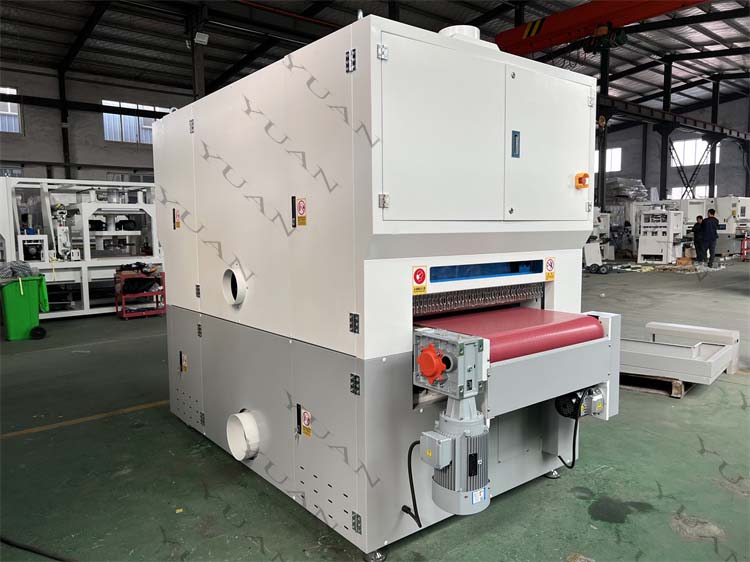

Deburring Machine Function

YUAN Brush Machine is complete solution for deburring finshing,egde rounding ,laser oxide remova,heavy slag removal.It can

process laser-cut,punched,plasam-cut,machine metal-parts.

Motorzied brush adjustment.

Window panels and lit interrior for process observation.

Light indication for machine status.

Motorized table opening for work piece 0-100 mm.

Magnetic track to hold small parts from 30x30 mm and slightly wraped parts.

Vacuum table to hold small parts from 50x50 mm with automatic interbal cleaning cycle.

Deburring and rounding of aluminium,steel,stainless steel,foil and zinc coated parts.

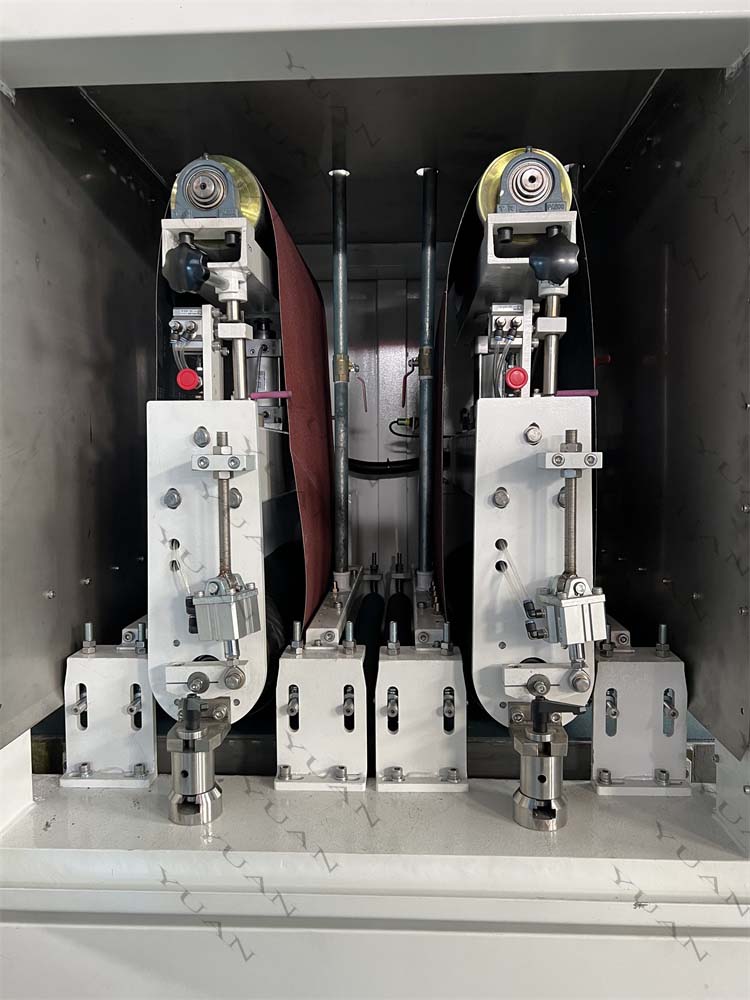

Grinding of the burrs with an abrasive grinding belt.

Top and bottom dust removal.

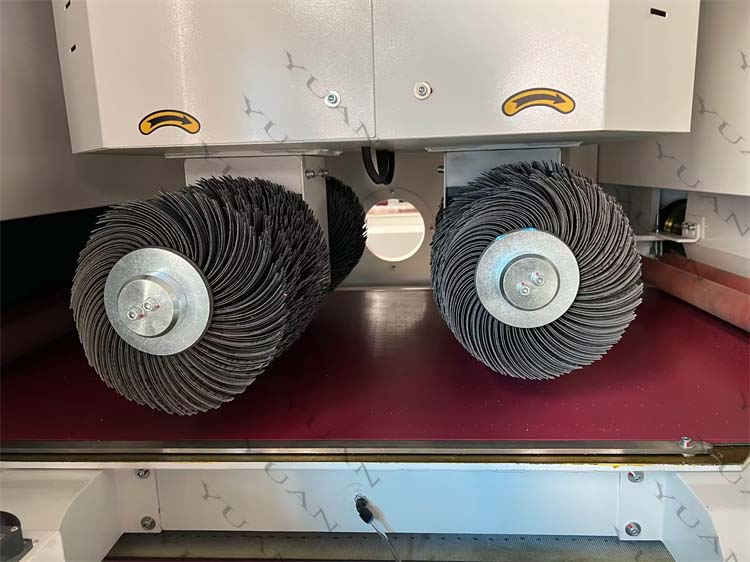

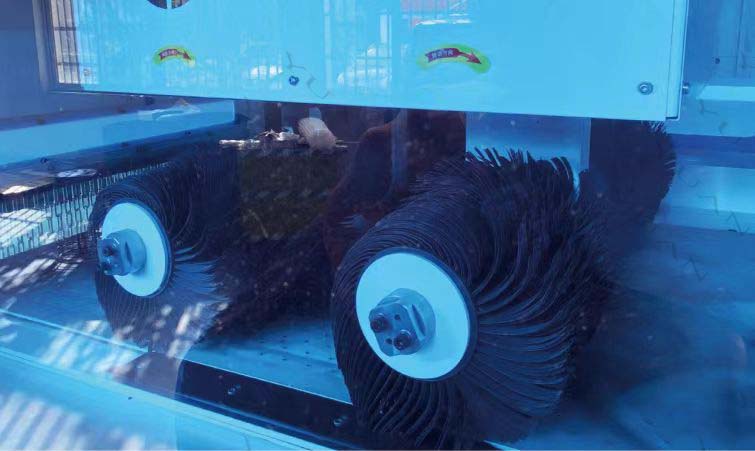

Two/Four/Eight counter rotating abrasive brushes.

Uniform edge rounding with abrasive brushed up to 2mm radius.

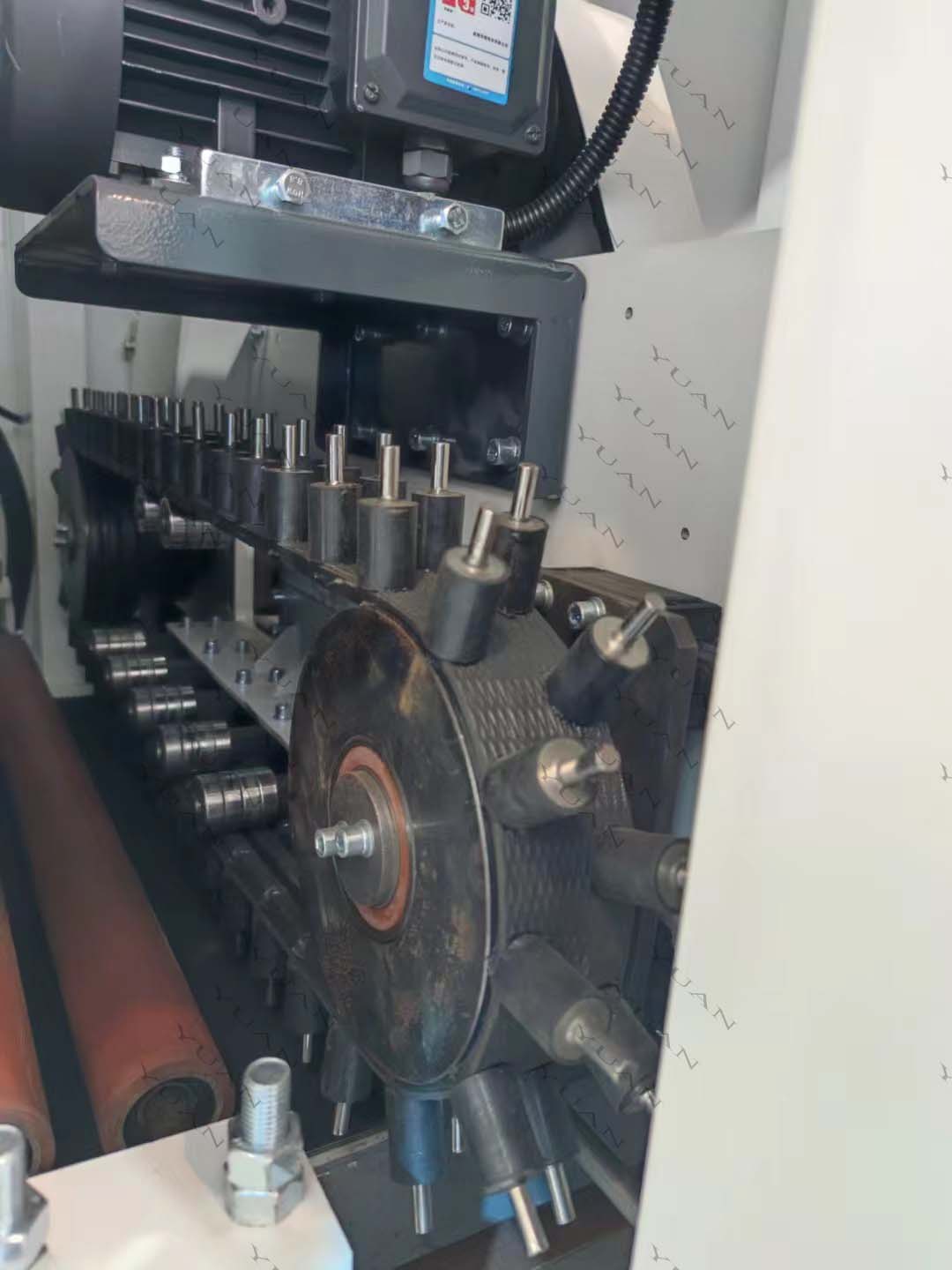

Hammerhead with hardened steel pins for heavy slag removal.

Quick exchange system for brushed.

Combination of laser oxide removal brushes and edge rounding abrasive brushes.

Quick exchange system for abrasive belts.
