How to Choose Press Brake Punch and Die for a Beginner?
Press brake is an important bending machine for a fabrication plant.
If you just buy a press brake machine ,what press brake punch and die you should match?
Firstly choose a standard punch and die.The low die v block open is 6-8 *plate thickness.

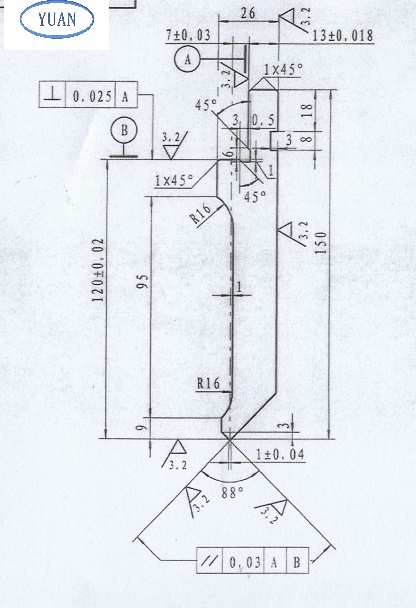

There are some types of press brake punches.Standard punch,sharp angle punch,gooseneck punch and so on.
Standard punch can bend 90-180 degree.It is for common use.
Then choose a sharp punch ,it can bend 20 -180 degree.It is suitable for bending small angle.
The bending R is small and sharp and be beautiful.

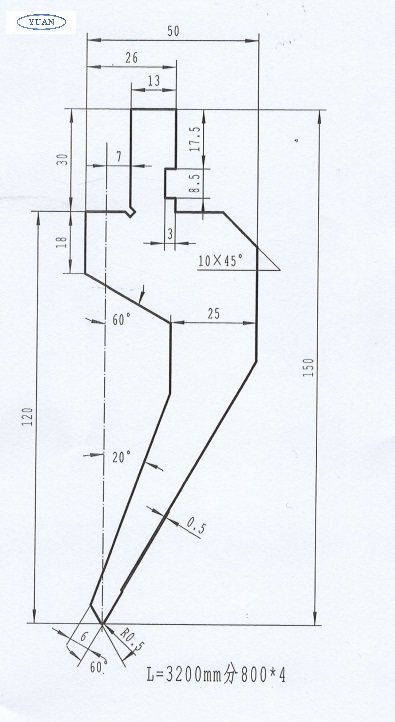

Then choose a gooseneck.It can bend 30 degree to 180 degee.It is suitable for bending U shape.

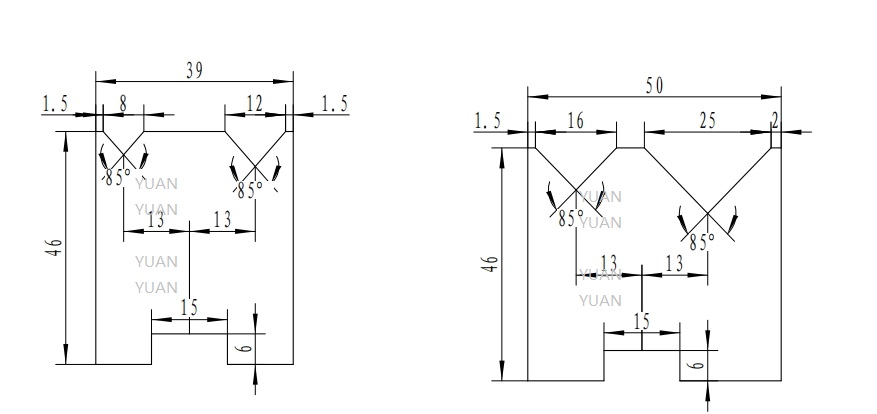

Hemming punch and die.
Off set punch and die.

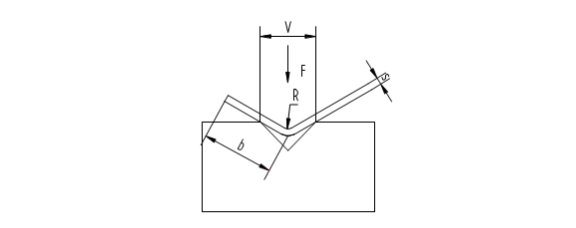

How to choose your low die V block width,please see below bending diagram
S -----Plate thickness ,mm
B------Min bending width, mm
F-----Bending force KN/m
R----Bending Radius mm
V----Width of low die V
The opening width of the lower mold groove, in mm: The width of the lower mold groove needs to be calculated
based on the plate thickness and width S, and the specific formula is as follows:
S≤3mm V=(6~8)x S
S>3mm V=(8~12)x S
Due to the different workpieces required by each manufacturer, the minimum bending width and bending angle may vary. These two values also determine the opening width of the lower mold slot. During the bending process, the bending force is concentrated on the workbench and mold, so it is crucial to calculate the bending force that the mold can withstand, otherwise the mold will be damaged due to inability to withstand the bending force.

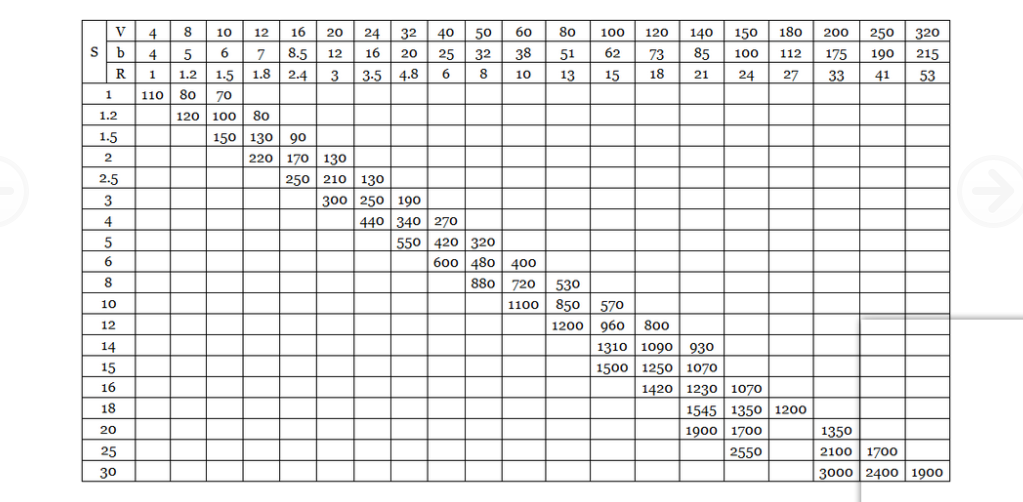

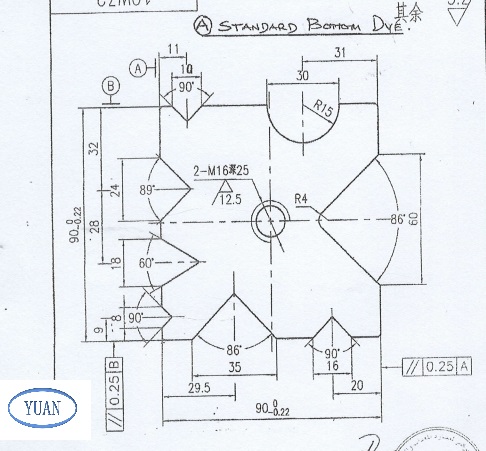

Press brake punch and die chart:
Doule V width
V4-V7 V5-V9 V6-V10 V7-V11 V8-V12 V15-V18,V16-V25
Single
V4 V5 V6 V7 V8 V10 V12
Press Brake Materail:
T8、T8A、T10、T10A、Cr12MoV、42CrMo、42CrMo、Cr12MoV
We have standard press brake punch and die in storage,if you need ,please contact us freely. +86-18955590514
