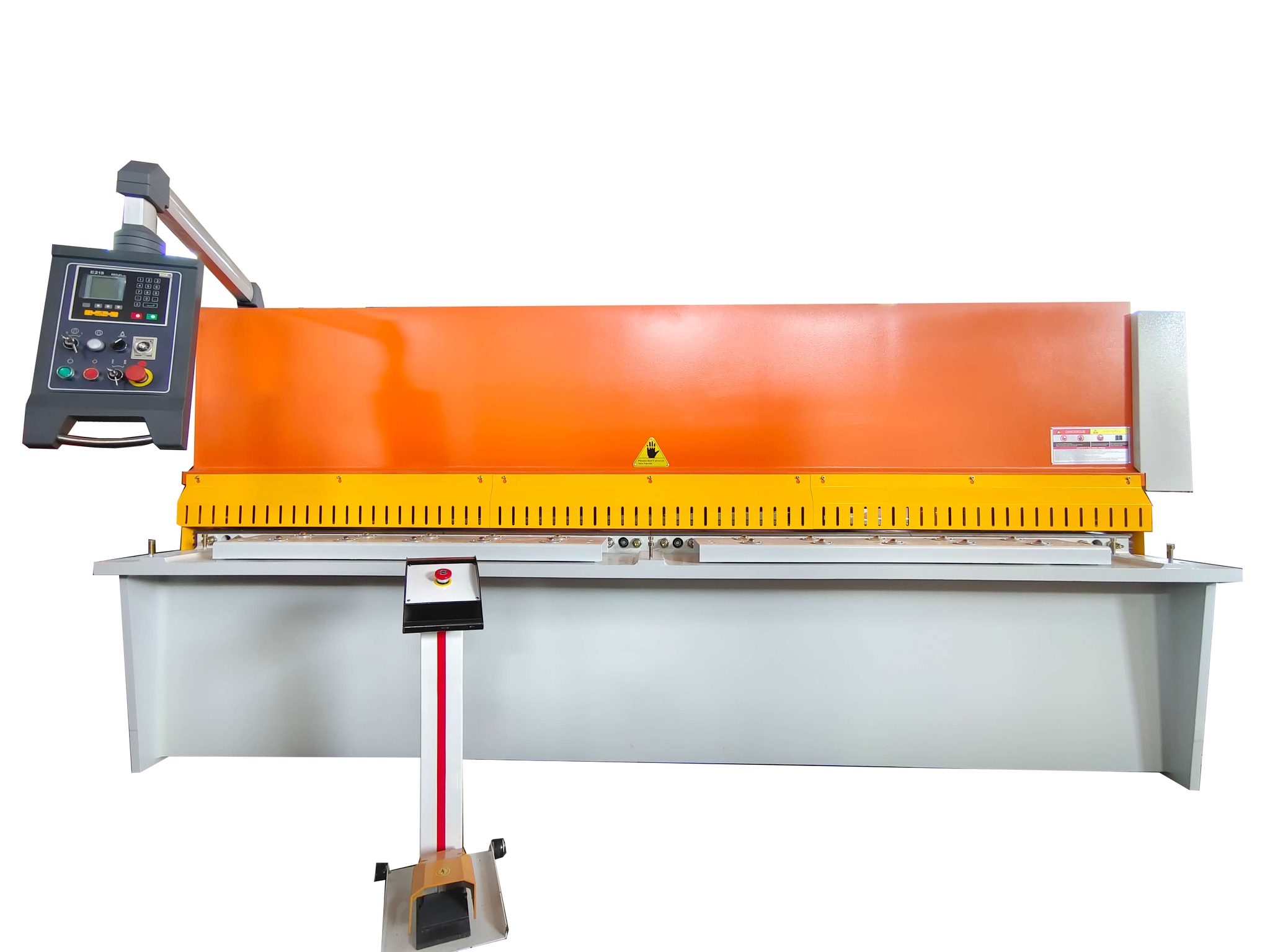

Manual Blade Gap Adjustment Swing Beam Hydraulic Shearing Machine With E21s Estun

Production description:

Hydraulic Swing Shearing Machine is a heavy duty machine with excellent rigidity, designed for cutting a wide variety of metals including steel plates, stainless steel, aluminum, cooper and other non-ferrous metals. It is equipped with an E21s Estun controller and a 7.5Kw motor, providing powerful cutting capability, and the adjustable shearing angle of 1°30' allows for precision cutting. The blade material is Cr12, which is known for its high hardness and excellent wear resistance, making it an ideal choice for this type of machine. The overall dimension of the machine is 3900x1750x1900mm, making it suitable for a variety of applications.

Production Features:

1. High-definition LCD screen, with Chinese and English language options, one page displays programming parameters, which is more convenient and efficient when writing programs.
2. Back gauge: intelligent positioning, manual adjustment can also be performed as needed, removing the mechanical hand-crank positioning device.
3. Shearing stroke: Built-in shearing time relay, easy operation and cost saving.
4. Shearing angle: Built-in shearing angle adjustment function, eliminating the need for angle indicators and buttons.
5. Knife edge gap: encoder feedback, timely display of knife edge gap size, simple and convenient operation.
6. It has the function of one-key backup and recovery of parameters, which can restore parameters at any time as needed, reducing maintenance costs.
7. All the buttons on the panel are micro switches, which have been strictly tested by EMC, high and low temperature, vibration, etc. to ensure the stability and service life of the product.
8. Passed CE certification to meet the needs of overseas markets.
