Press brake is a kind of machine specially in bending plate, mainly used in automotive manufacturing, kitchen appliance manufa
cturing, electricity poles, lamp posts, ship-building, military industry, steel industry, mechanical manufacturing. Bending dies can be designed and changed according
to customers' different needs.
Main types of press brake produced by our company are: manual torsion, CNC torsion press brake, electro-hydraulic press brake, large electro-hydraulic synchronization press brake Currently, our biggest press brake equipment is 1000T/10000, production for many years, and stable performance.
Features:

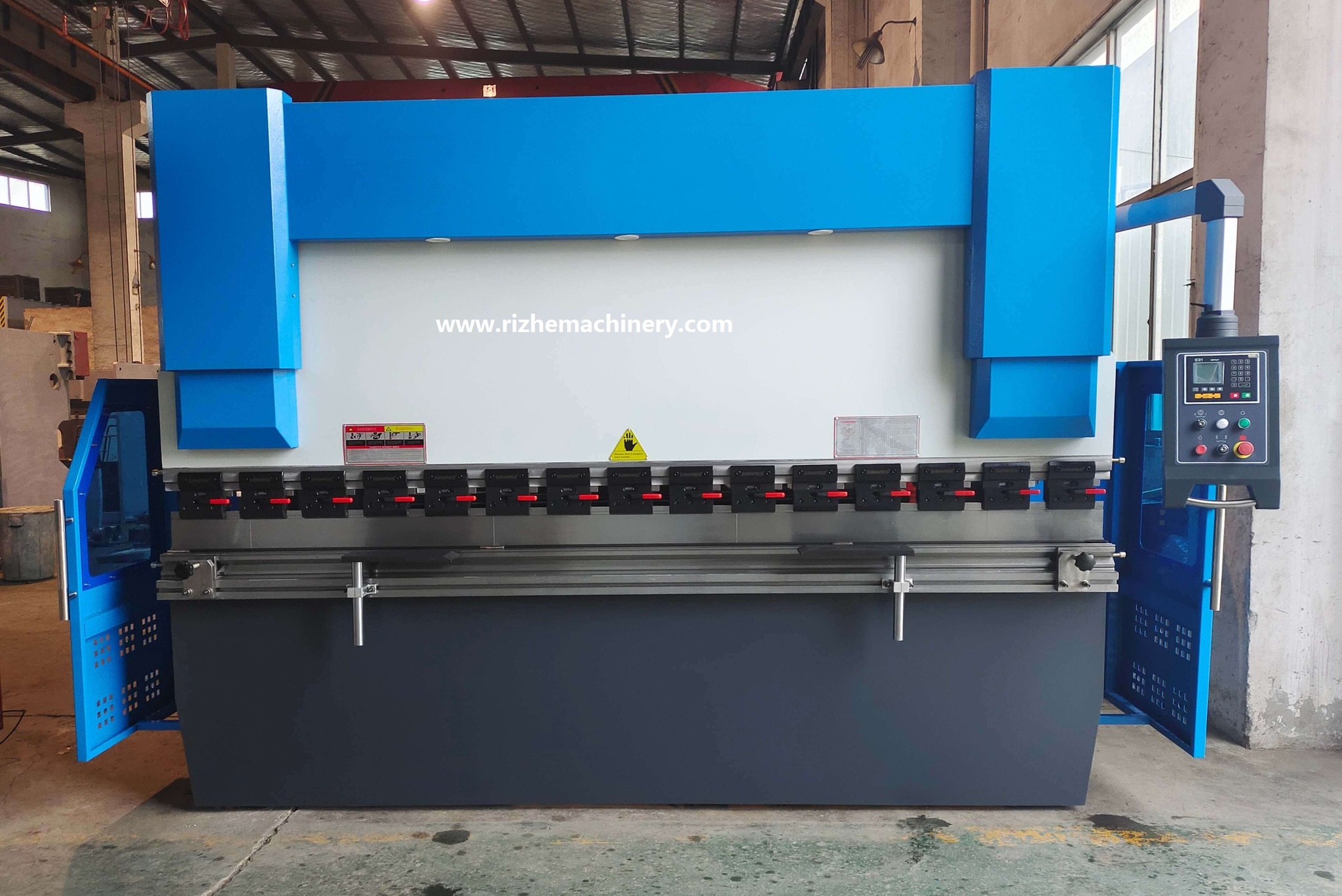

The main machine adopts the structure of series WC67Y hydraulic press brake;
High precision, high efficiency CNC Torsion Bar Synchro Press Brakes;
Holistic welding structure;
Stabilizes left and right balance with help of the mechanical Torsion Bar;
Backguage is drove by servo motor and performance;
Ball screw and linear guide.
The standard cofiguration:
High precision backguage
Germany Bosch Rexroth safety valve
Germany EMB Hose connector
Schneider Electric Syste
RV reducer motor working table compensation (Optional)
Compensation device on workbench (Optional )
Quick mold clamping device
Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
Depth | Stroke | Open | motor | L x W x H | ||||
(mm) | (mm) | height | Power | (mm) | ||||
(mm) | (KW) | |||||||
WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2 |
