Mechanical compensation system

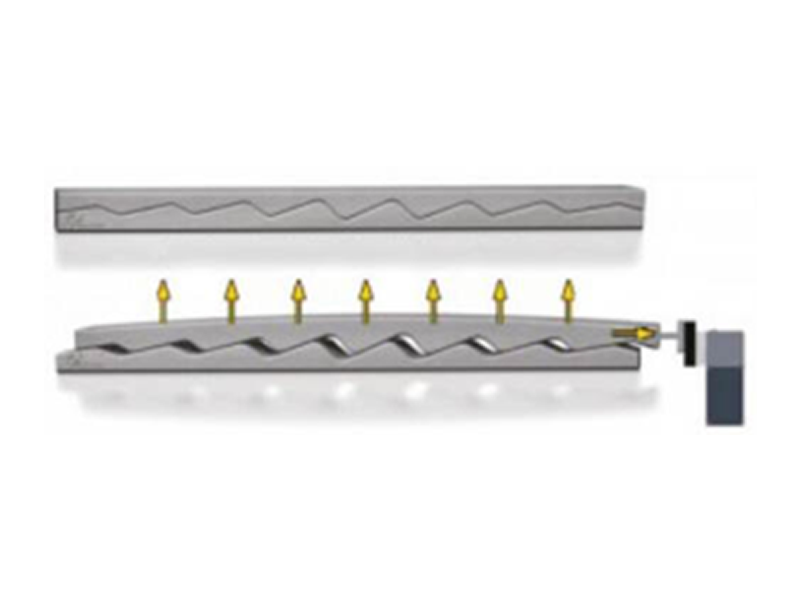

The mechanical compensation workbench adopts a unique wedge mechanism that has been processed and heat treated. The relative displacement compensation of each group of wedge blocks is designed according to the stress and deformation of the upper beam and the lower beam during work.

The mechanical compensation workbench adopts a unique wedge mechanism that has been processed and heat treated. The relative displacement compensation amount of each group of wedge blocks is designed according to the stress and deformation of the upper beam and the lower beam during work. The numerical control system calculates the compensation required for the upper and lower beams according to the load force when the workpiece is bent, and automatically controls the relative movement of wedges to effectively compensate the deflection and deformation of the upper and lower beams. The mechanical compensation mechanism greatly reduces the processing difficulty of the machine tool, is more advanced and reliable, has no leakage, and has more accurate accuracy control.
