Laser Safety for Press Brake

DSP® laser protection is the firsty choice for cnc press brake safty arrangement.

Technical parameters:

Class1M block laser emitter, multi-sensor photoelectric receiver, CE standard safety level up to CAT.4 and SIL3 protection distance up to 15M installed on the upper crossbeam, equipped with transistor output and relay output for selection.

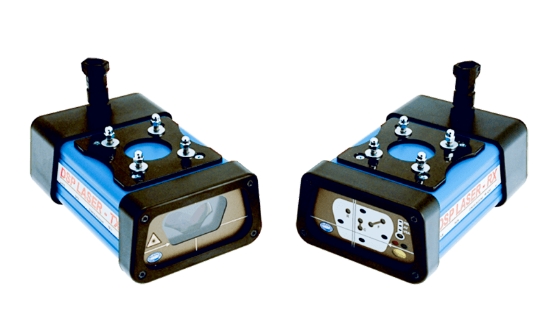

1.Class 1M Block Laser Emitter

2.Multi sensor photoelectric receiver

3.Compliant with CE standards

4.Security level up to CAT.4 and SIL3

5.The maximum protection distance can reach 15M

6.Installed on the upper crossbeam

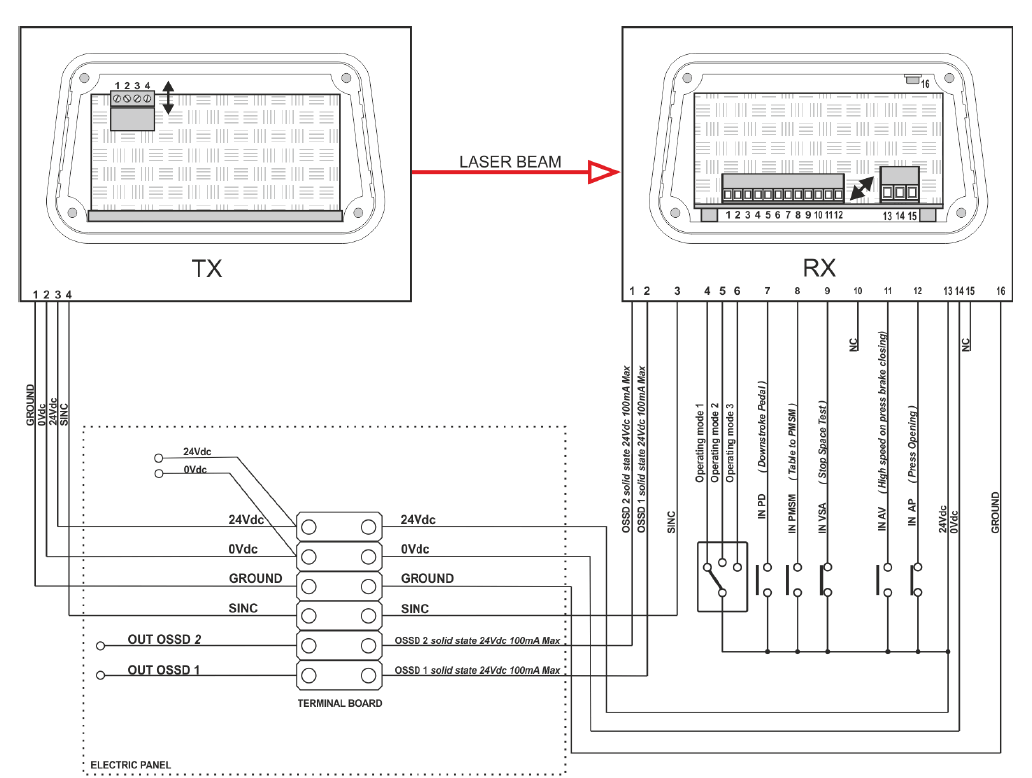

7.Equipped with transistor output and relay output for selection (in conjunction with AL2 module)

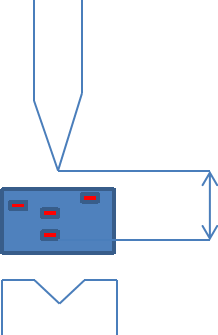

8.Protect the front, middle, and rear protection areas of the blade tip, which can shield the front and rear protection areas to achieve box folding function.

9.The shielding point can be manually adjusted and determined at will, making it convenient to set and providing continuous monitoring.

10.Box folding function (2 modes)

11.Speed conversion point: 5mm+stopping distance

Additional features:

Slow down shielding function

Stop distance detection function (mechanical)

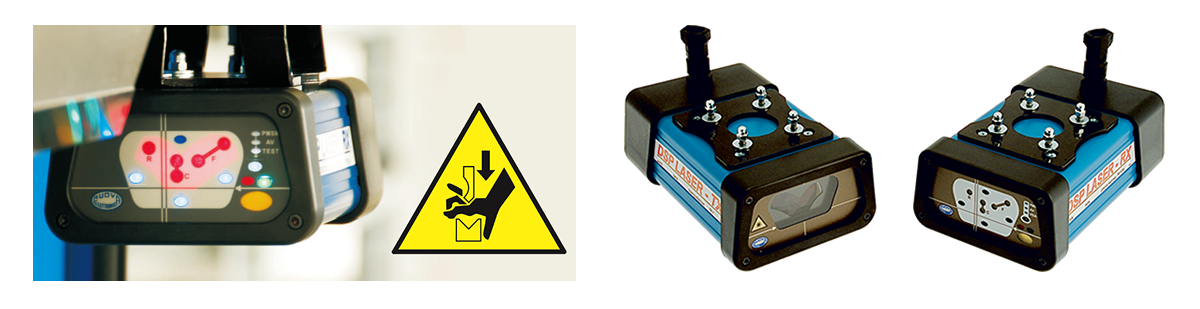

The DSP laser safety protection device fully protects the operators of the Press brake and avoids the danger caused by the rapid operation of the slider on the machine tool.
