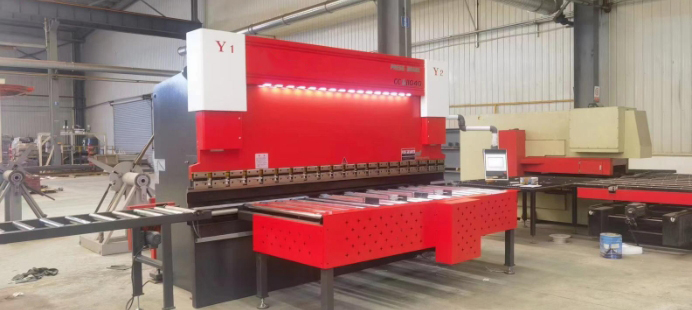

Automatic Press Brake for Steel Cable Tray

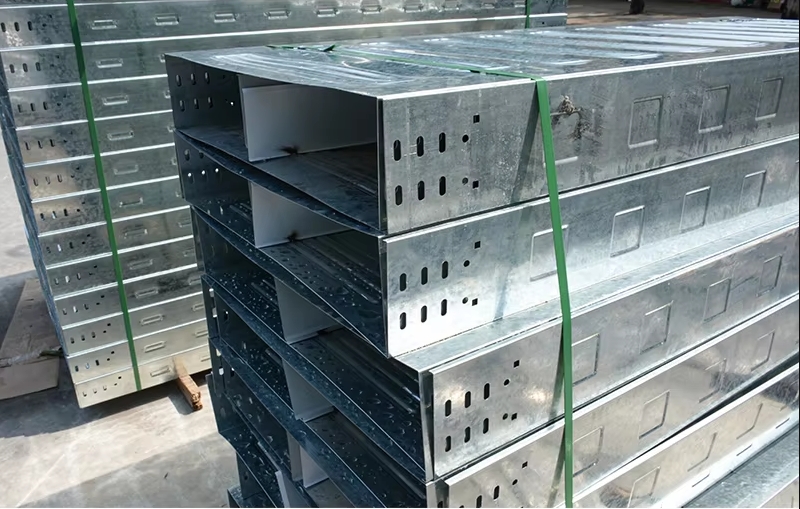

Bending  Cable Tray Capacity:

For Min Cable Tray :150x50x150  mm ,for Max Cable Tray Size:200x600x200mm

Automatic Press Brake For Steel Cable Tray Structure:

• All sections are engineered for minimal deflection and maximum rigidity, meeting international standards.

• A pair of hydraulic cylinders is synchronized by a heavy-duty torque tube welded to the levers, ensuring perfect parallelism between the cylinders and the table's working surfaces.

• The low-noise hydraulic system is built to international standards and features high-quality components from globally recognized brands.

• Valves are mounted on a specially designed compact manifold block, reducing the need for extensive piping and minimizing the risk of leaks. The large oil reservoir ensures effective cooling.

• A high-quality imported sealing kit prevents bore scratching in the event of seal failure. A backup seal provides additional protection, allowing the machine to continue operating at a slightly reduced pressure while awaiting seal replacement, minimizing downtime.




Automatic Press Brake for Steel Cable Tray Main Features:

1.Strong rigid torsion bar design, ensuring the synchronous movement of ram stroke.

 2. Built-in mechanical stop, ensuring an accurate positioning of ram stroke .

3. DELEM/ESA CNC controller, with high performance-price ratio, reliable performance and easy operation .

4. DELEM/ESA CNC controller controls X, Y, R axis to achieve high production efficiency and parts of precision .

5. Variable frequency motor or servo motor is used to get a rapid and accurate positioning.

Automatic Press Brake for Steel Cable Tray Frame

• Brand-new Rigid Design: Optimized through finite element analysis to minimize bending deformation and its impact on workpiece quality.

• Fully Welded Steel Plate: Ensures high vibration resistance.

• Modern European Minimalist Design: A new process design with an aesthetically pleasing appearance.

• Stress Relief Treatment: Stability is enhanced using a large tempering furnace or vibration stress relief to prevent frame deformation.

• Precision Machining: The frame is machined in one go using a precision floor-type boring machine or multi-face machining center to ensure the parallelism and perpendicularity of all mounting surfaces.

• Integrated "C"-shaped Plate Structure: Located at the throat of the frame, it directly measures the distance between the upper and lower molds, ensuring machining accuracy.

Slide Block of Automatic Press Brake for Steel Cable Tray Frame

• Upward-moving Bending Mechanism: Designed for low noise and stable operation.

• Reinforced Structure: A thicker and wider slide block minimizes deflection and deformation during bending.

• Universal Upper Die Mounting Surface: Allows for maximum compatibility with different tooling setups.

• Dual Closed-loop Control for Position and Pressure: Ensures high-precision bending with consistent quality.

Hydraulic System of Automatic Press Brake for Steel Cable Tray

• Utilizes an advanced fully closed-loop electro-hydraulic servo synchronization control system for precision and efficiency.

• Independent programming for Y1 and Y2 allows for operation under eccentric loads and conical bending.

• Programmable pressure-holding time at the bottom dead center ensures accuracy across different workpieces.

• Features slow return control, giving operators better handling and precision.

• Equipped with a high-precision Italian GIVI linear magnetic scale, a closed-loop position measurement system, and a guided system to support full-length and eccentric load processing.

• Uses high-quality SKF or NOK seals from Austria, along with durable hydraulic cylinders from Shanghai Heyan, ensuring excellent sealing and long service life.

• Hydraulic system pipes and connectors are imported for superior quality and performance.

• Built-in overload relief safety protection for added reliability.

• Clear and intuitive oil level display for easy monitoring.

• Designed for continuous operation under rated loads, with a leak-free hydraulic system that ensures stable performance and high precision.

Electrical System

The system uses high-quality electrical components from Schneider (France) and other internationally recognized brands. These components meet global standards, ensuring safety, reliability, long lifespan, and strong resistance to interference. The electrical control cabinet is designed with a cooling system for optimal performance.

For ease of operation, a movable foot switch is included, along with an emergency stop function for added safety.

The wiring inside the control cabinet is neatly arranged and clearly labeled, making inspection, maintenance, and troubleshooting straightforward.

Rear Material Stop System

• The rear stop offers high speed and precise positioning.

• The X-axis uses a ball screw drive and linear guide rail for smooth motion.

• It is powered by a digital AC servo motor with a retract function for added control.

• The stop fingers move left and right along the linear guide rail, providing easy operation and accurate performance.

• The innovative stop finger design allows each finger to be adjusted left and right with a handwheel, carefully engineered to prevent deformation or tilting.

• The fully enclosed rear stop is made of durable solid iron, ensuring excellent impact resistance.

• It features high-precision ball screws from Taiwan Hiwin or Silver.

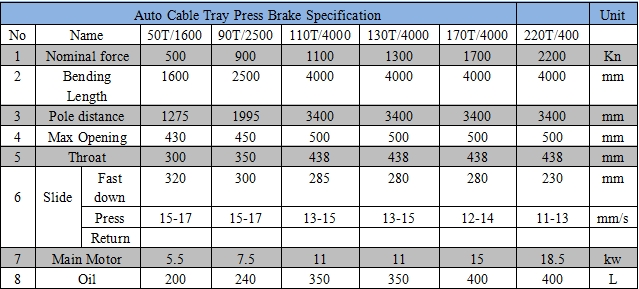

Auto Cable Tray Bending Machine Specification:
