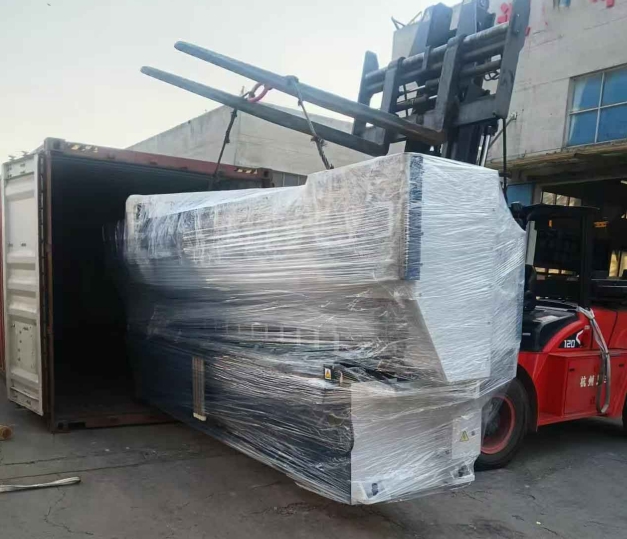

Ship CNC Vertical V Grooving Cutting Machine For USA Cleint

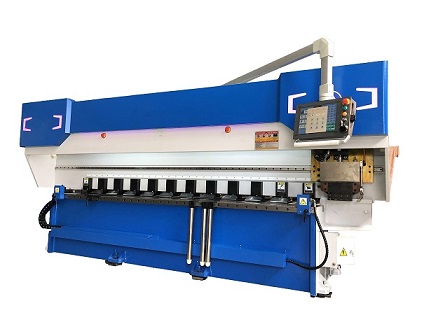

Vertical V Grooving Machine Description:

The grooving machine frame features a welded monolithic structure that is stress-relieved for minimal deformation and maximum strength. Its open control system supports additional expansion functions, enabling fully automated operation. Equipped with dual sets of eight cutting tools for reciprocating v cutting, it delivers high cutting efficiency. The machine incorporates internationally recognized control components, ensuring precision, high speed, and excellent dynamic response. A ball-bearing material support system prevents workpiece scratches, while the hydraulic pressure mechanism and clamps provide secure material holding and stable performance.

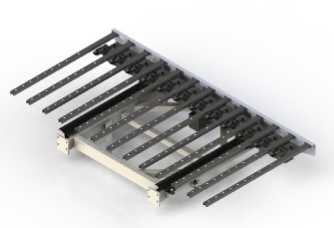

Back Gauge of  Vertical Grooving Machine

The dual linear guide rail structure of the rear gauge ensures excellent positioning accuracy, while the adjustable ball-bearing rear support facilitates smoother material feeding.

Hydraulic compression device:

reliable, efficient, pressure adjustable, with quick return using dual springs.

Hydraulic clamping device:

 floating clamping structure design, high precision, adjustable clamping force.

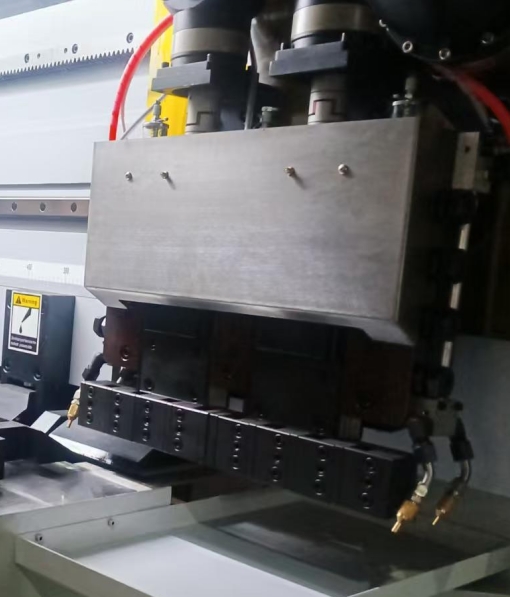

Double-Head, Bidirectional Frame Structure:

 The high-speed grooving blade holder features a ball screw drive for vertical movement, providing high repeatability and precision. It uses two sets of eight tools, enabling efficient back-and-forth planing. The tool holder operates with a gear and rack drive system, ensuring smooth, efficient planing and delivering a flat, even surface. An advanced chip-blowing system helps prevent damage to the workpiece.

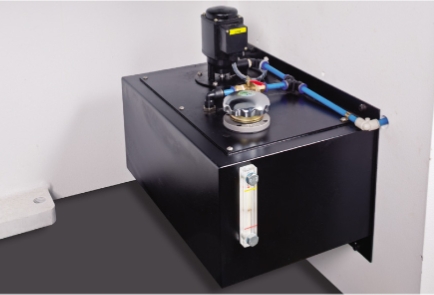

Water Cooling System:

Cools the blades, reduces wear, and extends service life.

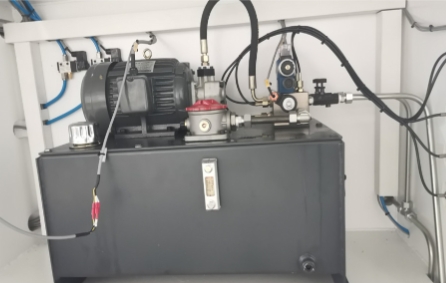

Integrated hydraulic station:

 Occupies less space, and has a low failure rate.

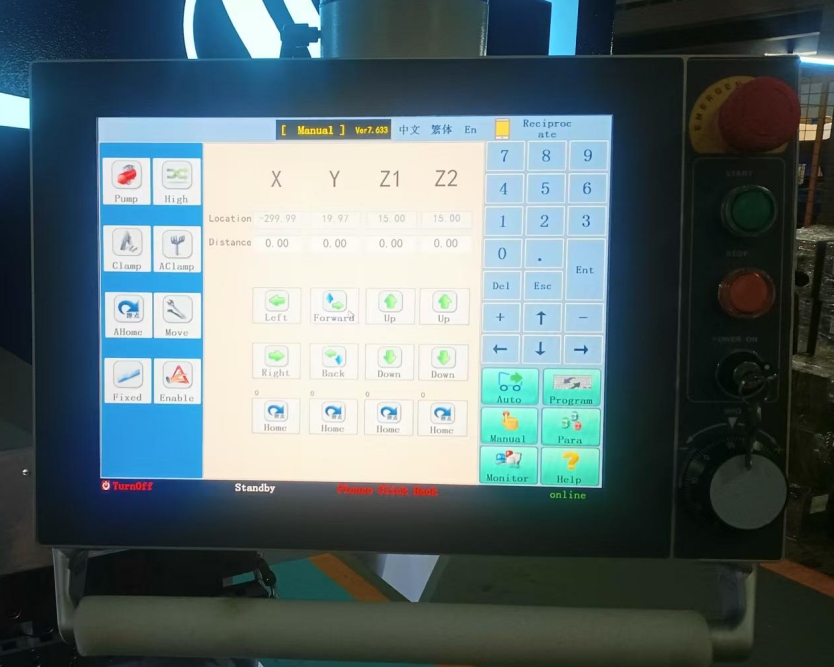

Taiwan Hust CNC V Grooving Machine Control System

• 15-inch touchscreen display

• Number of controllable axes: 4

• Number of axes that can be linked: 4

• Minimum setting unit: 0.01mm

• I/O: 132/032, expandable up to 512

• On-site programming: Parameter configuration

• Communication interfaces: USB/RS232/RS485/LAN/Wi-Fi

• PLC: Open architecture

• Power supply: DC24V

• Dimensions: 223.6 × 153.1 mm

• Operating temperature: +5°C to +50°C

Advantages of Verical V Grooving Machine:

• Suitable for stailess steel or aluminum plates with a thickness of 3-6mm.

• Ideal for grooving irregularly shaped plates.

• More suitable for aluminum plates: When placed horizontally, the surface of aluminum plates can easily become uneven. Using a horizontal slot milling machine may risk punching through the aluminum plate.

• Compared to horizontal models, this machine is relatively more expensive. When using a vertical slot milling machine, the user will need to move the plates around. It also requires more space and a specific layout.

• Offers high stability, strong rigidity, and ease of use.

• The CNC control system provides multiple parameter options, with large storage capacity and user-friendly operation. The system is 3-axis, with all axes driven by AC servo motors for high precision.

• The machine table is made from carbon tool steel. After heat treatment, it reaches a hardness of over HRC55. The surface has minimal wear and is replaceable.

• Features a 3-10 cutting structure, greatly improving both cutting efficiency and quality.

Vertical V Grooving Machine Parameters:

Vertical Grooving Machine Application:
The CNC grooving machine is ideal for industries that require high-precision plate processing, such as in the elevator, decorative materials, stainless steel fabrication, household appliances, and prop manufacturing sectors. Designed and built to meet the specific needs of high-end interior design, elevator production, and other specialized industries, this machine can create V-shaped grooves in materials like stainless steel, iron, copper, and more. The new model is equipped with special accessories, enabling it to perform additional tasks like grinding, polishing, and drawing on thin metal sheets and profiles. For unique workpieces that can’t be shaped using a standard bending machine—or those requiring a custom mold—this CNC stainless steel grooving machine offers an alternative. By controlling the depth of the V-groove, it allows even complex shapes to be bent using a standard die on an ordinary press brake machine.

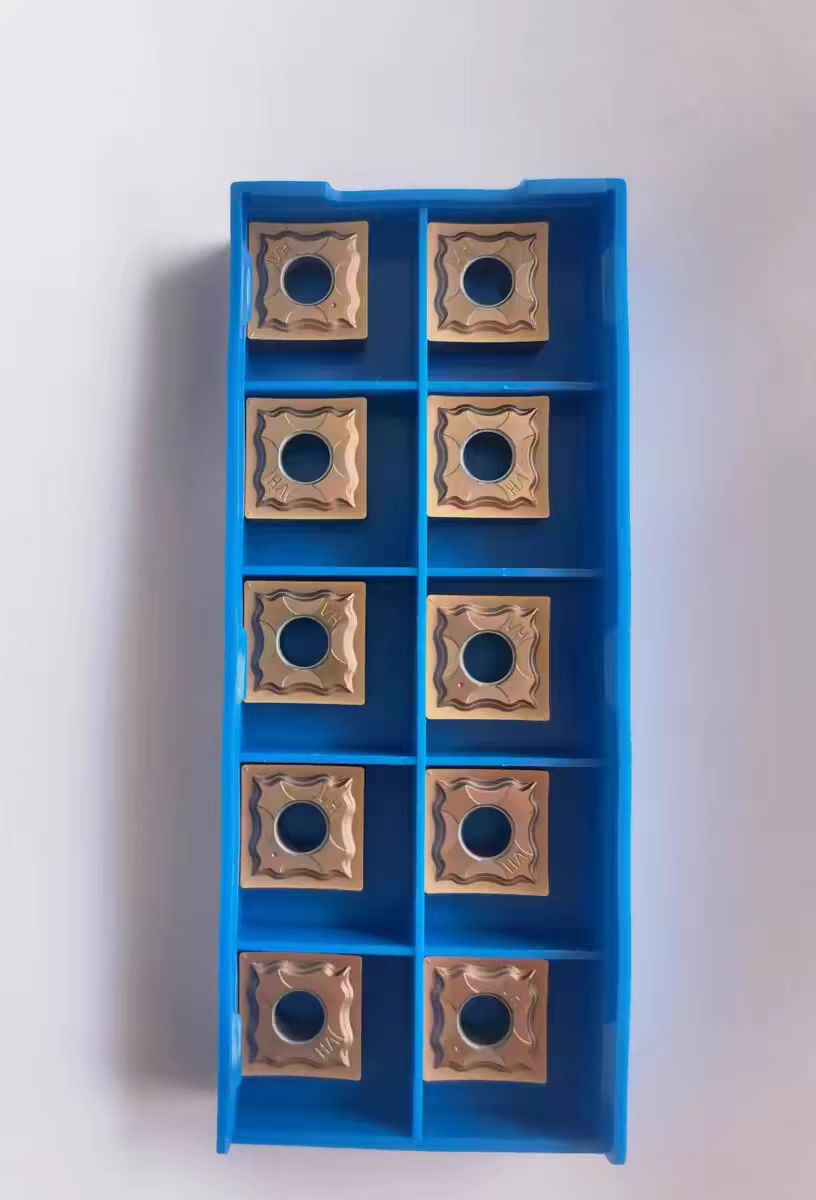

Vertical Grooving Machine Consumable Parts:

For the grooving  v cutting machine ,the blade is very important and it decided the v cutting workpiece quality.
