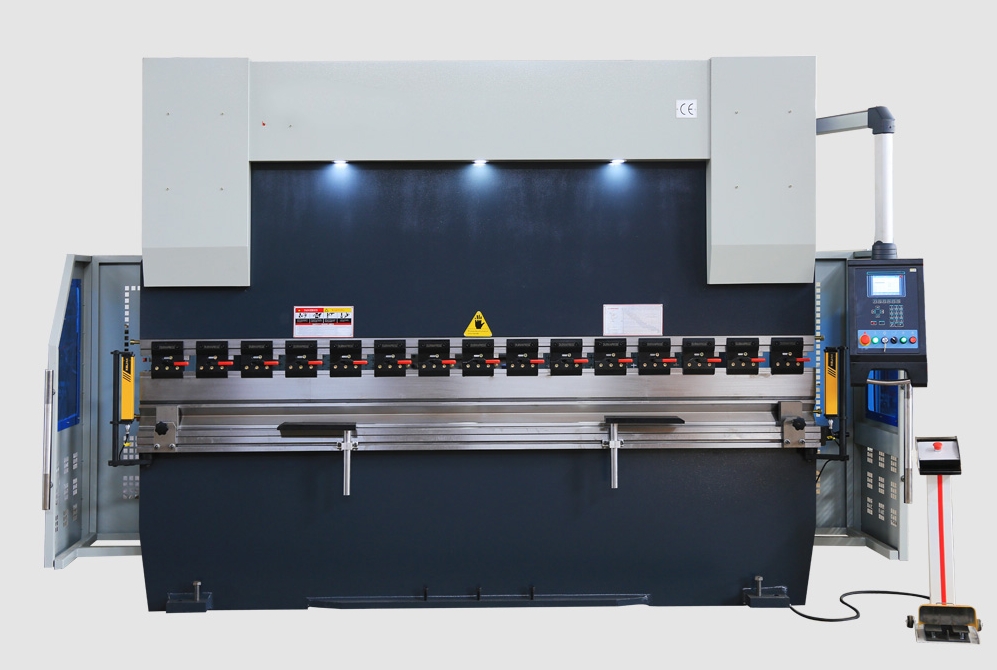

CNC Torsion Bar Hydraulic Press Brake 100T 3200mm

General Features:

The entire EU streamlined design, heat treatment frame, high rigidity workbench, optional mechanical compensation device for precise bending.

 Hydraulic synchronization control and Estun E200P/Estun E300/Delem DA41s programmable logic controller ensure precise repeatability and ease of use.

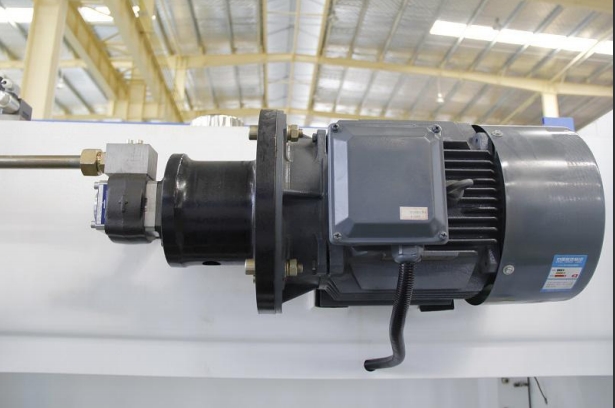

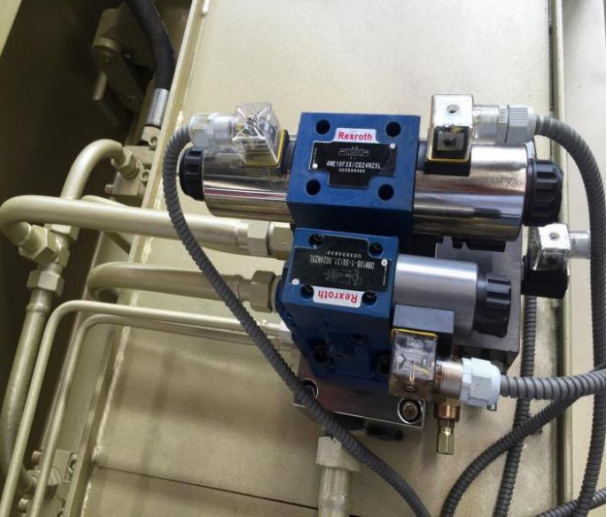

 The integrated hydraulic system (Bosch Rexroth, Germany) can quickly and automatically switch to a slow bend.

The X-axis and Y-axis are programmed by the controller and controlled by servo motor to achieve accurate positioning.

 Advanced variable frequency hydraulic control technology, with more stable, and more reliable operation.

 The optimal parameter ratio and optimal core configuration ensure stable performance and convenient operation.

 WC67Kseries press brake equipped with standard single-axis backgauge system (X-axis) and single-axis bending angle system (Y-axis), you can choose to add V-axis compensation function, and select the appropriate mold to easily bend the workpiece with complex shapes.

Technical specification:

Standard Components:

Main Parts Of CNC Torsion Press Brake

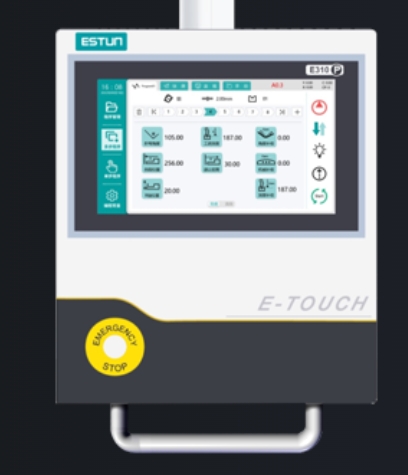

Estun E310P touch screen with color of high resolution.It can support X,Y,R and V axis.

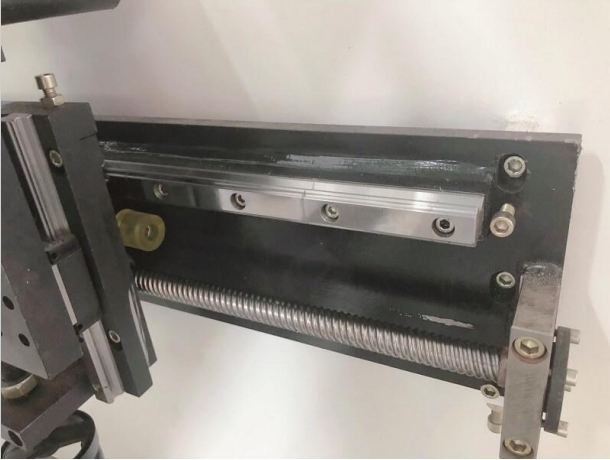

X and Y axis is driven by servo motor and servo drive with high precision and reposition.

It has raw materail and tooling library.Bending angle is prommable making bending more easily.

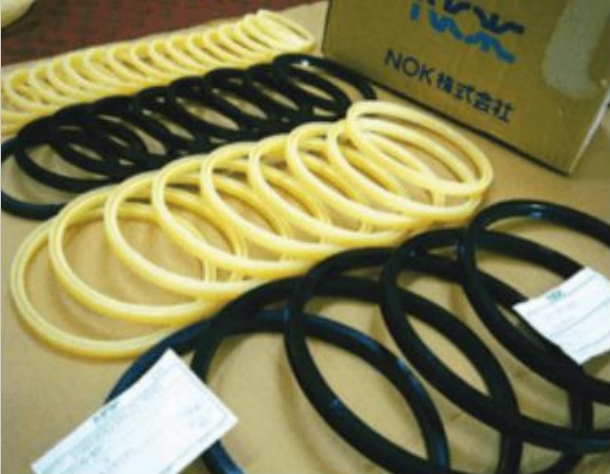

Japan NOK seal ring promise machineno oil leakage

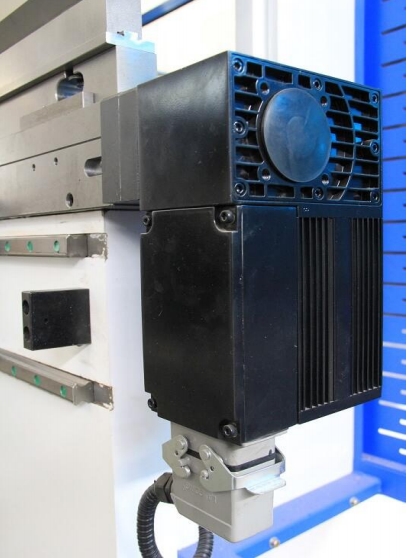

Mechanical crowning with motor for bending sheet metal workpiece in uniform.

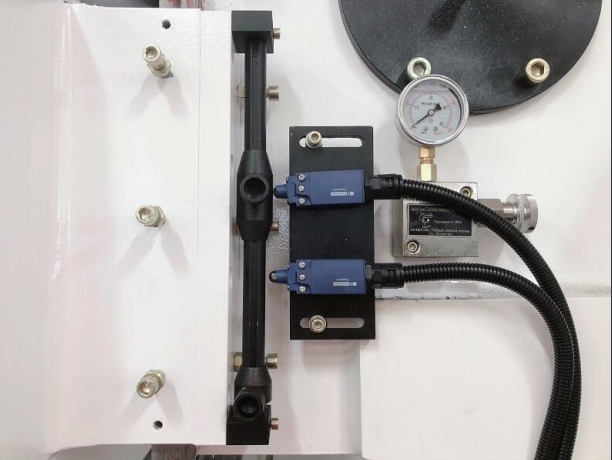

France Schneider Limit Switch for adjust the press brake ram stroke

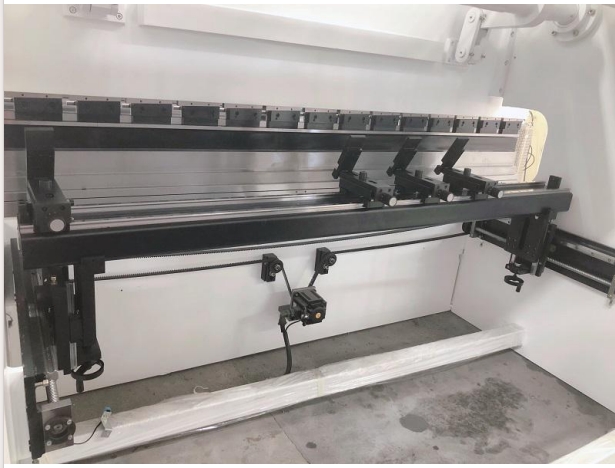

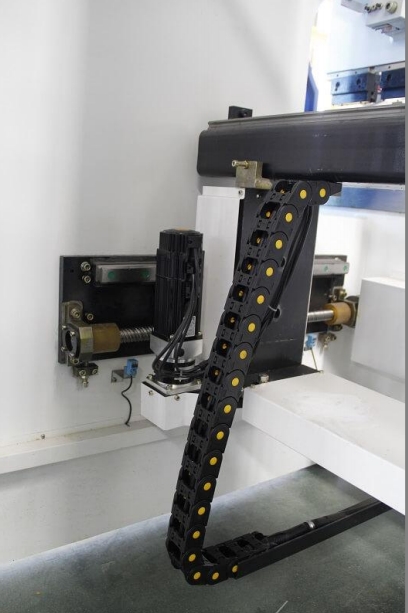

Backgague with X and R axis is for  bending complex sheet metal parts.

Passed ISO9001 Certification

High quality cabint,comply with EMC standards.

The main components are imported or well-known brands

Adopt the most advanced electric design software design

Advanced and reliable production and installation technology

It is manufactured by automatic  assembly line.
