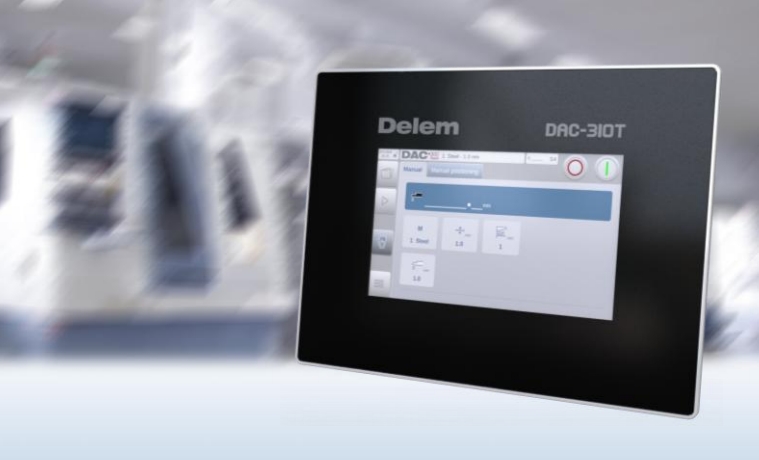

Introduction for CNC Guillotine Shear Machine Controls Delem DAC-310T

The DAC-310T is a compact touch control for standard shear application.It provides compact touch shear control solutions for a variety of functionality on modern shears.The DAC-310T

control provides a user freindly and compact touch control solution for standard shears.Including back gauge control,cutting angle,gas and stroke length limitation based on state of the art electronics.

Next to back gauge control,the DAC-310T automatically calculates the required setting for cutting angleor gap depending on materail properties and thickness.The stroke length is  optimized based on the required cutting length,thus increasing productivity.

The back gauge control supports servo control,1-or 2 speed AC control as well as inverter control.

Depending on the application you can select either two-side positioning or single side positioning,using optional spindle correction functionality.

With its easy to use touch screen navigation on the bright LCD screen,operation is most user-friendly.The numerical programming with clear icons guides the operator through all programming functionalities.

DAC-310T Featuring:

* Panel based housing

* Bright LCD Screen

* Back Gauge Control

* Retract function

* Cutting angle or gap control

* Stroke length limitation

*Manual movement of axes

*Stock count

DAC-310T configuration:

*Colour LCD display

*7" widescreen TFT

* LED backlight

*Programm memory for 100 program

* 25 stpes per program

Technical Specification General

*Program library

*Millimetres /inch selection

*Power-down memorisation

*Machine hour counter

*Stroke counter

Axes

* Back gauge control

* Stroke length limitation

*Gap control

*Angle control

*Stroke 0-9999.99mm

*Retract 0-9999.99mm

*Correction0-9999.99mm

*Retract programmable

*Manual movement of axes

Digital inputs/Outputs

*Flexible I/O configuration

*8 inputs/8 outputs

Programming functions

*Numerical program setup

*Back gauge position

*Retract function

*Angle programming

*Gap Programming

*Step repetition

*Materail types/properties

*Thickness

*Axis speed

*Stock counter

Computed Functions

Angle or gap value

Stroke length limitation

Integrated functions

Diagnostic mode

Service mode

Backup and update via USB

Electrical/Interfacing

Power supply:24V

Opto-isolated digital I/O

Encoder inputs(5V/12V)

Max.encoder frequency 1MHZ

USB Port

Axis control

+/-10V  for servo control

1 or 2 -speed control for AC motors

Frequency inverter control

 Housing

Panel based housing

Dimensions 186x252x45mm

Miscellaneous

Operator selectable diaglogue

Languages
