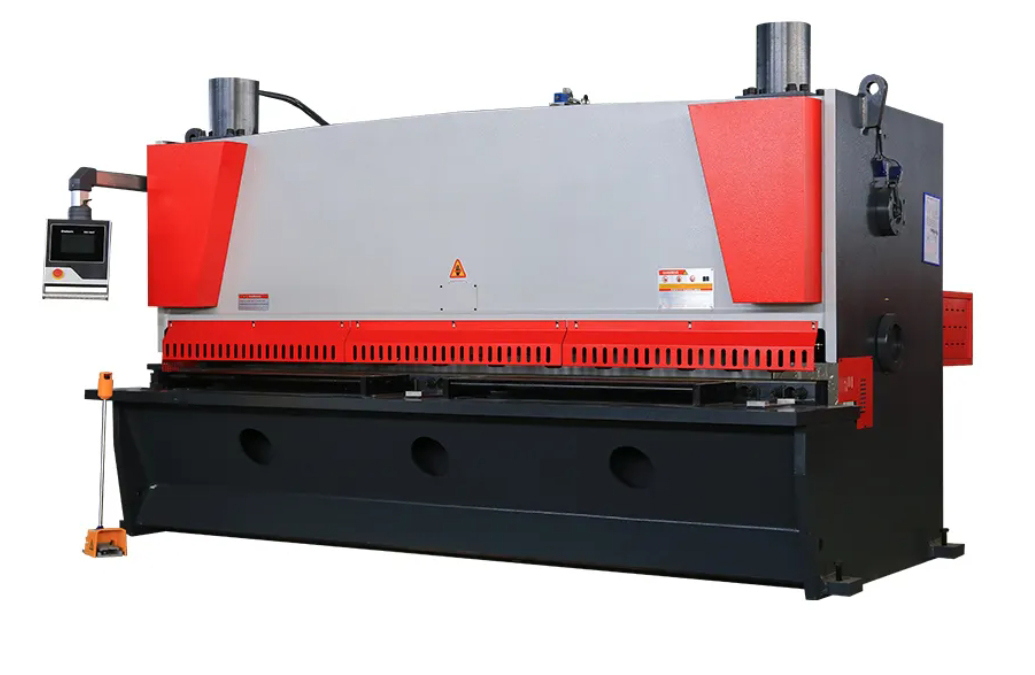

Hydraulic Guillotine Shearing Machine with DAC-310T

Guillotine shear standard configuration:

1.Hydraulic guillotine structures.

2.Clip-and- sleeve system.

3. Automatic clearance gap adjustment

4.Automatic Cutting angle adjustment by motor,back-gauge controlled by motor and display in CNC system.

5.Blades material 6CrW2Si

6.Safe pedal

7.Hydraulic system:Rexroth,Germany .

8.Motor: Siemens.

9.Pump: Chinese famous brand.

10.NOK Japan layer seals for main cylinders.

11.Schneider main electrics.

12.With Holland DAC 360

13.Light alignment device

14.Back doors with safety light curtain.

15.Electrical cabinet with ABB switch power outage.

16.Sectional blades

17.Servo Motor and Driver:YASKAWA,Japan.

18.The back-gauge is balls screw and liner guide.

Features:

1.DAC 310-T Go-To Programmable digital control provides up to 750mm travel on hardened ballscrew back-gauge allowing operator to program the cut length required. Also fitted is a stroke counter & stroke adjustment dial allowing shorter materials to be cut using a shorter stroke length, this feature will increase production.

2.Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping cylinders along full length of machine.

3.Adjustable hydraulic variable blade rake system via control panel 0.5˚-1°30'

4.Control box mounted higher than standard on side of machine to protect it from material damaging the control unit due to heavy material loading on sheet supports prior shearing.

5.Simplified blade gap adjustments to allow for a wide range of material types and thicknesses of 0.7 - 6mm enabling minimised distortion of the cut length.

6.Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.

7.Top shearing blade made from 6CrW2Si quality composite and has two (2) cutting edges allowing minimised down time in blade rotation.

8.Bottom shearing blade made from 6CrW2Si quality composite and has four (4) cutting edges allowing minimised down time in blade rotation.

9.The core structure of the steel main frame has been electronically welded ensuring maximum penetration during the manufacturing process. In addition to this feature the cutting beam has been stress relieved eliminating any distortion after manufacturing.

10.Shadow line lighting has been incorporated into the machine frame providing a clear cutting line on the work piece and enabling scribed or marked material to be cut with simplicity as required.

11.Heavy duty squaring arm is fitted with a graduated rule and adjustable flip up front stops allowing operator to cut to measure from the front of machine. Flip over stops can be set to repeat cutting length required with accuracy. The arm also aligns the material to be located square to the cutting edge.

12.Safety reset button for guarding system located at rear of machine, this feature requires operator to walk to rear of machine to visually check for any obstruction prior to resetting & starting machine

13.Mild steel capacity is rated on hot rolled material with 250MPA

Includes:

1.DELEM DAC 310-T go-to programmable hardened ballscrew back-gauge 750mm travel with fine adjustment

2.Adjustable hydraulic variable blade rake system via control panel 0.5˚-1°30'

3.Heavy duty over driven machine construction

4.Rapid blade gap adjustment

5.Emergency stops fitted on both ends of machine for additional safety

6.Individual hydraulic hold downs with nylon pads

7.Shadow line lighting allows operator to quickly see the cut line

8.Swing away back-gauge function for cutting long sheets

9.4 edge quality 6CrW2Si blades suitable for stainless steel

10.Taiwan hydraulic valves

11.Telemecanique electrical components(Schneider)

12.Transfer balls on table & support arms

13.Heavy duty support arms and squaring arms

14.Stroke counter and short stroke adjustment

15.Sliding chute with ball transfers inserts for cut pieces

16.Three safety photo electric light beams on rear guarding

17.Optional Pneumatic sheet supports MODEL available

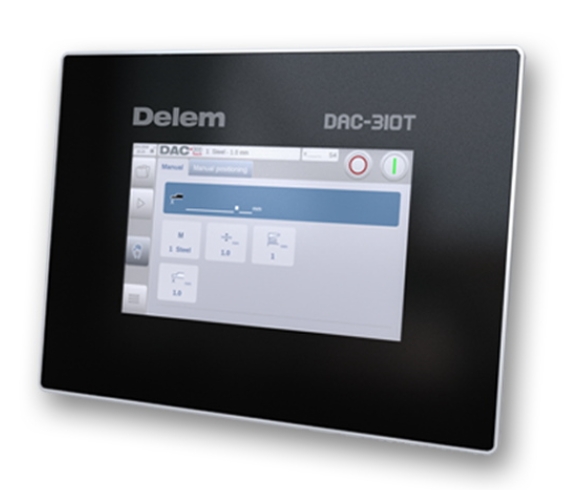

Compact Shear Controls：

Panel based housing

Bright LCD screen

Back gauge control

Retract function

Cutting angle or gap control

Stroke length limitation

Manual movement of axes

Stock countMain Specification
