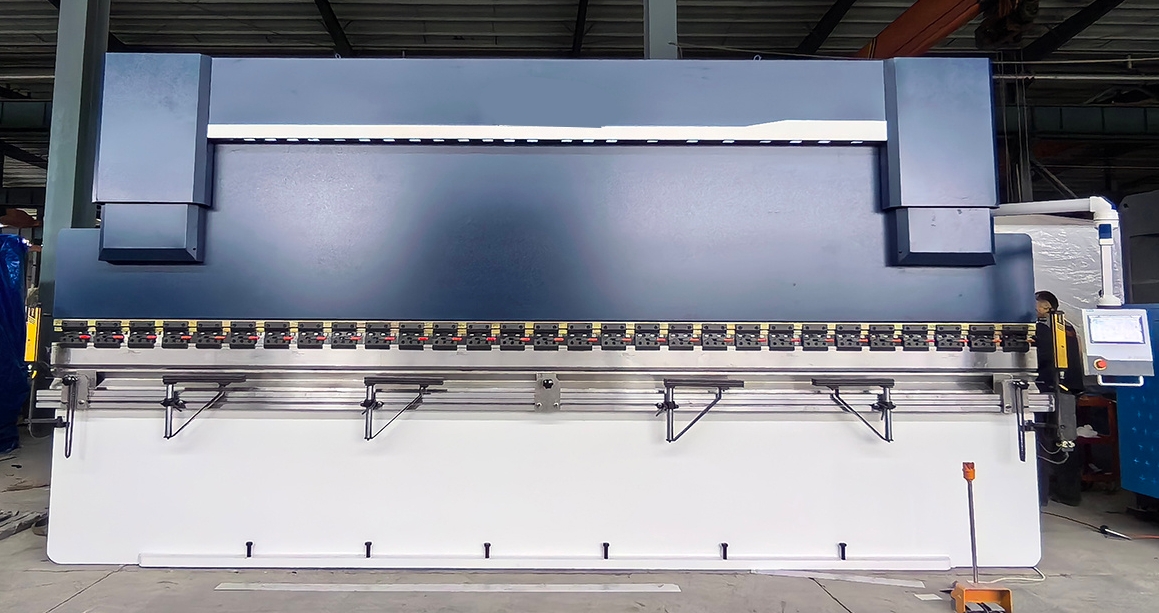

WC67Y-250T6000 Hydraulic Press Brake With E310P for bending long sheet metal

Description:

Our NC Type Hydraulic Press Brake's main power is hydraulic transmission.The left hydraulic oil cylinder and right hydraulic oil cylinder are balanced by a heavy torshion bar.The machine is full steel welded,proceeding on big cnc milling machine and boring machine one time shape.All key parts are heat treatment for long durability.After machining ,welding ,forming ,the machine is stress reliefed for mini deformation.

Machine backgauge is made of high-strength steel ,provided X,R and V axis control for accurate ,repeatable sheet positoning.Z axis can also be powered by motor.There are sixes pces stop fingers for postioning your steel metal.

The 250ton 6000mm length press brake is fitted with mechanical express clamping.You can take apart the press brake punch both from vertical or from horizontal.

The press brake up punch is 1000mm x6 pcs in segment .The low die is wholly block of 6000mm length multi-Vee die.You can change for different low die V open by chain on  the ram for bending different thickness steel .The low die can also match low die seat for install segment low die set.

The working table installed automatic crowning for bending long plate iniform.It is controlled by the controller E310P.Make your bending easily.

Front table is big width.There are four front materail supporter mounted on the low plate on T slot.It can move smoothly.The front support can also adsjut up and down.

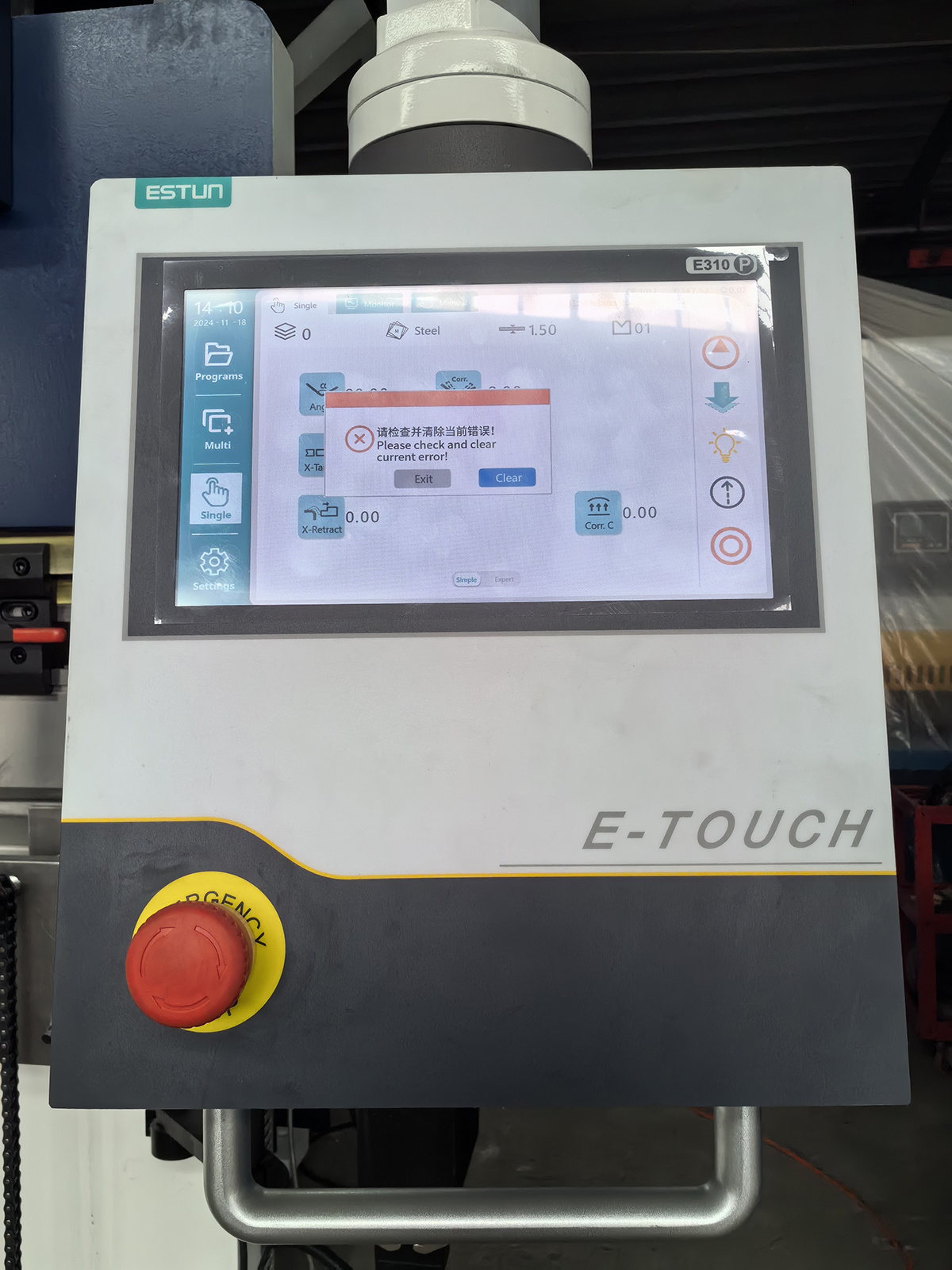

WC67Y-250T6000mm Press Brake Controller System:

The advanced controller E310P is full touch screen of high resolution with color.X ,Y and R axis are runned on servo motor.Accurate angle programming and calculation function, tools library and material table, improve the accuracy of anglecalculation.Crowning  supports both mechanical and hydraulic type.USB interface for backup and upgrade.

Tool library and material library makes bending more easily.Bending parameter backup and restore function is very helpful.Metric and imperical is changable.

Chinese and english optional.

*The control function is improved and supports the servo axis control of X, Y and R axes,T

*two modes of crowing-axis hydraulic and mechanical.
*Built in parameter backup and restore function to reduce service cost
*Resistive touch screen, stable and reliable, long work life
*Integrated housing , ergonomic design, convenient operation, beautiful and easy installation .
*One page programming, concise and clear，quick programming page, easy and fast operation
*Advanced CAN bus servo control technology is adopted, with simple wiring, fast positioning speed and high precision
*10 " color LCD touch screen, which can be switched between Chinese and English, and two units of metric and British system are optional
*Built in machine control logic，Logic free configuration of hydraulic valve group，I / O function ports are freely configured to simplify External circuit.
*Accurate angle programming and calculation function, tools library and material table, improve the accuracy of angle calculation
*The standard USB interface can backup of parameters and programs and online upgrade of system software
*ETS / Pronet series servo is equipped , with superior performance and stable quality
*Safety zone protection, collision detection,R-axis collision.

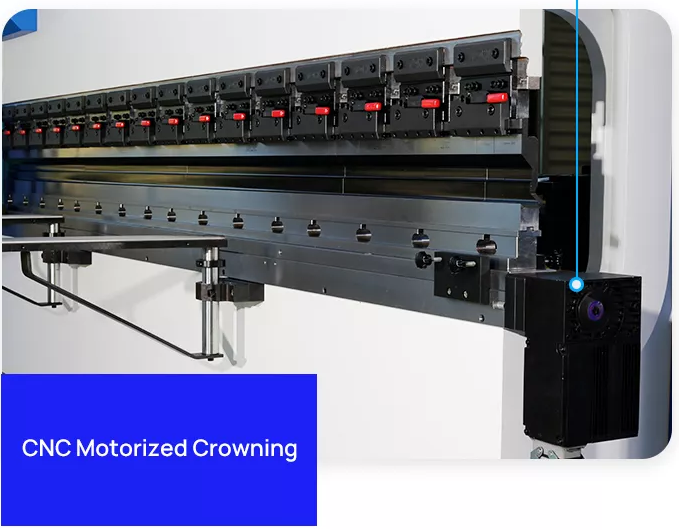

CNC Motorized Crowning:

When bending long sheet metal,the ram always bows upwards in the centre.The punch in the middle will be farther away from the low die.

Crowning raise the table to keep rhe die at a constant distance from the ram.Should we an incrorrect or no crowning,the distance bewteen punch and die will vary along the profile.With an insufficient compenstation,the angel will be more open at the centre,conversely,it will be too closed.

For this reason,to compensate the machine deformation basing only upon the theoretical sheet metal characteristics results in time losses and materail waste.It is better to measure and then compensation in real time,without taking a chance.

Standard configuration:

1.Double cylinders control ram moving upward and downward.

2.Right-and-lift balance achieved by torsion synchronization.

3.NOK Japan layer seals for main cylinders.

4.Schneider key electrics.

5.Upper tools fast clamps.

6.Standard front supports arms.

7.Motor:Chinese famous brand.

8.Oil pump:SUNNY.

9.Hydraulic system:Rexroth,Germany

10.Clip-and -sleeve pipe system.

11.The six fingers of back-gauge for 6000mm length machine.

12.Electrical cabinet with ABB switch power outage.

13.With safety side door and back doors.

Main Specification:

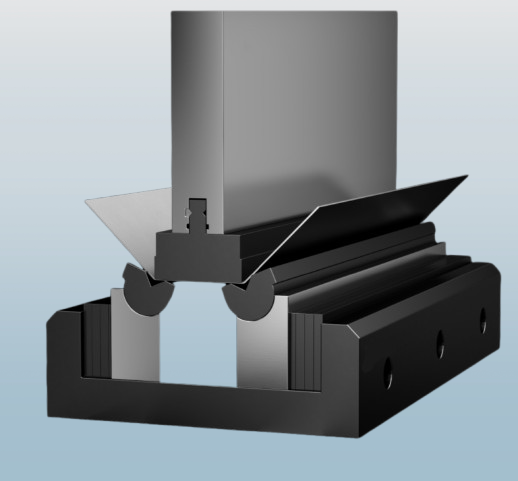

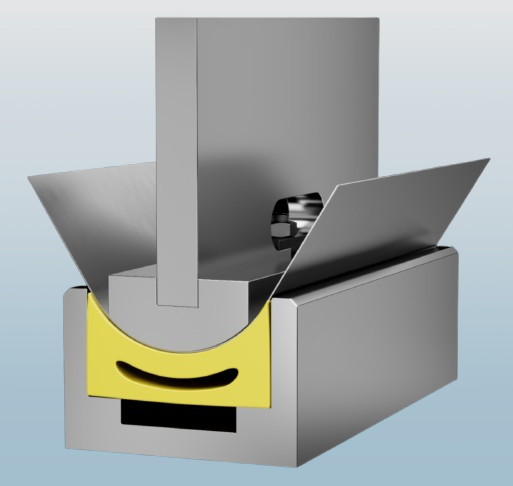

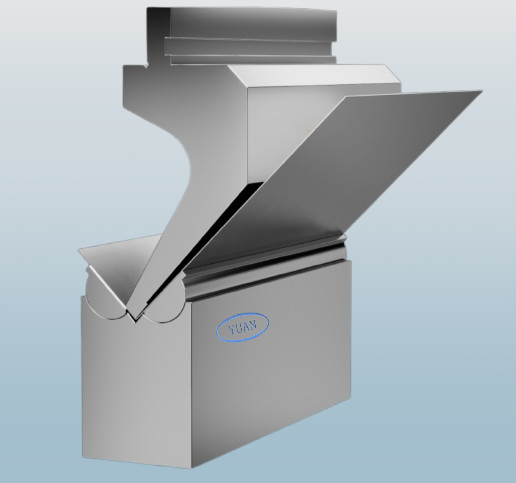

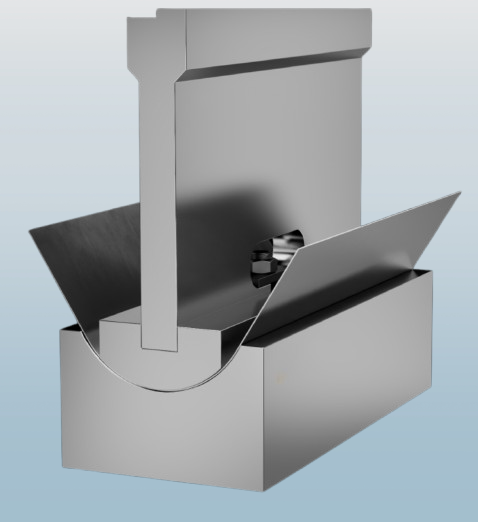

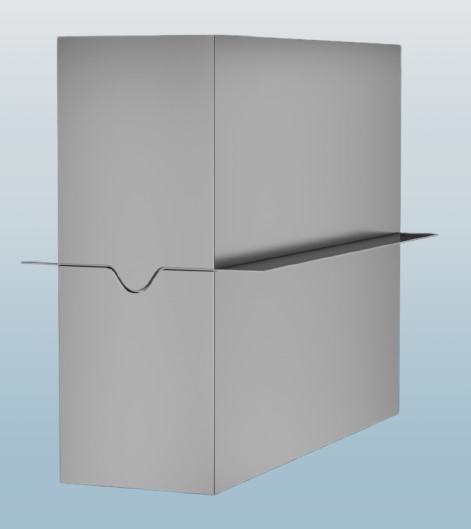

Optional Press Brake Tooling:

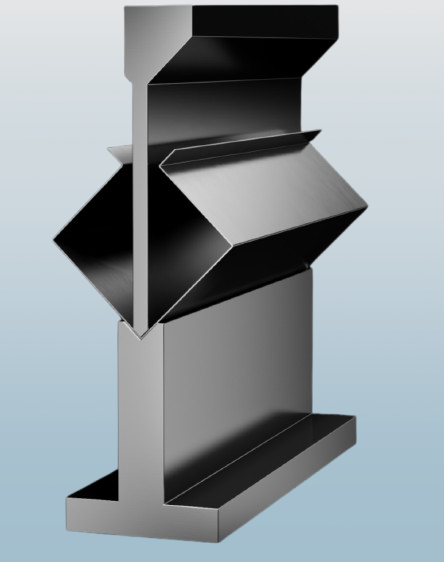

Our press brake supports a wide range of punch and die for various bending application.

Optional Equipment:

1.Controls:ESA,CYBELEC,DELEM

2.DSP Or Akas Laser Protection

3.Cooler

4.LNTECH rear curtain
