WC67Y Hydraulic Press Brake 63T 2500mm for Bending Sheet Metal

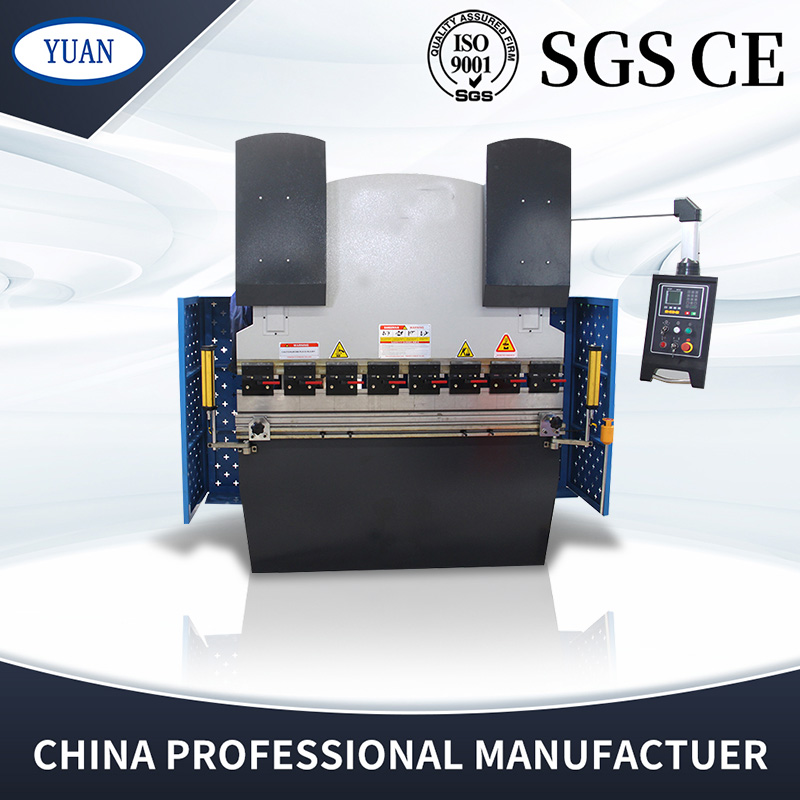

The WC67Y series NC Hydraulic Press Brake Machine is optimal for bending sheet metal parts with low operation cost.The WC67Y series NC Press Brake Machine has torsion bar synchronous NC two axes control capability just  like our large press brake.The 63 Ton 2500mm hydraulic press brake can bend 3mm mild steel ,2mm thickness stainless steel,5mm thickness aluminum plate ,2500mm full length.

Feature:

1.Hydraulic / Mechanical ram, synchronised positive stop design, ram stroke controlled by precision mechanical nut depth stops built into each cylinder. Electronically controlled by Estun NC-E21 Programmable digital control assuring accurate repeatability.

2.Parallelism is ensured by torsion bar that can be easily adjusted by clutch system.

3.Estun E21 programmable digital control stores up to 40 unique programs with 25 automatic progressive bending steps in each individual program, assuring production accuracy & repeatability every time.

4.EstunE21 programmable hardened ballscrew back-gauge system, simply enter the desired measurement into the controller and press go, the backgauge then will move quickly into the position you have requested. The superior hardened ballscrew system eliminates any backlash that leadscrew type machines produce.

5.Segmented heavy duty 86° offset top punch is segmented for return bend clearance, complete with European style punch holder with an adjustable wedge clamping system for crowning. Intermediate clamp has safety key to stop punch dropping.

6.Multi vee ('V') bottom die is made from one 2500mm solid die block design to handle heavy plate, safety edge vee ('V') is incorporated in bottom die block.

7.Conveniently mounted control box on pendant for quick swivel and adjustments.

8.Mono-block steel frame design, welded then machined to ensure minimal bed deflection under load

9.Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.

10.European Intermediate clamping system, allowing operator to change position of tooling to suit multiple requirements on complex applications. This feature ensures minimum down time, more productivity and results in reduced cost per finished product.

11.Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height. This feature is achieved with a "T" slot machined down the total length of the die bed sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.

12.Adjustable sliding blocks control the machines beam to provide desirable open height distance to the (slow speed) mute bending point. Operator adjustable locking knobs for quick adjustment, enables accurate repeatability and increased productivity.

13.Metal safety guarding surrounding the machine with rear sliding door fitted and micro switch ensuring operator safety. Clear access panels placed at each end of machine allows the operator to clearly view tooling and work piece during bending operation.

14.Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accurately set the pressure required for different material thickness, incorporating with hydraulic overload protection.

15.Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.

16.The vertical supporting slides are treated to provide greater ware resistance and increased accuracy.

17.Reinforced side frames providing addition support strength to machine throat

18.Mild steel capacity is rated on hot rolled material with 250MPA

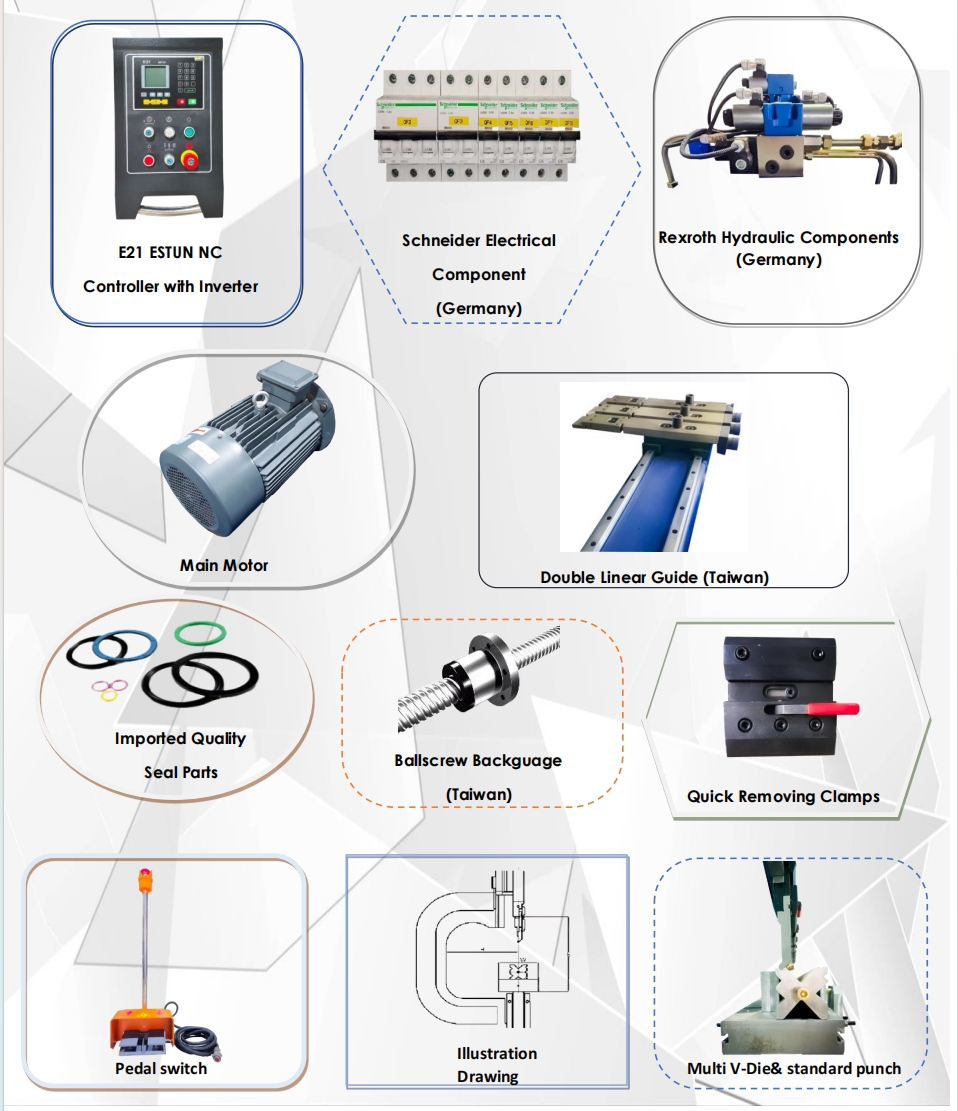

Standard Hydraulic Press Brake Configruation:

1.Estun E21 NC control system

2.Plate Support Arms.

3.Germany Bosch-Rexroth Hydraulic Valve

4.Germany Siemens Main Motor

5.Schneider Electrics

6.Hydraulic&Electrical Overload Protection

7.Standard Top and Bottom Tooling (86°,R0.6mm)

8. Powered Depth Y-axis &Back Gauge X-axis

9.HIWIN Ball Screw&Polished Rod With 0.05 mm accuracy.

NC Press Brake 63 Ton Specification:

Optional controller:

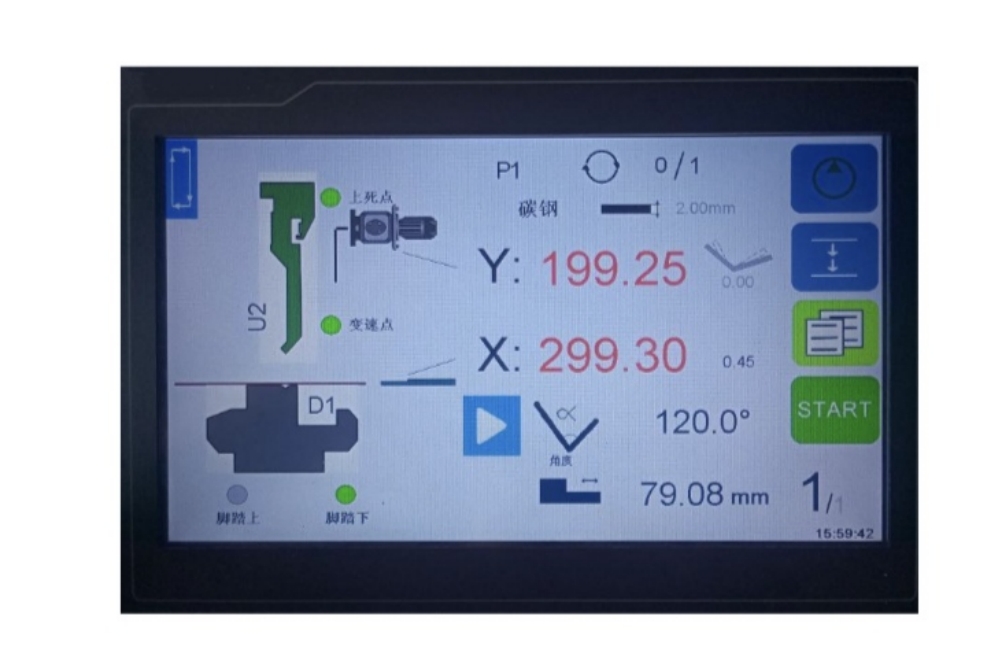

Tp10s is an new chinese controller ,10 inch high resolution touch screen.It is easy to operate for new learner.

Just input raw materail ,thickness ,bending width ,bending angle.It has product library and tooling library.

It is servo control for y and x axis ,which means high precision.The Tp10s can match with auto mechancial crowning system ,this helps bending plate in good

straightness.

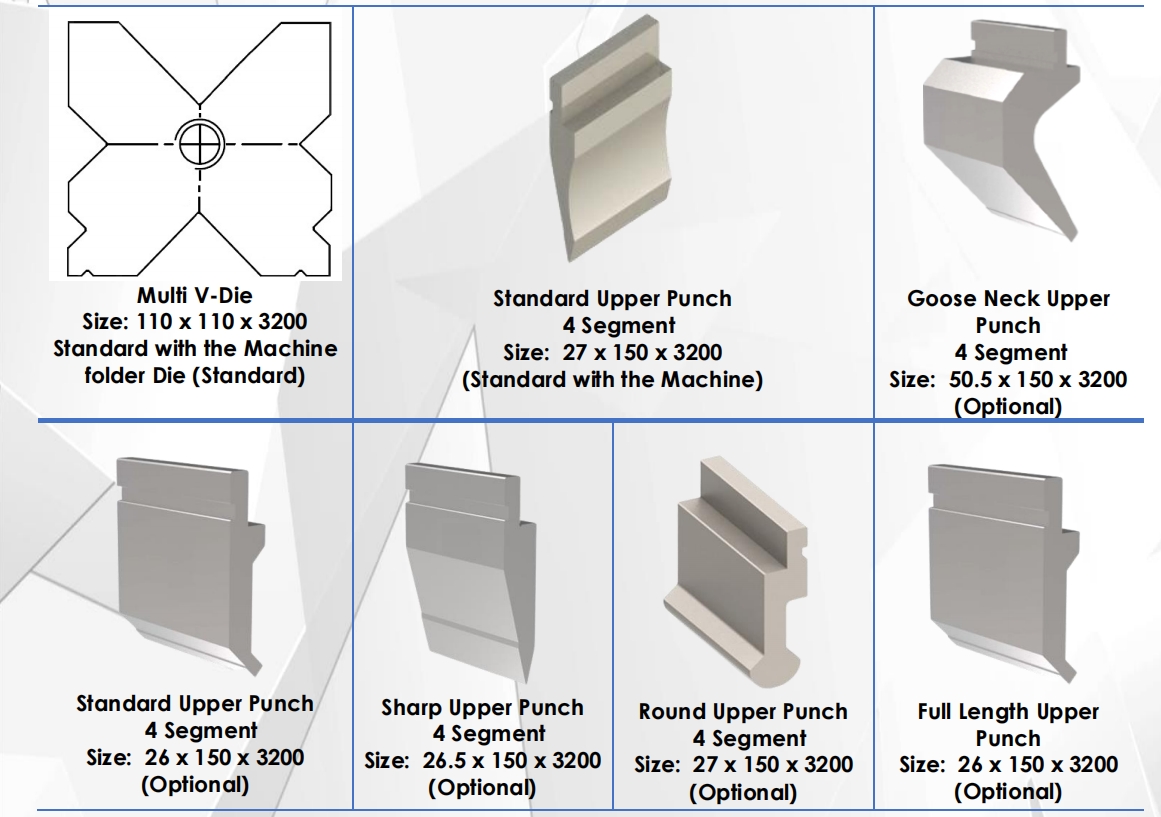

Optional Press Brake Tooling:

Optional helpful equipment :

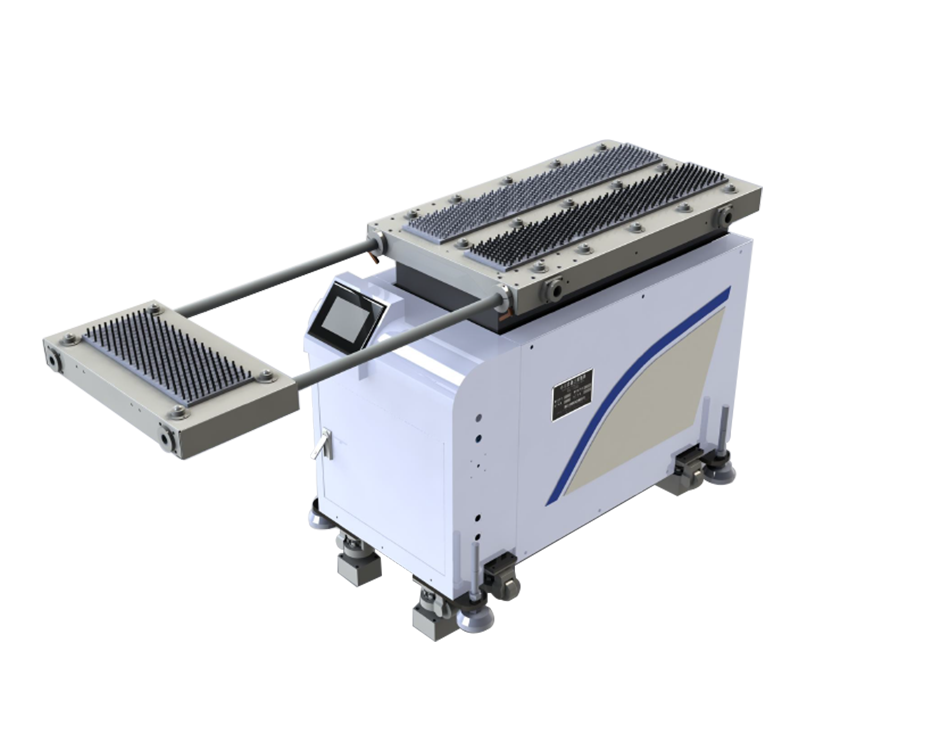

If your raw materail is thin and long size ,you can match with a 100kg capacity press brake sheet follower to support the materail.

Equipped with a press brake following car ,it minimized the effects of reverse bending.The following support is equipped with a brush table to prevent plate sheet from being scractched ,slipped or dropped.

It suits for all kinds of large sheet metal,especially thin and lagre plates,which recuce the operator's work of moving heavy plate,improve bending efficiency and reduce efficiency and reduce risk for operators.

Communicating with the control system,it perfectly maintain 100% synchronization with the Y-axis during the bending process.

Bending as close as 60 degree.

Load capacity 100kg/ 200kg/300kg each one.
