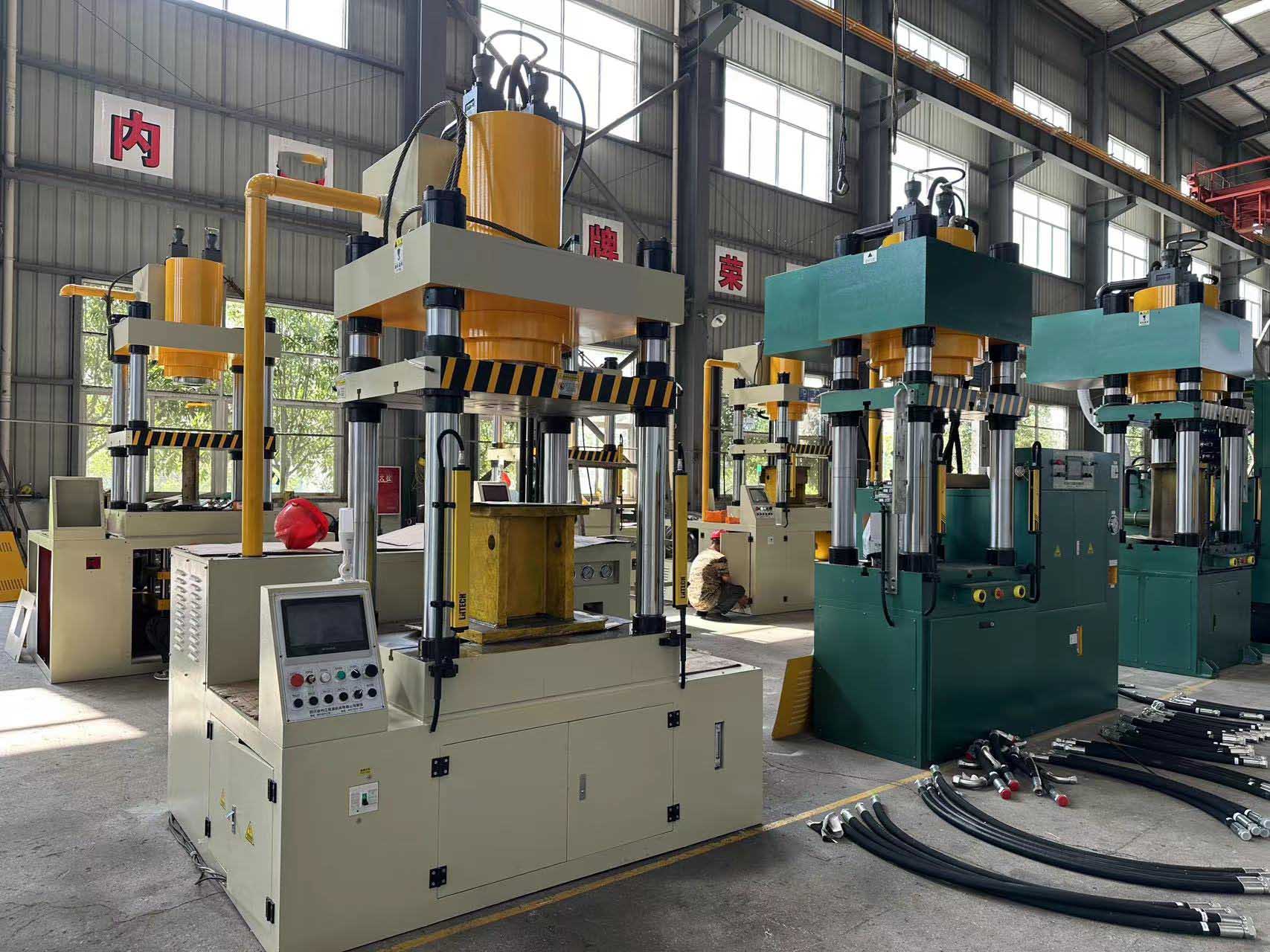

YHQ-28 Series Products Features:
*Main hydraulic cylinder is made of integral forging and it's inner surface is precision ground.
*The four column are made of high-strength materail,with the surface coated in hard chrome,offering good wear resistance.
*Uses and advanced two -way cartridge valve oil circuit,resulting in fewer hydraulic system failures,high reliability,and minimal directional switching impact.
*The moving slide has a fast idle travel speed,resulting in high production efficiency.
Hydraulic deep drawing press configuration:
Hydraulic Deep Drawing Press Configuration | |
Item | Standard/Optional |
Photo-electric safety device | Standard |
Water cooler | Standard |
Counter | Standard |
Maintaining Function | Standard |
Ejector in the moving slide | Optional |
Movable control panel | Optional |
Touch Screen | Optional |
Foot Pedal | Optional |
Buffer device | Optional |
Displacement transducer | Optional |
Servo system | Optional |
Oil cooler | Optional |
Parameters；
Model | YHQ28-120 | YHQ28-150 | YHQ28-200 | |
Nominal capacity | 80 ton | 100 ton | 150 ton | |
Stroke of main cylinder | 400 mm | 500 mm | 500 mm | |
Edge pressing cylinder | Capacity | 40 ton | 50 ton | 50 ton |
Max stroke | 200 mm | 200 mm | 200 mm | |
Max distance between slide and working table | 800 mm | 900 mm | 900 mm | |
Min distance between slide and working table | 400mm | 400 mm | 400 mm | |
Fast descending speed | 320 mm/s | 320 mm/s | 320 mm/s | |
Pressing speed | 25-35 mm/s | 25-40 mm/s | 25-40mm/s | |
Return speed | 280 mm/s | 280 mm/s | 280 mm/s | |
Effective working table | 500x500 mm | 600x600 mm | 700x700 mm | |
Motor Power | 15 kw | 18.5 kw | 22 kw | |
Model | YHQ28-260 | YHQ28-330 | YHQ28-400 | |
Nominal capacity | 200 ton | 250 ton | 320 ton | |
Stroke of main cylinder | 550 mm | 600 mm | 600 mm | |
Edge pressing cylinder | Capacity | 60 ton | 80 ton | 80 ton |
Max stroke | 250 mm | 250 mm | 250 mm | |
Max distance between slide and working table | 950 mm | 1050 mm | 1050 mm | |
Min distance between slide and working table | 400mm | 450 mm | 450 mm | |
Fast descending speed | 300 mm/s | 300 mm/s | 300 mm/s | |
Pressing speed | 25-35 mm/s | 20-30 mm/s | 20-30mm/s | |
Return speed | 250 mm/s | 250 mm/s | 250 mm/s | |
Effective working table | 800x800 mm | 900x900 mm | 1000x1000 mm | |
Motor Power | 30 kw | 30 kw | 37 kw | |
