The Esautomatcion CNC range is designed to meet demands for an increasing number of user for a performance-oriented,user-friendly CNC with up to the minute functions and styling.
This led to the creation of a new range of products for bending applications combining the exceptional performance provided by
the previous S500 line with a re-vamped and upgrated graphical enviroment,plus exclusive use of touch screeb and multitouch screens.
Depending on the model ,the new Esa S600 CNC line can handle the most simple machines multiandem robotic lines with up to 125 axes.
*Technologies handled:
Shearing machines,conventional press brakes,synchro single-cylinder and twin-cylinder press-brakes,hammerle press-brakes,Electrohydraulic (hybrid) and Electrical press-brakes,rolling presses,profile bending machines.
*Multi Tandem Management:
The use of a can bus line for exchanging data between one CNC and another,which allows tandem and multi tandem press-brakes(up to 4 machines in line) to be created without complex I/O exchanges and without requiring any synchronzing device.
Each CNC sees the optical scales of the other machines so as to perfectly synchronize the rams is every processing phase.
*Remote support for the entire range:
The remote diagnostics service is available to which the machine is subjected when bending,are detected by strain gauges or potentiometers.Deformation is immediately compensated by means of CNC-comtrolled hydraulic cylinders.Thus,the resulting bend is always perfectly linear.
*Measurement of bending angles and relative "Real Time"compensation:
S600 series Esa CNC interface has the most sophisticated bending angle sensors.Not only can our CNC detected bending erros,
but also (if the machine allows) corrects the bend without the workpiece having to be removed from the machine.Springback of material can also be compensated.Our CNC equipped with Personal computers can host Data M governance software for optimzing cycle times and costs if this type of sensors are used.
*PLC programmable by manufacturers:
All our CNC are equipped with anOpen Plc to allow manufacturers to develop special machine functions on their own.Languages available :IEC 61131-3 or "C".
*Automatic bending sequence Optimizer:
Draw the workpiece profile using the simple"touch design" cad and leave the CNC to find the best bending solution and check for collisions.
Choose one the solutions proposed and start bending..
*Bending angle correction database
Deviation from the programmed angle is acquired by the machine as each bend is made,by tyoe of material and its dimensions.This value is stored for future uses for the purpose of improving precision and reducing waste.
*Accessories available:
Usb or wifi/bluetooth keyboards,Wila LED bar or similar to indicate from workstation to be fixtured and or use for bending, usb or wifi electronic goniometer for automatic angle correction,remoting of operator interface on the tablet.
*Offline programming:
There is a PC application that allows you to program and praphically check your work while sitting comfortably in your office.
Once you've completed the program,it can be transferred to the machine's CNC via usb or ethernet.
*Loading and unloading robot management:
Our cnc can handle a Cartesian loading and unloading robot.This is achieved using the same CNC that equips the press-brake,with obvious cost and reliability benefits.Anthropomorphical robot can also be governed using a CNC interface supplied by
the most well-know robot manufactuers.
*Safety PLC integration:
The 600 series support the most widespread safety PLC,data are exchanged via serial line or ethernet.
*Automatic measurement of metal plate thickenss:
Sensors located on machine allow the CNC to measure the thickness of the metal plate and to automatically correct the bend.

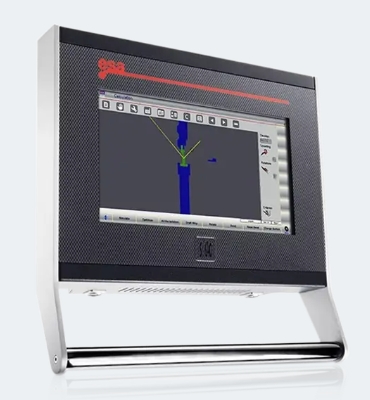

CNC S 630-P
The most powerful in its class.10 inch touch screen with powerful graphic.
All the performance of a high-level cnc in an economical and user-freindly controller.
High-level graphic programming for easiness of use and sophisticated algorithms to make the most of your machine.
Direct management of any kind of servo valves with no need of external amplifierd.
Can manage up to four axes in any combination ,including electrical press brakes and tandems.

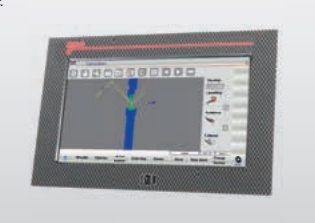

CNC S 640-P
Compact with hig performances 15 inch touch screen
Top -level performances for machines up to six axes.
The wide screen allows excellent comfort for the operator enhancing the advantages of a full graphic interface.
Automatic bending sequence calculation and material data base for predictive compensation are available (as options) to reduce the wastage of materail.
Crowning correction is degrees.
Dynamic crowning is available to grant a perfect bend linearity.
Direct correction of Mitutoyo protractor and anglecheck device to allow process angle measurement.

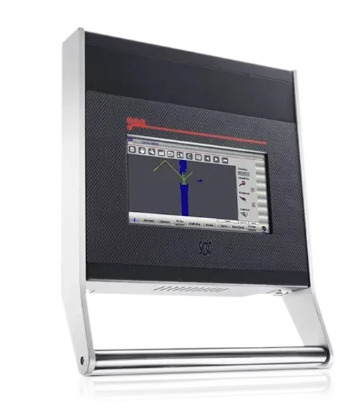

CNC S 650-P
The top performances in the compact class,15 inch touch screen
Designed to controls machines up to eight axes.The wide screen allows excellent comfort for the operator enhancing the advantages of a full graphic interface.
Includes Automatic bending sequence calculations to reduce the wastage of materail.Materail data base or predicitive compensation is available as an option.
Crowning correction is degrees.
Dynamic crowning is available to grant the perfect bend linearity.
Direct connection of Mitutoyo protractor and anglecheck device to allow process angle measurement.

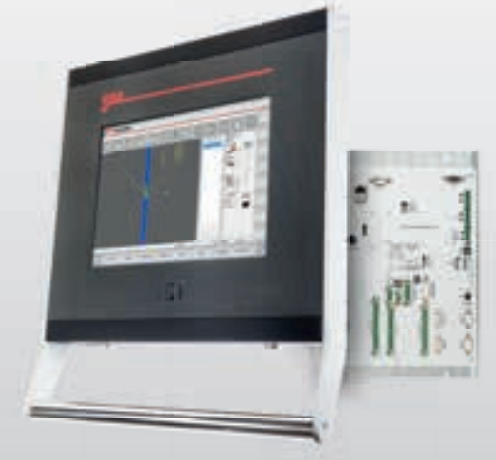

Rack Versions CNC S 630-W-P
The most powerful in its class integrated with a Windows PC which has intstalled Window 10.10 inch touch screen with powerful graphic.
All the performances of a high-level cnc in an economical and user-friendly controller.
High-level graphic programming for easiness of use and sophisticated algorithms to make the most of your machine.Direct management of any kind of servo valves with no need of external amplifiers.
Can manage up to four axes in any combination ,including Electrical press brake and tandem.

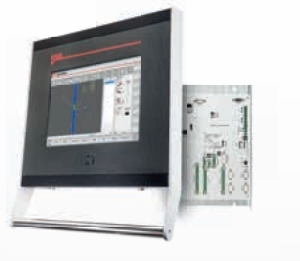

Rack Versions CNC S 640-W-P
Compact with high performances ,integrated with a Windows PC which has installed Windos 10.15 inch touch screen.
Top -level performances for machines up to six axes.The wide screen allows excellent comfort for the operator enhancing the advantages of a full graphi interface.Automatic bending sequence calculations and Materail Data Base for predictive compensation are available (as options) to reduce the wastage of materail.
Crowning correction in degrees.
Dynamic crowning is available to grant a perfect bend linearity.
Direct connection of Mitutoyo protractor and anglecheck device to allow process angle measurement.

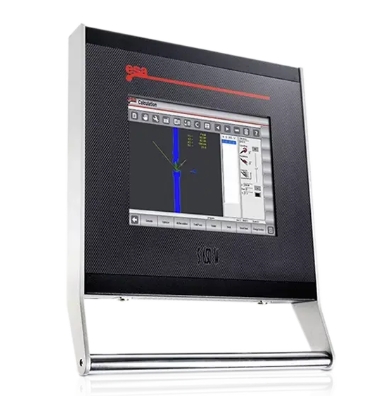

CNC S650 W-P
Versatile PC,gorgeous 15 inch 4:3 high-resolution touch screen
No limit in both performance and flexibility.
Direct import of tools shapes(.dxf files) and management of tool library.
Tool and die holders management.
Angle measurement and correction with all existing devices is available.

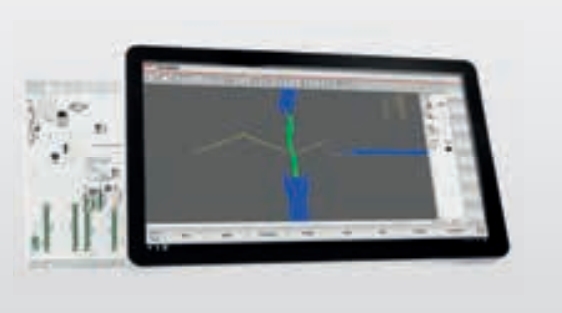

CNC S 660 W-P
19 inch multi touch
A totally renewed interface,specifically designed for multi touch screen,is available as an alternative to the well-known Esa interface used on S650W.
Make the best of any 3D cad cam you would like to install in the CNC.
Finger-tip work piece design.
Direct import of tools shapes(.dxf files) and management of tool library.
Tool ad die holders' management.
Angle measurement and correction with all existing devices is available.
CNC S 675 W-P
21.5 inch multi touch
A totally renewed interface,specificallt designed for multi touch screen,is available as an alternative to the well-knoe Esa interface used on S650W.
Make the best of any 3D cad cam you would like to install in the CNC.
Finger-tip work piece design.Direct import of tools shaped (.dxf files) and management of tool library.
Tool and die holders' management.
Angle measurement and correction with all existing devices is available.
