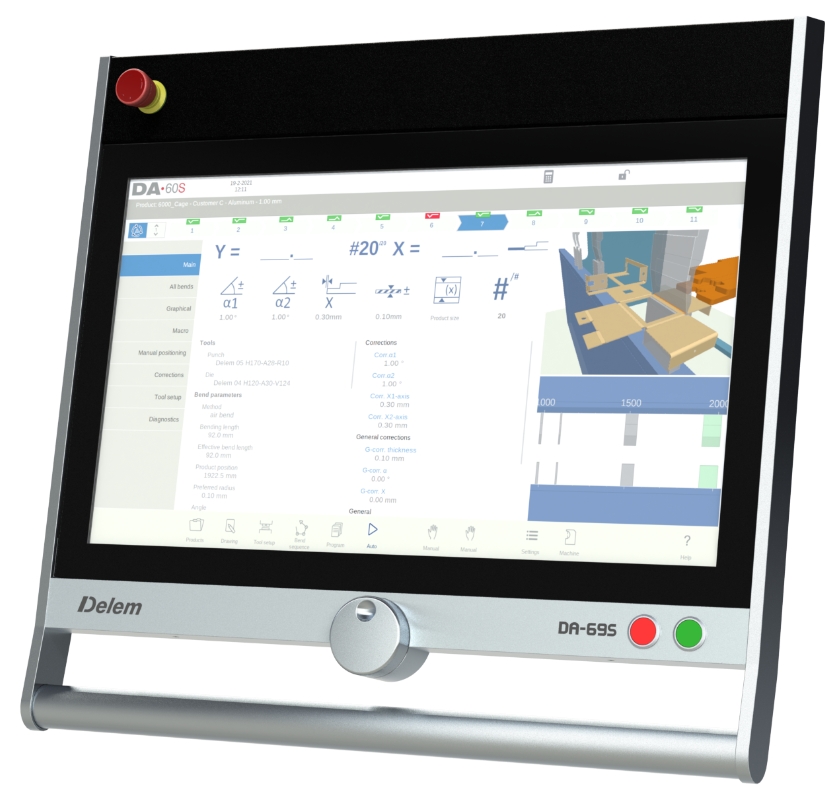

Electric Press Brake DA-69S Controller Introduction

The DA-69S flagship control combines solid fundamental electric press brake control functionality with the latest of enhancements increasing productivity.Next to highest accuracies ,ease-of-use for operator it makes today's electric press brake more versatile than ever.Integration of machines

in the manufacturing process chain is what it is all about.

The control operation ,based on state-of-the art industrial touch screen technology,gives access to the proven renewed Delem user-interface and enable direct navigation between programming and production.Function are directly located where you need them,offering optimised ergonimics through the application.

State-of-art- function

The DA-69S offers 2D as well as 3D programming that includes automatic bend sequence calculation and collision detection.Full 3D machine set-up with multiple tool station giving ture feedback on the product feasibility and handling,The offline programming ,as it comes with Profile-S 3D,increase efficiency and machine uptime.DXF import as well as 3D import are available to help convert designs as well as tooling.

Highly effective control algorithms optimise the machine cycle and minimise set-up time.The required application configuration can easily be adapted using the modular concept and scaling functionality.The proven real-time Linux operating system enables strong integration with application and is sturdy base for maximum

reliability.Smooth start-ups are ensured ,even after shut-off.

The OEM-panel located above the screen,reserved for machine functions and OEM-application switches,is integrated in the design and can be used depending on the required application.

DA-69S features:

1.3D and 2D graphical touch screen programming mode.

2.3D visualisation in simulation and production mode.

3.24 inch high resolution color TFT.

4.Delem Modusys compatibility(module scalability and adaptivity)

5.USB,peripheral interfacing

6.Support for industry 4.0 connectivity(OPC-UA optional)

7.Shop floor control,Job list functionality

8.Open system architecture

9.Sensor bending &correction interface

10.Profile-S 3D offline software

Specifications DA-69S:

Product configuration:

Standard                                                                  Factroy option

1.Color LCD display                                                 Panel version

2.24 inch TFT ,high brightness                                  Field Options

3.1920x1080 pixels,32 bit colour                               Part support control

4.Four touch screen control                                        X1,X2 angle programming

5.Storage capacity 4GB                                              Barcode reader interfacing

6.3D graphics acceleration                                          Protractor interfacing

7.Network connectivity                                               Sensor bending&correction interfacing

8.Emergency switch                                                     Sheet thickness measurement and compensation system

9.Integrated OEM-panel                                               ACP(Additional Control Panel)

10.USB flash memory drive                                        OPC-UA interface

11.Profile-S 3D offline software

Ordering information

DA-69S

DA-69S-P,CNC panel version

Technical specification

General                                                                   Programming

Real-time Linux embedded OS                               Alphanumeric product naming

Multitasking enviroment                                          2D/3D real-scale product programming and visualisation

Instant Shut off                                                          Job list functionality

Delem Modusys compatible                                    Automatic bend sequence calculation in 2D and 3D

 Electrical /Interfacing                                           Easy graphical bend sequence swap and move

Power supply:24V                                                    Hemmed products programming

Modusys HSB bus                                                    One page programming table

RS232 Port(2x)                                                         Graphical product and tool selection

Protractor interfacing                                                Programmable material properties

Angle control interfacing                                          Free materail programming

                                                                                  Product&tool search filter

Control                                                            Millimetres /inch,kN/Ton selection

Servo/2 speed AC control                                Stock counter

Unipolar /Frequency inverter control              Product notes

Direct pressure valve control                           DXF import support

Direct proportional valve Y1,Y2 control

Direct crowning control                                     Tooling

Multiple digital function outputs                        Graphical tool configuration

Tandem operation (multiple)                               Mutiple tool station set-ups

                                                                             Tool segmentation visualisation

Mechanical                                                          Alphanumeric tool identification

Housing 611x547x123mm                                   Free graphical tool programming

Panel version 593x402x63mm                             Hemming tools

Design,glass surface ,aluminum edge                   Radius tools

IP54                                                                       Tool adapter support

Weight approx.14.5Kg(incl.housing)                    DXF tool import

9kg(panel version)

Computed                                                     Miscellaneous

Tooling safty zones                                       teach-in on all axes

Press force                                                    Handwheel movement of all axes

Bend allowance                                            Operator selectable dialogue languages

Crowning adjustment                                    Integrated help functions

Developed length                                          Error messaging system

Bottoming foce                                             Diagnostic program

Hemming force                                            Remote diagnosis

Auto bumping calculation                            Software OEM Panel

Radius programming                                    User specific application support

Bend allowance table                                     Machine time+stroke counter

Tool configuration                                         On board Analysis Tool

Tool segementation                                        Sequencer functionality (PLC)

Learned angle correction database                 Safety PLC Interfacing
