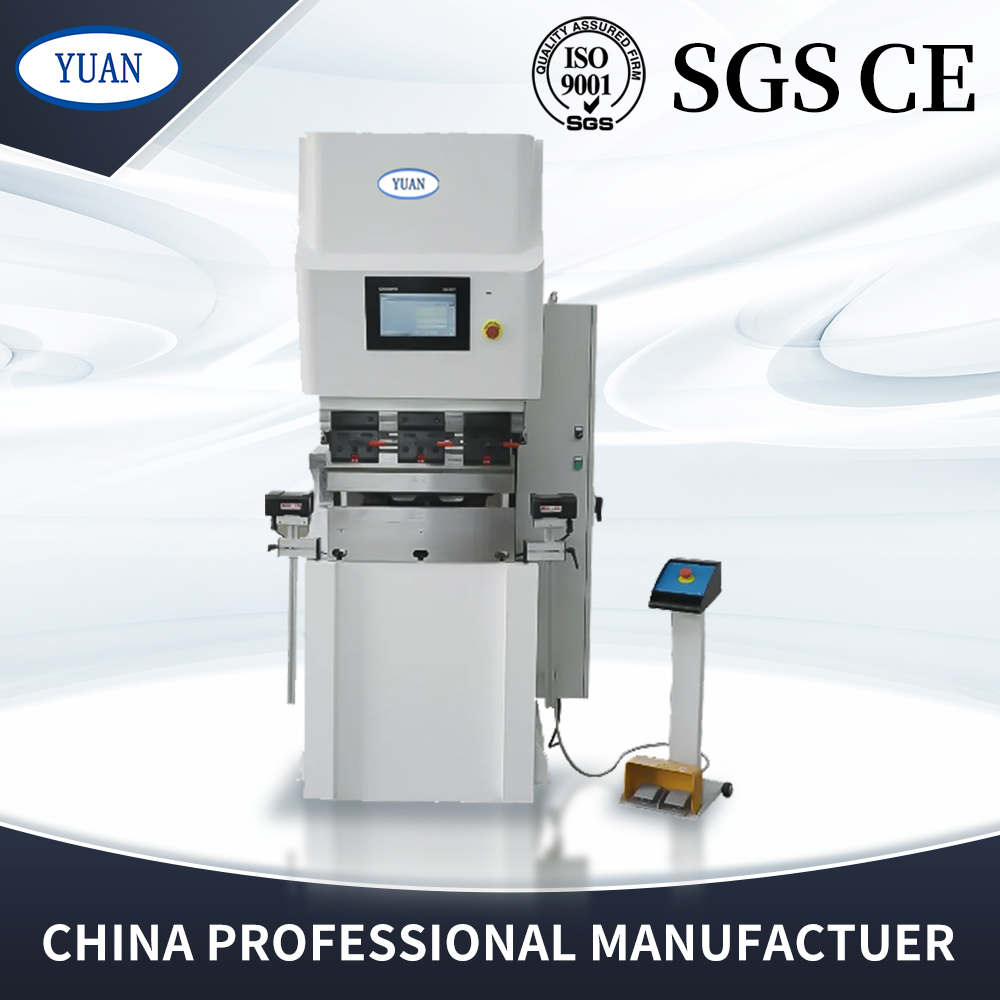

Electric Press Brake DA66S Controller Introduction

The DA-66S controlcombines solid fundamental electric press brake control functionality with the latest of enhancements increasing productivility.Next to highest accuracies,ease-of -use for the operator for operator it makes todays' electric servo press brake more versatile than ever.Integration of machines in the manufacturing process chain is what it is all about.

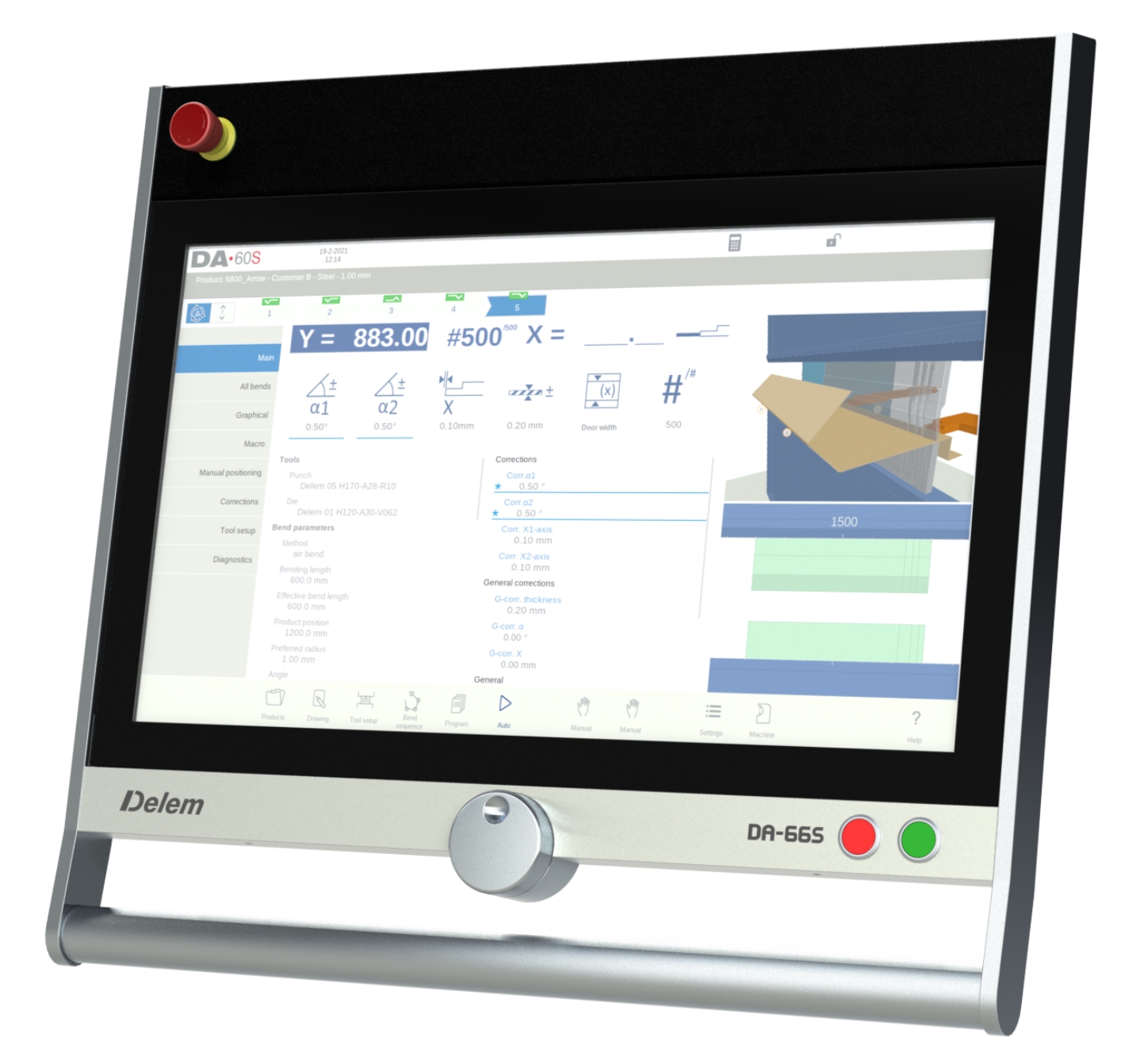

The control operation,based on state-of -the art industrial touch screen technology,gives access to the proven renewws Dele user-interface and enables direct navigation between programming and production.Functions are directly located when you need them,offering optimised errgonomics throughout the application.

State-of-art Function Complete

The DA-66S offers 2D programming that includes automatic bending sequence calculation and collision detection.Full 3D machine set-up with  multiple tool stations giving true feedback on the product feasibility and handling.

Highly effective control algorithms optimise the machine cycle and minimise set-up time.The required application configuration can easily be adapted using the modular concept and scaling functionality.

The proven real-time Linux Operating system enables strong integration with application and is a sturday base for maximum reliability.Smooth start-ups are ensured,even after instant shut-off.

The OEM -panel located above the screen,reserved for machine functions and OEM-application switches,is integrated in the design and can be used depending on the required application.

DA-66S Features:

1.2D graphical touch screen programming mode.

2.3D visualisation in simulation and production mode.

3.24 inch resolution colour TFT

4.Delem Modusys compatibility(Module scalability and adaptivity)

5.USB,peripheral interfacing

6.Support for industry 4.0 connectivity(OPC-UA optional)

7.Shop floor control,job list functionality

8.Open system architecture

9.Sensor bending &correction interface

10.Profile -S2D offline softline

Specifications DA-66S

Production configuration

Standard                                                                      Factroy option

1.Color LCD display                                                      Panel version

2.24 inch TFT,high brightness                                      Field Options

3.1920x1080 pixels,32 bit colour                                 Part support control

4.Full touch screen control                                           X1-X2 angle programming

5.Storage capacity 4GB                                                Barcode reader interfacing

6.3D graphics acceleration                                           Protractor interfacing

7.Network connectivity                                                Frame deflection compensation

8.Emergency switch                                                    Sensor bending &correction Interfacing

9.Integrated OEM-panel                                             Sheet thickness measurement and compensation system

10.USB flash memory drive                                       DXF import support

11.Profile-S2D offline software                                  ACP (Additional control panel)

                                                                                  OPC-UA Interface

Ordering information

DA-66S

DA-66S-P ,CNC Panel version

Technical specification

General                                                                            Programming

Real-time Linux embedded OS                              Alphanumeric product naming

Multitasking enviroment                                         Real-scale product programming and visualisation

Instant Shut off                                                         Job list functionality

Delem Modusys compatible                                   Automatic bend sequence calculation

Electrical /Interfacing                                          Easy graphical bend sequence swap and move

Power supply:24V                                                   Hemmed products programming

Modusys HSB bus                                                  One page programming table

RS232 port (2x)                                                      Graphical product and tool selection

Network interface(3x)                                              Pragrammable materail properties

USB port(2x)                                                            Programmable axis speed

Protractor interfacing                                               Free material programming

Angle control interfacing                                        Product&Tool search filter

Control                                                                             Millmetres/inches,KN/Ton selection

Servo-/2 speed AC control                                              Stock counter

Unipolar /frequency inverter control                               Product notes

Direct pressure valve control                                          Tooling

Direct proportional valve Y1,Y2 control                        Graphical tool configuration

Direct crowning control                                                  Multiple tool station set-ups

Multiple digital function outputs                                     Tool segmentation visualisation

Tandem operation(mutiple)                                              Alphanumeric tool identification

                                                                                        Free graphical  tool programming

                                                                                       Hemming tools

                                                                                        Radius tools

                                                                                       Tool adapter support

                                                                                       DXF tool import(Optional)

Computed                                                            Miscellaneous

Tooling safety zones                                             Teach-in on all axes

Press force                                                            Handwheel movement of all axes

Bend allowance                                                     Operator selectable dialogue languages

Crowning adjustment                                            Integrated help functions

Developed length                                                  Error messaging systems

Bottom force                                                         Diagnostic program

Hemming force                                                    Remote diagnosis

Auto bumping calculation                                   Software OEM panel

Radius programming                                           User specific application support

Bend allowance table                                          Machine time+stroke counter

Tool configuration                                             On board Analysis Tool

Tool segmentation                                             Sequencer functionality (PLC)

Learned angle correction database                        Safety PLC interfacing
