YUAN provides the utlimate sheet follower solution for press brakes. Why? Because of its simplicity, construction, and effectiveness.When bending workpieces, press brakes often process workpieces with longer lengths and larger weights. When the bending machine is made, the workpiece will be closed with the mold, and the sheet metal on both sides of the bending line will turn upward. In order to avoid the bending accuracy of the workpiece due to bending and gravity of the overly long or heavy sheet, we recommend equipping the press brake follow-up device.
Special Advantages of Follow-up Device
1. Save labor
2. Improve the processing efficiency of machine tools
3. The follower device and the plate bending action are fully synchronized
4. It can be matched with various brands and models of bending machines
5. Independent control system, no need to modify the bending machine, no need to take any signal from the electrical box of the bending machine, avoid unnecessary trouble
6. It can be moved at any time to match the bending machine for use
Features:
Sheet metal follower can be equipped with all brands and models of upward Press brake (oil electric hybrid Press brake, electro-hydraulic servo Press brake, torsion shaft Press brake).
The main body is an independent structure, without changing the mechanical parts of the Press brake, and the base is a Fuma wheel structure, which can be moved at any time.
The material support table is equipped with a universal rolling ball, which facilitates the movement of the workpiece, the direction of rotation, and the bending of the workpiece.
The height of the pallet can be adjusted up and down, making it convenient to install molds of different heights.
An independent PLC electrical control system uses a magnetic grating ruler to feedback information to the computer, and the computer controls the servo motor to perform closed-loop follow-up action.
The follow-up flipping speed can be adjusted according to different plate thicknesses, without the need to modify the bending master control system, and standard bending does not require programming; Human machine interface, programmable or manual operation.
There is no need to reform the Press brake, just need to punch a displacement sensor in the Press brake slider, and connect it to the Press brake inlet interface for use
To avoid the risk of failure caused by the transformation of the bending machine box and taking the signal of the Press brake, and also to avoid the industrial injury caused by the Press brake knife falling and pressing the operator's hand due to the disturbance of the Press brake signal by the power car.

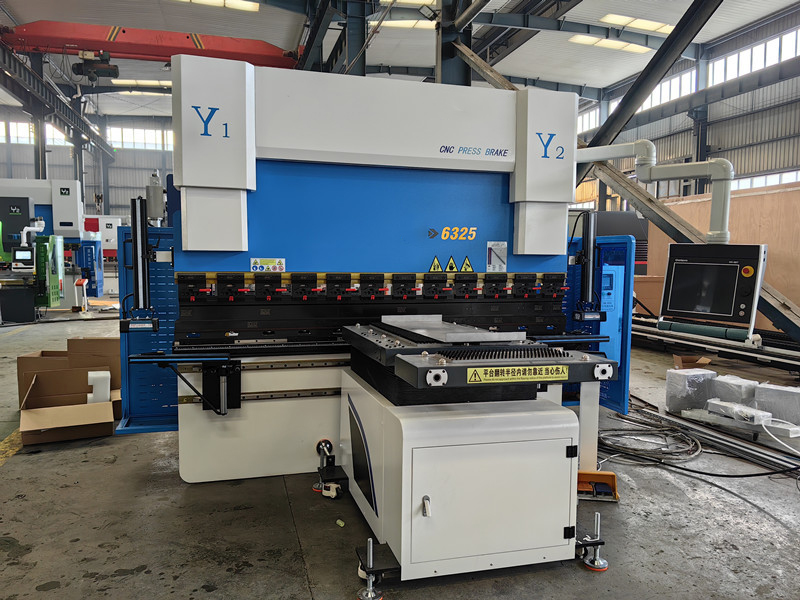

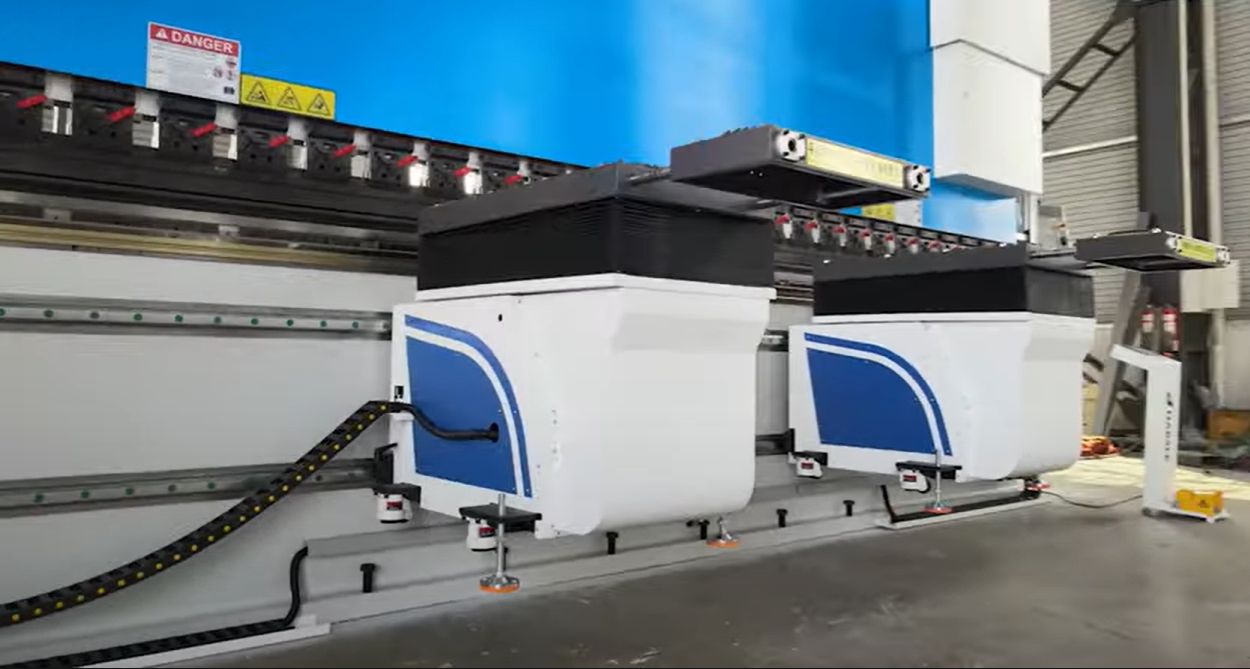

1.Floor Type Press Brake Sheet Follower:
Press Brake Sheet Follower 100Kg Capacity:
Max load:100 Kg
Max angle:60°
X axis stroke:70 mm
R axis stroke:150 mm
Workbench length:970 mm--2000mm
Workbench width:570 mm
Height adjustment:200 mm
NC Or CNC for Height Adjutment
Press Brake Sheet Follower 200Kg Capacity:
Max load:200 Kg
Max angle:60°
X axis stroke: 70 mm
R axis stroke:150 mm
Workbench width:750 mm
Workbench length:1100-2300 mm
Height Adjustment:120 mm
NC or CNC for Height adjustment
Press Brake Sheet Follower 300kg Capacity:
Max load:300 Kg
Max angle:60°
X axis stroke:70 mm
R axis stroke:150mm
Workbench width:800 mm
Workbench length:1450-2600 mm
Height Adjustment:120 mm
2.Combined Press Brake Sheet Follower

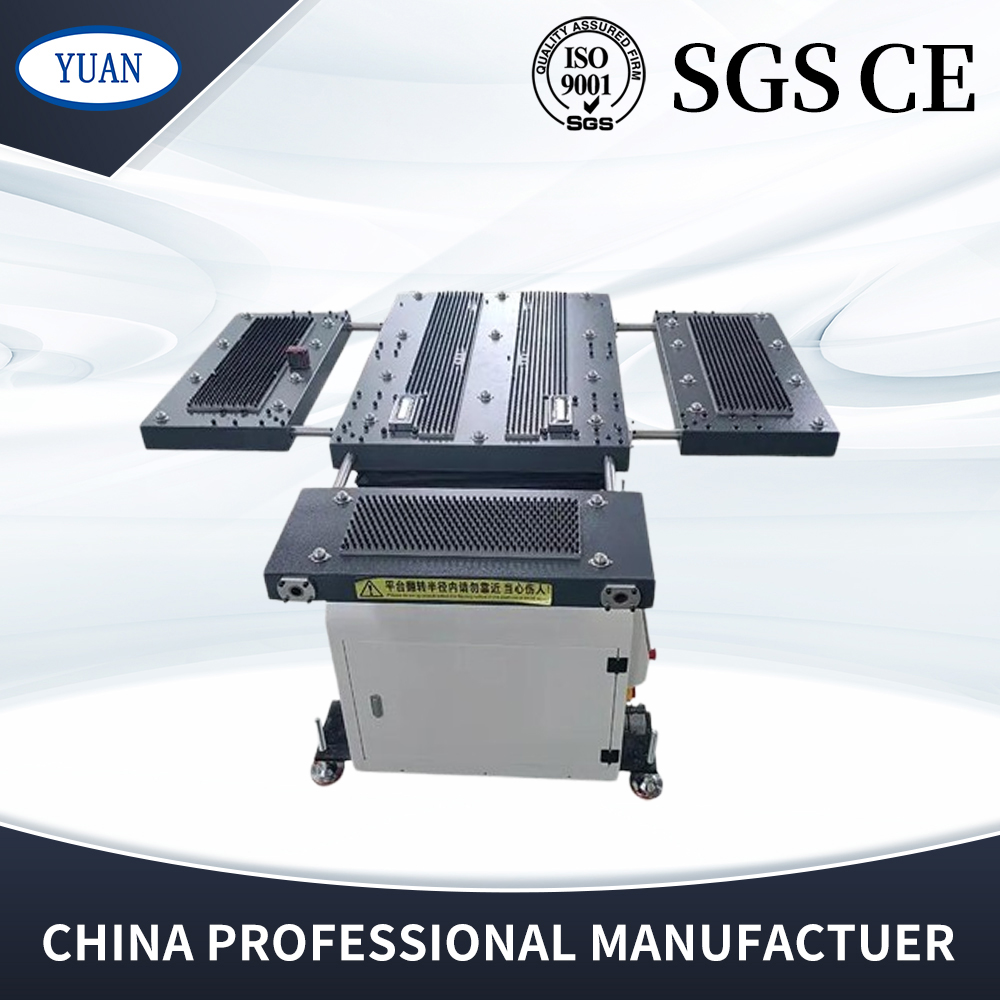

Sheet Follower 180Kg Capacity:
Max load:180 Kg
Max Angle:60°
X axis stroke:70 mm
R axis stroke:150 mm
Workbench:1100 mm
Working table extension:2300 mm
Working table width:750 mm
Height Adjustment:120 mm
Dimension size；660x570x800mm
Weight:220 Kg
Sheet Follower 380Kg Capacity:
Max load:380 Kg
Max angle:60°
X axis stroke:70 mm
R axis stroke:140 mm
Workbench:260 mm
Diemension:990x660x960 mm
Weight:220Kg
