Electric-Press-Brake-Controller-Delem-Da53tx-Introduction

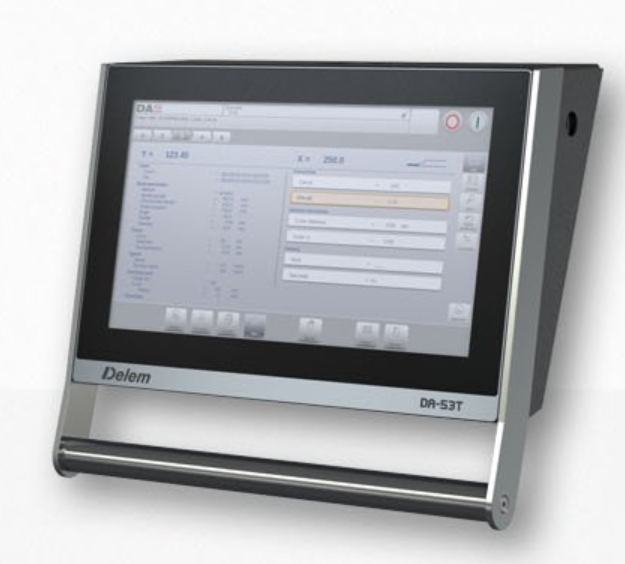

The DA-53Tx is part of the DA-50Touch series of numerical press brake controls from Holland's Delem Company.

The DA-53Tx touch CNC control offers a modern, compact, and versatile solution for a wide variety of servo-electric press brake applications, without sacrificing machine performance.

The DA-50T series is designed for easy CNC programming, featuring the well-established Delem touchscreen user interface. The new DA-53Tx, with its extra-large screen, provides an advanced, all-in-one touch control solution for synchronized press brakes.

This panel-based control system, which can manage up to 4 axes as standard, is flexible enough to be integrated into machine cabinets or used with an optional pendulum arm housing. Its 15" widescreen, high-resolution color TFT display, with industrial-grade multi-touch technology, offers access to the intuitive Delem interface. It allows for quick, “hot-key” navigation between product programming and production, with all functions conveniently located where they are needed.

Machine adjustments and test bends are streamlined, reducing setup time to a minimum with a straightforward program-to-production workflow.

In addition to a full suite of features designed to simplify daily operations, the DA-53Tx supports optional 2D graphical product and tool programming. Standard USB interfacing ensures fast backups of products and tools using USB memory sticks.

Compact Design

The DA-53Tx enables to lean machine design with all important functionality directly at hand.

Easy-to-use

DA-53Tx touch navigation offers proven user friendliness and consistency ensuring user-efficiency.

Productive

Excellent machine behavior enabling smooth and fast bending at highest reliability.

No compromise

Machine functions and integration of partner systems, not compromising compatibility and performance.

DA-53Tx Specification:

1. Color high brightness LCD display

2. 15.6 inch wide screen TFT

3. LED backlight

4. 1366x768 pixels

5. Industrial grade touch screen

6. Storage capacity 1GB

7. Data backup/restore via USB

8. USB flash memory stick

9. Integrated valve amplifier

10. Power-down memorization

11. Profile-53TL offline software.

DA53-Tx Technical specification

General

1. Real-time Linux embedded OS

2. Multi touch industrial touch screen

3. Instant Shut off

Electrical/Interfacing

1. Power supply:24V

2. Opto-isolated digital I/O

3. Integrated valve amplifier Y1,Y2,P

4. Encoder input(Single /diff.5V/12V)

5. RS232 port for safety PLC

6. USB port

Control

1. Servo control

2. Unipolar/frequency inverter control

3. Pressure valve control

4. Proportional valve control

5. Crowning control

6. Multiple digital function outputs

7. Tandem operation(dual)

Mechanical

1. Housing 419x349x127mm

2. Panel 406x272x50mm

3. Design,glass surface,aluminum edge

4. IP54

5. Weight 7Kg(Incl.housing)

Programming

1. Alphanumerical product naming

2. Hemmed products progeamming

3. Radius programming(bumping

4. One page programming table

5. 2D graphical product programming(Optional)

6. Programmable material properties

7. Programmable axis speed

8. Millimeters/Inches,kN/Ton section

9. Stock counter

Tooling

1. Tooling library 30 punches/30 dies

2. Alphanumeric tool identification

3. Hemming tools

4. Radius tools

Computed

1. Tooling safety zones

2. Press force

3. Bending allowance

4. Crowning adjustment

5. Bottoming force

6. Hemming force

7. Auto bumping calculation

8. Learned angle correction database

Miscellaneous

1. “Teach-in ”on all axes

2. Operator select-able dialogue languages

3. Error messaging system

4. Diagnostic program

5. Remote assistance(option)

6. Machine time+stroke counter

7. Software OEM panel

8. On board Analysis tool

9. Sequencer functionality(PLC)

10. Safety PLC interfacing

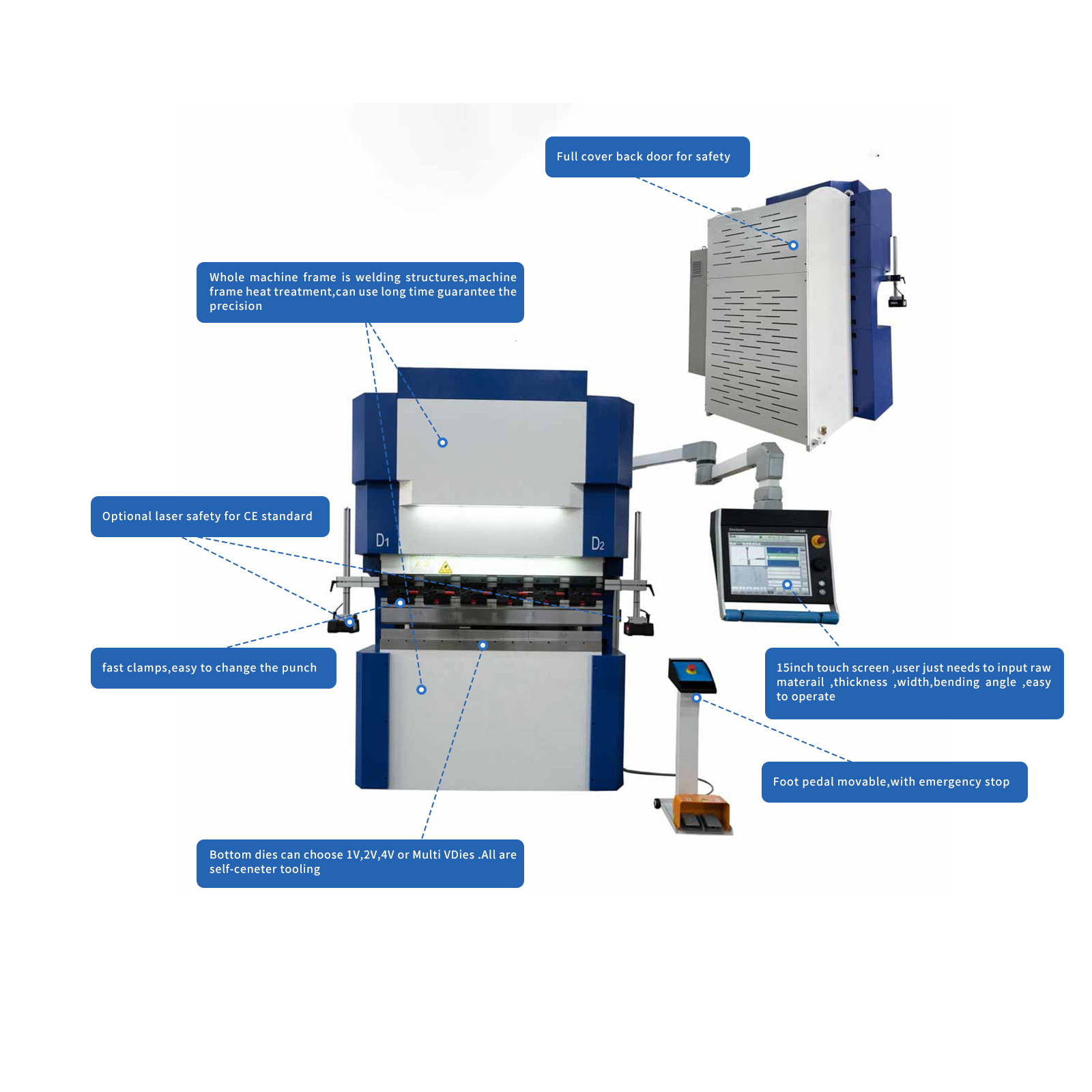

Servo Electric Press Brake With DA-53Tx Control System
