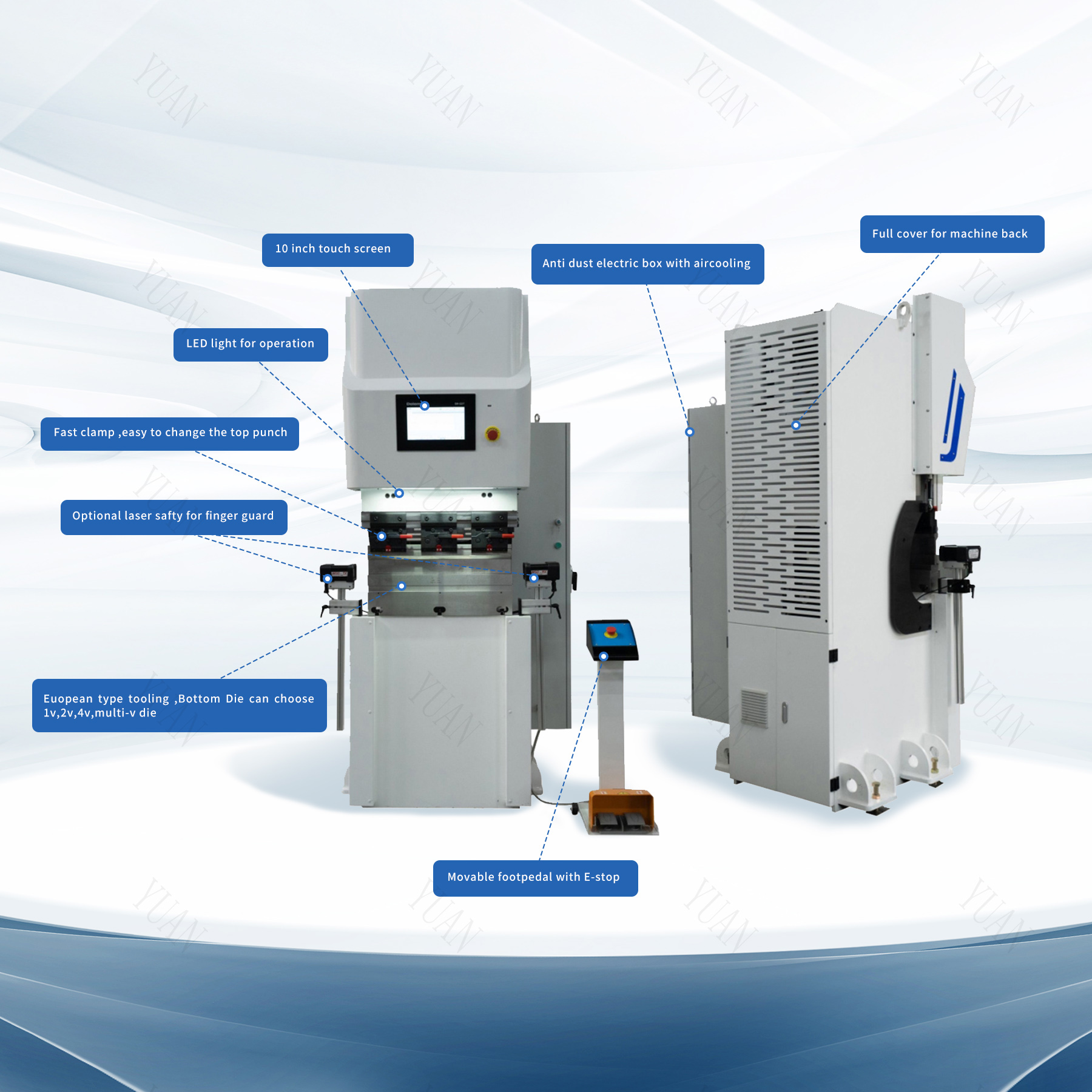

Diego Castellano is an Argentine motorcycles manufacturer.He wants to look for a electric press brake for producing the tail parts for his motorcycles.The tail parts are small ,if use big hydraulic press brake machine to bend it ,it will be a waste.Our small electric press brake 12 Ton can meet Diego's request.
The deformation and safety factor of key mechanical components of the press brake are analyzed using finite element method to ensure the overall high rigidity requirements and long-term reliability of it.Machine adopts wholly welding structure,the main annealing treatment,releasing internal stress.The machine frame and ram is processed at one time work holding through the technological procedure of heavy duty floor type boring and milling machine.
CNC Controller Taiwan Syntech-73BA

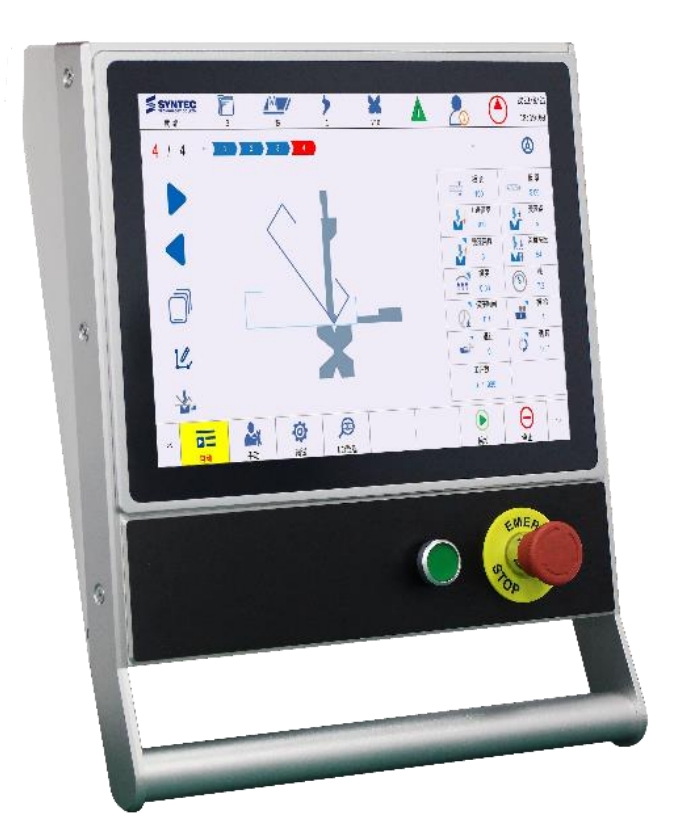

15inch touch screen,easy to input parameter.Product modularization, simple and intuitive operation
Mold/material/product library can be added by yourself .
Advanced advanced technology, calculation of tonnage and length and short board method, high precision
Bilateral angle programming, position programming, arc .
Programming to meet diverse bending needs .
Intelligent XR concession, safe and efficient processing .
One-click start of mold closing, automatic reverse push of clamping point .
One-click leveling on the debugging page, automatic leveling of double .
Moves slowly from side to side for easy debugging.
Spindle power box /AC servo motor:

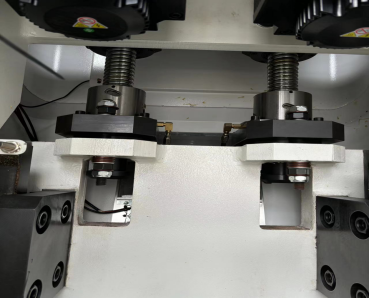

The spindle power box can transmit bending pressure. It adopts heavy-duty ball screws and bearings, with an ultra-long life design and sealing protection design to ensure that key components are not affected by external dust.
Machine configuration:
5.1.CNC system: China Brand ECO 4 axis (Y1,Y2,X,R),
5.2 Magnetic scale full closed loop control,2 pieces of magnetic scales.
5.3 Electrical element:Schneider.
5.4 Main Servo motor and driver(Y1/Y2):EASYCAT,China
5.5Toolings:upper tools fast clamping ,lower tool with 2V or 1V tools ,or according to your requirement.
5.6.CNC floor-standing back gauge
5.7 Two finger stop on linear guide
5.8.With safety back doors.
5.9 Foot Pedal with emergency
5.10 Emergency stop on the slider for 12ton press brake ,20ton and 30ton press brake the emergency stop on the hanging controller.
5.11With All Security equipment monitored.
Parameters:
NO | Name | Unit | Parameter | |
1 | Nominal pressure | KN | 120 | |
2 | Working table | mm | 600 | |
3 | Distance between housings | mm | 520 | |
4 | Throat depth | mm | 150 | |
5 | Sliding stroke | mm | 120 | |
6 | Max.opening height | mm | 420 | |
7 | Working table height | mm | 800 | |
8 | Working table width | mm | 60 | |
9 | Back gauge
| Stroke | mm | 150 |
Motor | W | 400 | ||
Speed | mm/s | 200 | ||
Position accuracy | mm | 0.01 | ||
10 | Slide running speed | Empty loading | mm/s | 200 |
Working | mm/s | 1-30 | ||
Return | mm/s | 200 | ||
11 | R axis | Stroke | mm | 120 |
Speed | mm/s | 160 | ||
position accuracy | mm | 0.05 | ||
9 | Main motor | Power | KW | 6 |
Quantity | Set | 2 | ||
10 | Control system | Model | ECO | |
Axes number | 4 | |||
11 | Dimension | L | mm | 950 |
W | mm | 820 | ||
H | mm | 1500 | ||
12 | Machine weight | Kg | 1250 | |
