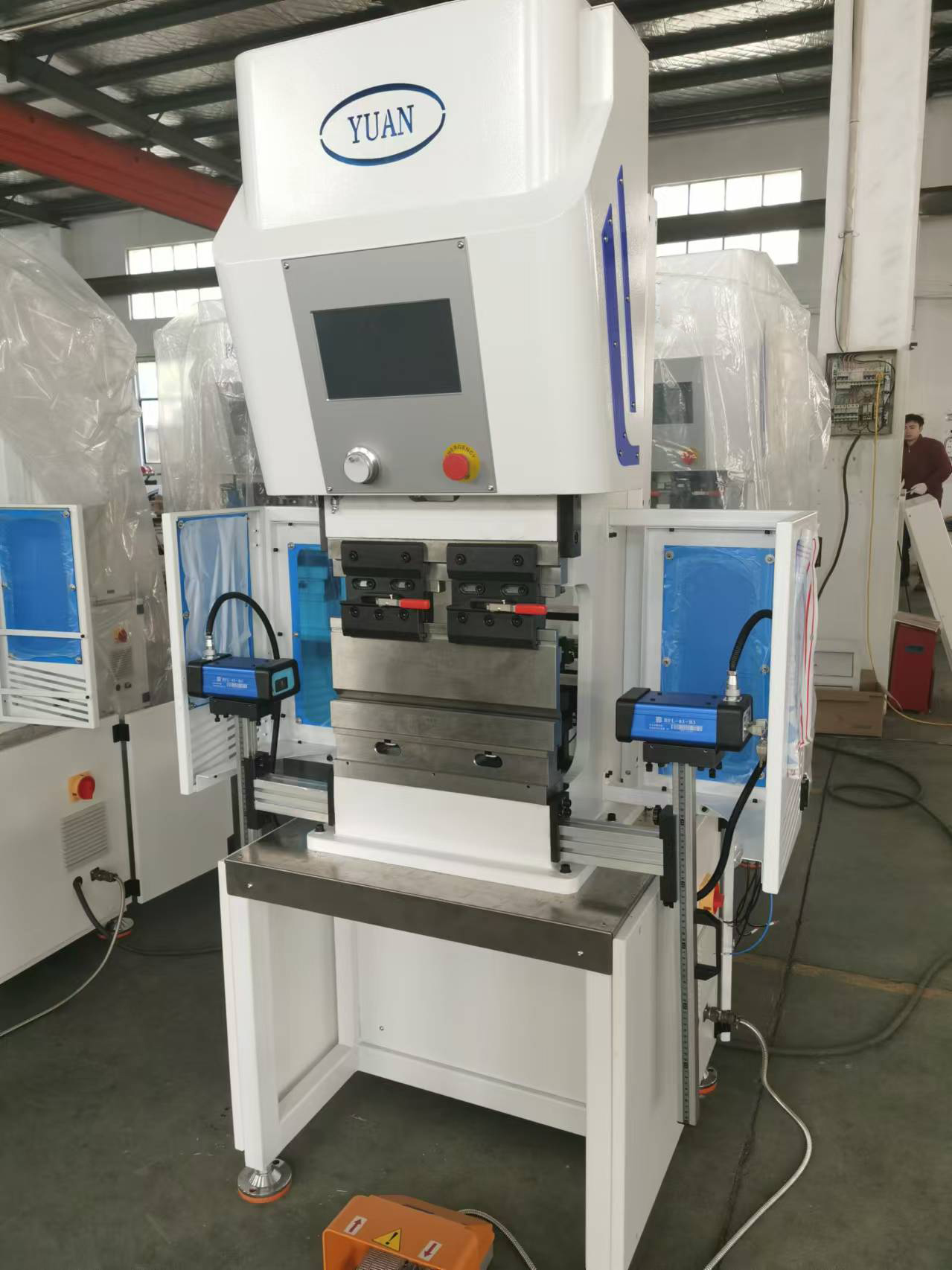

This Tiny Pure Electric Press Brake is ordered by Our US cleint Mark Foeller,who is in the filed of metal gun magazine parts fileds.He found rizhen machinery from Youtube.They feel the small pure electric folding machine is very suitable for them
to manufacture the small sheet metal parts ,it no needes to open mould for different shapes.The machine is flexible.
These days we test Mark Foeller's produts in our workshop.
Tiny CNC Press Brake Control System:

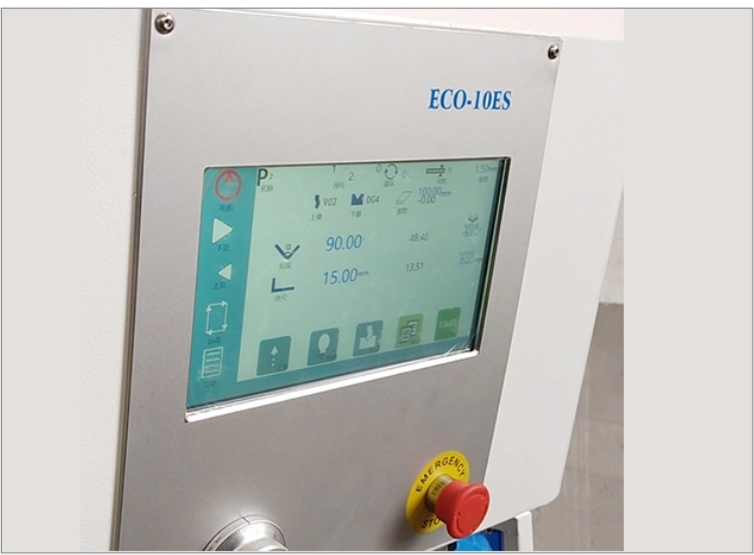

1.10 inch touch screen
2.Can control Y1,Y2,X,R axis
3.Angle Programming
4.Tool Programming
5.Retract function
6.Up to 220 programs
7.Servo control
8.Up to 24 bends per program
9.It can save 40 toolings
10.ARC bending function
Main Parts Brand List:
No | Name | Brand | Note |
1 | Main Motor(Y) | Easycat | China |
2 | Main Drive(Y) | Easycat | China |
3 | Linear guide rail | HIWIN | Taiwan |
4 | Ball screw | TBI | Taiwan |
5 | Electrical components | Schneider | France |
6 | Bearing | NACHI | Japan |
7 | Control System | ECO | China |
8 | Axis | Y,X | |
9 | Voltage | 240V,3Ph,60 HZ |
Tiny Sheet Metal CNC Press Brake Parameter:
NO | Name | Unit | Parameter | |
1 | Nominal pressure | KN | 60 | |
2 | Working table | mm | 400 | |
3 | Distance between housings | mm | 370 | |
4 | Throat depth | mm | 150 | |
5 | Sliding stroke | mm | 120 | |
6 | Max.opening height | mm | 420 | |
7 | Working table height | mm | 800 | |
8 | Working table width | mm | 60 | |
9 | Back gauge
| Stroke | mm | 150 |
Motor | W | 400 | ||
Speed | mm/s | 200 | ||
Position accuracy | mm | 0.01 | ||
10 | Slide running speed | Empty loading | mm/s | 200 |
Working | mm/s | 1-30 | ||
Return | mm/s | 200 | ||
11 | Main motor | Power | KW | 3 |
Quantity | Set | 1 | ||
11 | Control system | Model | ECO | |
Axes number | 2 | |||
12 | Dimension | L | mm | 1100 |
W | mm | 1100 | ||
H | mm | 2180 | ||
13 | Machine weight | Kg | 750 |

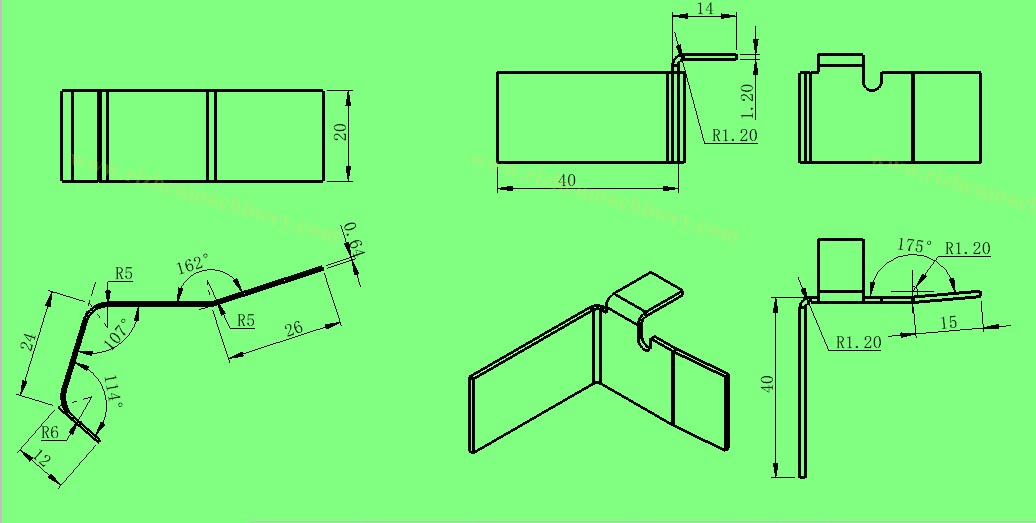

Cleint Workpiece drawing:

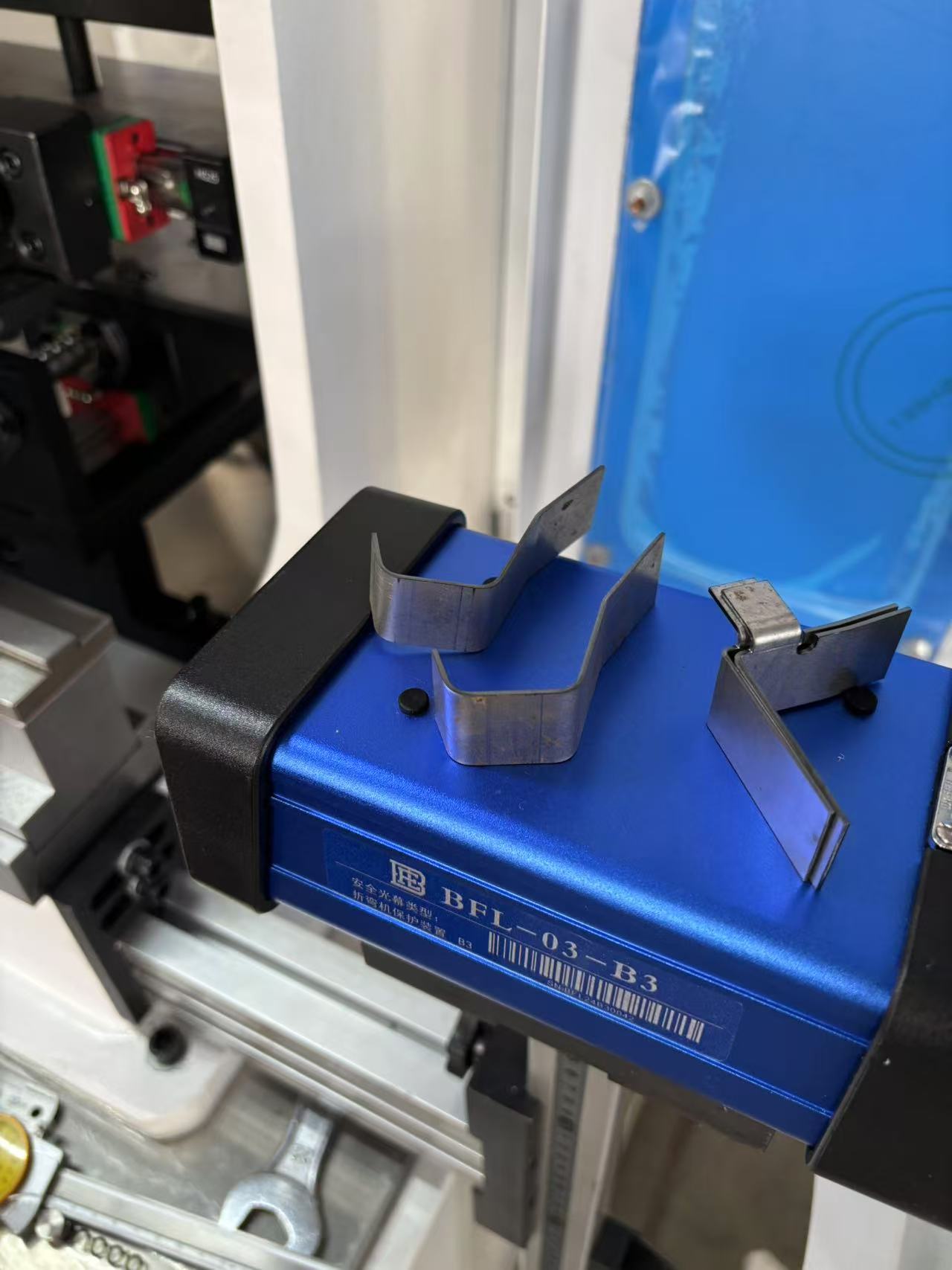

Cleint Work-piece Bending Samples Parts:
Tiny Electric Press Brake for Bending Gun Magazine Parts:
