Servo Electric Press Brake Controller Syntech-73BA Introduction

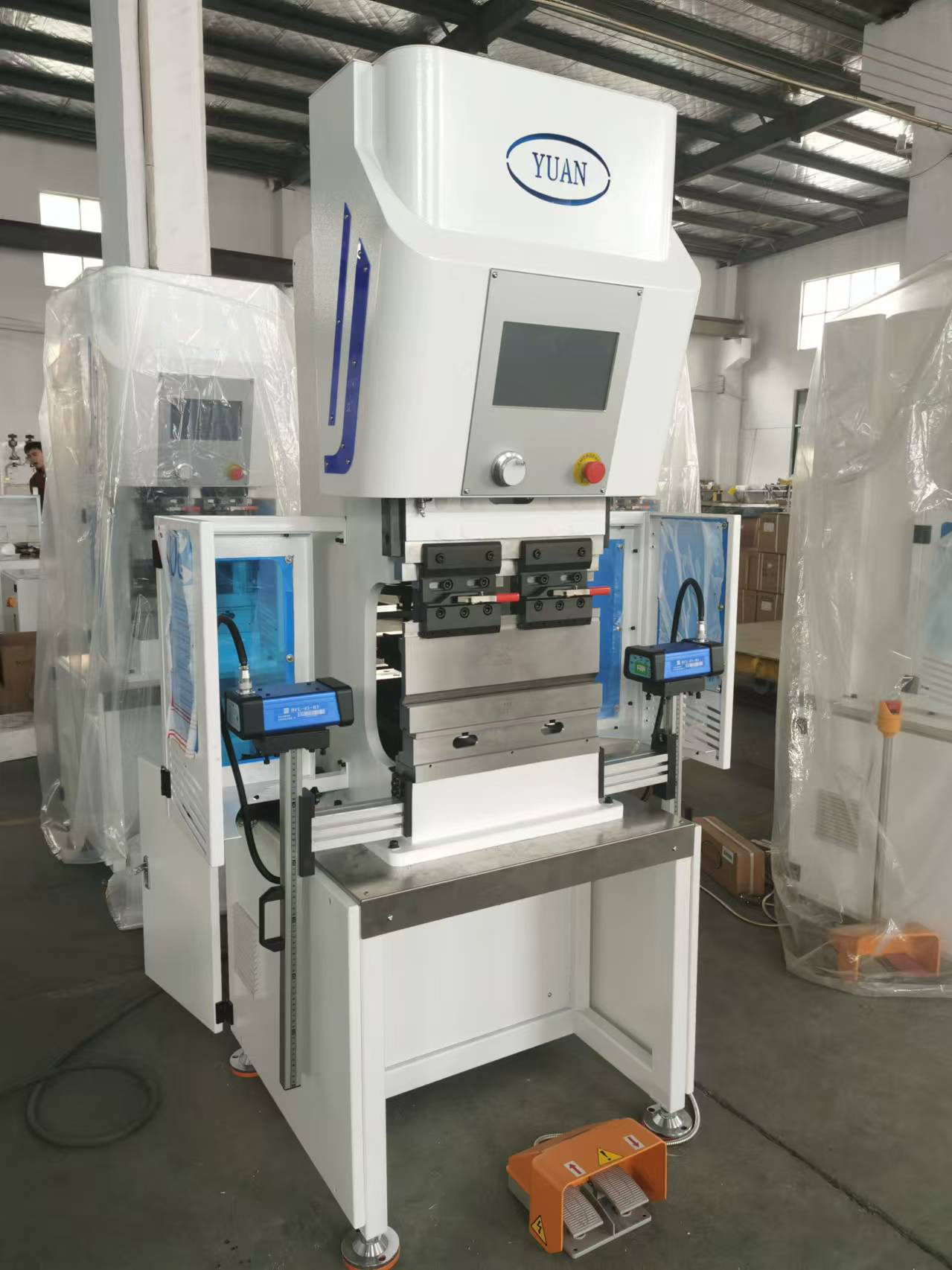

As the improvement of servo motor technology ,pure electric bending machine is become more popular these days.A good and stable servo electric press brake control system is

the sole of machine tools.It is the head of machine ,the CPU.If it is easy to use ,it will make press brake easier to operate.

Syntech corporation is a taiwan company ,which is built in Hsinchu in 1995.SYNTEC Group   business territory covers all over the world,

centered on Taiwan and outreaching three continents, including Europe, America, and Asia. It has been long and deeply engaged in the research

and development of software and hardware technology of machine tool controllers, focusing on the field of motion control, and has become

one of the most influential leading brands of controllers in Asia. The main products include CNC controller, servo drive, servo motor, dedicated

 automation machine, etc., for metalworking, woodworking, laser and other industries.

Syntec-73 BA is Taiwan’s new generation controller which designed for pure electric bending machine .It provides an approachable programming method that makes bending easier.

At the same time, the interface is open for flexible customization and peripheral configurations can be expanded.Settings, such as the auxiliary trolley, make bending easier.

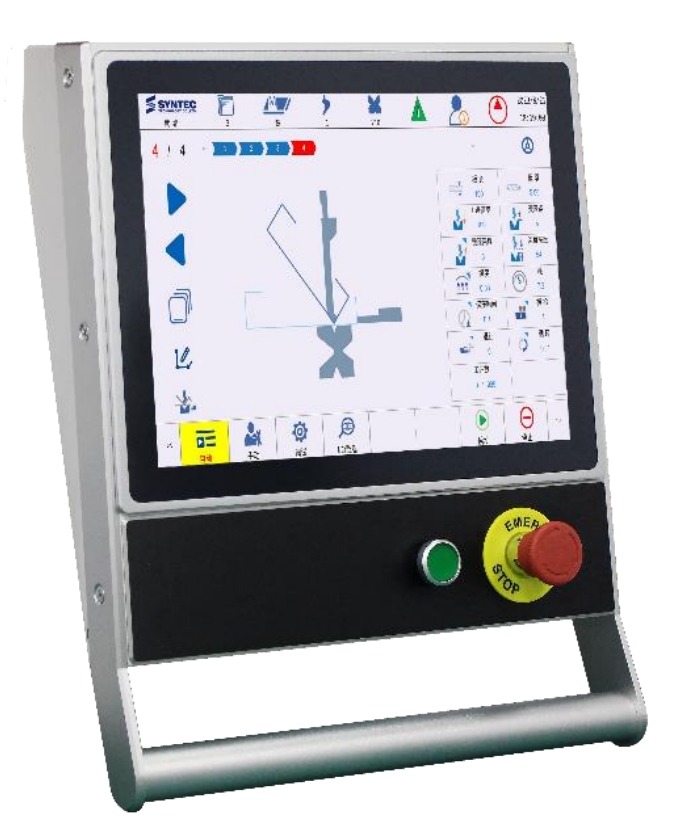

The shell is an optional part, and customers can purchase the system separately.

The shell is made separately.

73BA Pure Electric Bending Machine controller specifications:

 Basic functions:

⚫Product modularization, simple and intuitive operation

⚫ Mold/material/product library can be added by yourself

⚫ Advanced advanced technology, calculation of tonnage and length and short board

method, high precision

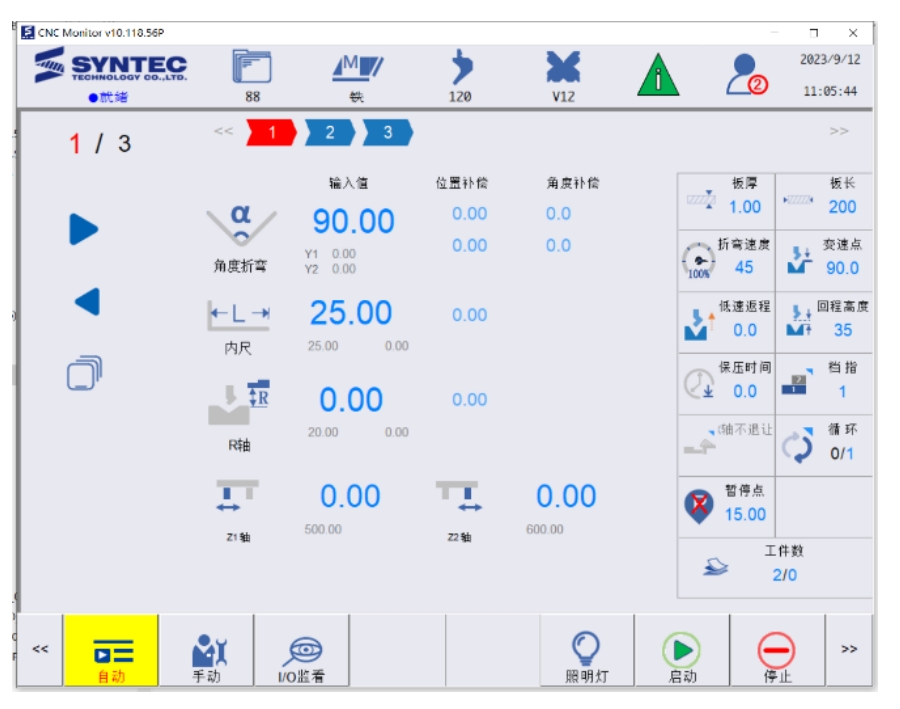

⚫ Bilateral angle programming, position programming, arc

Programming to meet diverse bending needs

⚫ Intelligent XR concession, safe and efficient processing

⚫ One-click start of mold closing, automatic reverse push of clamping point

⚫ One-click leveling on the debugging page, automatic leveling of double

⚫Moves slowly from side to side for easy debugging

Advanced functions:

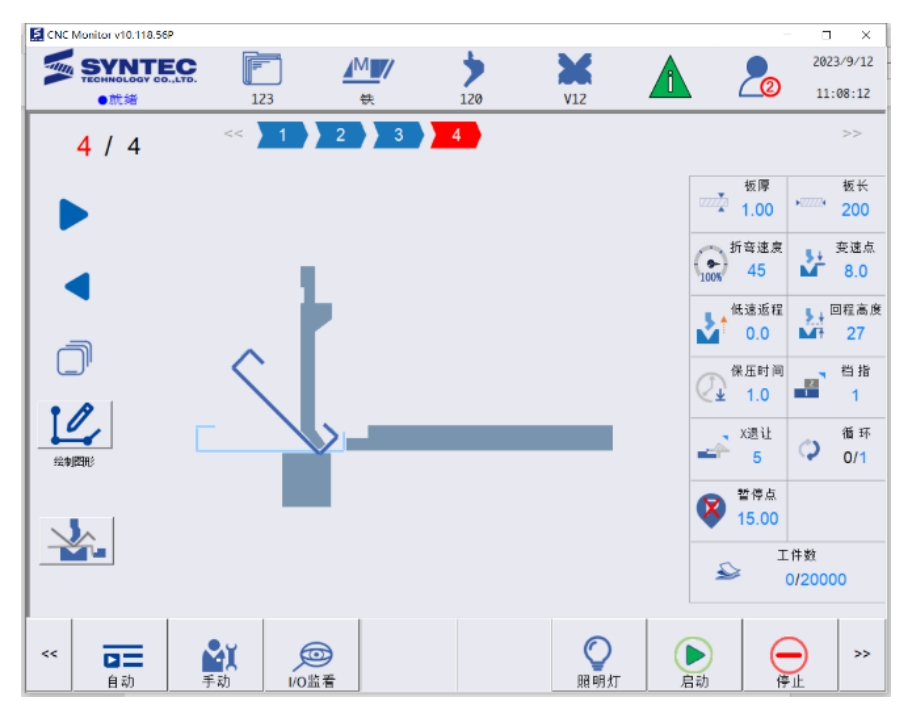

⚫2D graphics quick programming, supports automatic arrangement

sorting and manual sorting

⚫ Bending interference check alarm reminder

⚫ Optional mold and product 2D drawing import

⚫ Optional integrated bending and trolley solution

⚫ Optional servo motor deflection positioning

⚫ V/R/clamping point navigation patented function, fast

Quickly find all angles with accuracy

⚫ Supports multiple languages and can be customized

⚫ Motor torque limit, protection mechanism collision

We deeply cooperate with Syntech company for provide one stop sheet metal working solution for our clients all over the world.You have any inquiry or questions,please contact us freely.
