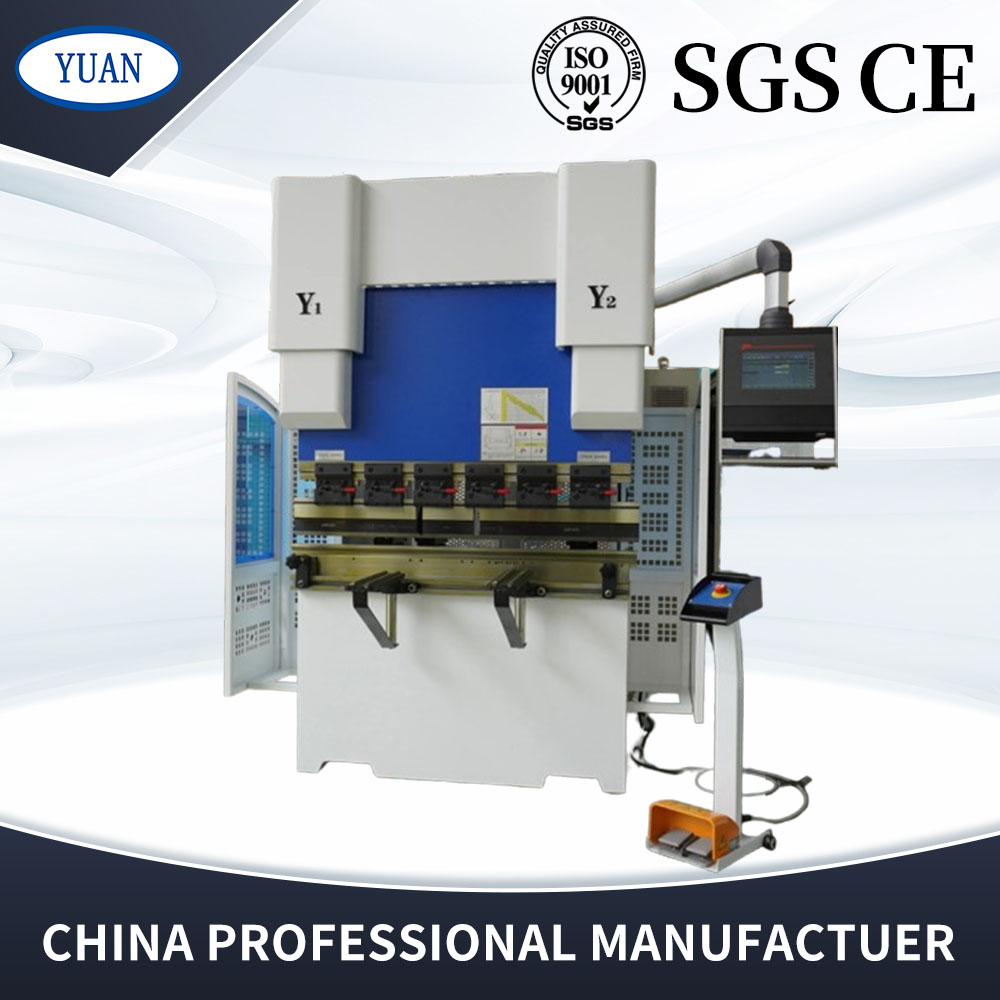

40T 1300 mm Small Press Brake With Esa S630 Controller

small press brake 40T 1300 ESA630.jpg

40T 1300mm Small Press Brake With Eas S630 Controller Configuration:

1.1.CNC system: EAS S630 control axes(Y1,Y2,X,)

1.2.Hydraulic system:original Hoerbiger or Rexroth Germany.

1.3 Grating ruler:GIVI,Italy.

1.4 Motor:Siemens, Germany.

1.5 Pump:Rexroth, Germany

1.6 Electrical element:Schneider.

1.7.Servo motor and driver:DELTA,TAIWAN.

1.8.Toolings:upper tools fast clamping and with compensate, lower tool with multi V.Segmented tools according to your requirement.

1.9.Seal ring: NOK,Japan.

1.10.Front support with table, it can move right and left.

1.11Lower-table mechanical crowning or cylinder crowning mechanism by controlled manual.

1.12.With safety side doors and back doors.

1.13.Hydraulic system with security valve, with spool position and manometer

1.14.With All Security equipment monitored.

1.15.With the Italy DSP laser safety device.

40T 1300 mm Small Press Brake With Eas S630 Machine features:

Machine adopt wholly welding structure, the main parts annealing treatment, releasing internal stress.

◇ The frame and ram are processed at one time completely by heavy duty boring and milling machine.

◇ Big daylight, high ram speed

◇ Ram with fast clamping for up tooling, hydraulic crowning device on working table

◇ Advanced wholly back gauge, X axis with high speed, high precision.

◇Standard configuration ESAS-630 from Italy.

◇ Hydraulic system adopts Germany electric- hydraulic proportional system.

Small Press Brake 40T 1300 mm Optional:

CNC controlling front supporter

◇ Multi-axises control, Max. 16 axises

◇ Laser safe protection

◇ Bending angle automatic detection

◇ Hydraulic clamp for upper tool

◇ Mechanical crowning on working table

◇ Special tools

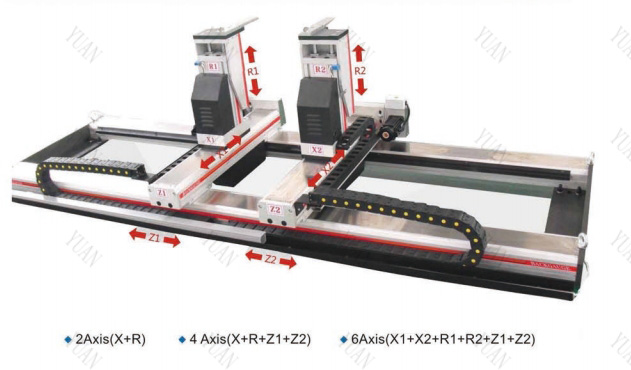

CNC axis function introduction:

small press brake BAG

YY1Y2axis: ram synchronous control axis, controlling bending depth and angle control.

◇ XX1X2axis: Control for back gauge front-back stroke, using controlling bending flange size

◇ RR1R2axis: Control for back gauge beam up-down

◇ ZZ1Z2axis: Controlled back gauge finger left-right movement.

◇ V axis: Working table auto-hydraulic crowning control

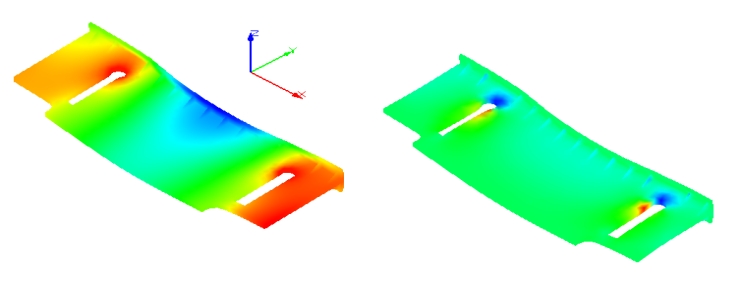

Simulation model engineering and optimization are with famous ANSYS non-linear software(Unique design)

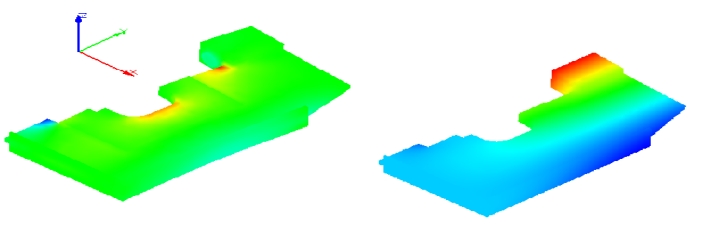

small press brake Upright

                                          Fig.1   Upright

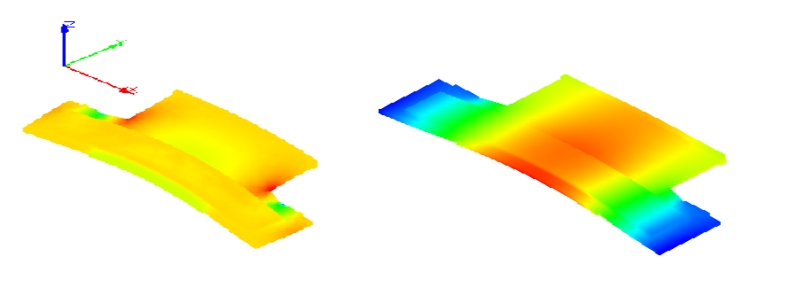

small press brake working table

                                          Fig.2 Working table


            Fig.3 Ram

Machine Parameters:

No

Name

WE67K-40/1300

1

Nominal pressure

400 KN

2

Working table length

1300 mm

3

Distance between uprights

1100 mm

4

Ram stroke

160 mm

5

Max.opening height

400mm

6

Throat depth

250mm

7

Travel in X axis

500mm

8

Approaching speed

80 mm/s

9

Working speed

8.5 mm/s

10

Returning speed

100 mm/s

11

Main Motor power

5.5kw

12

Overall dim. (L*W*H

2100*1430*2210mm

13

Weight

2900 KGS

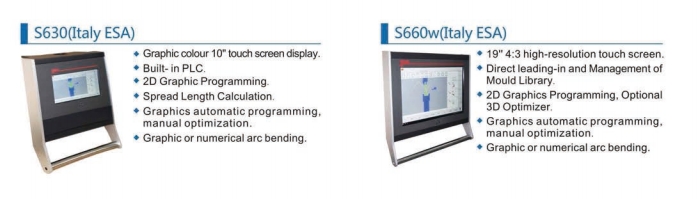

Small Press Brake 40T 1300mm Controller System:

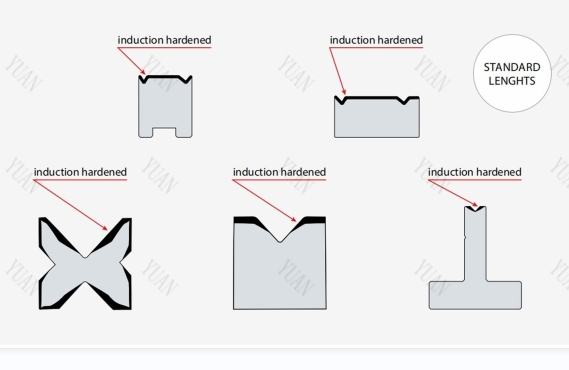

Small Press Brake 40T 1300 mm Punch and Die:

small press brake punch and die
