Mini Electric Press Brake

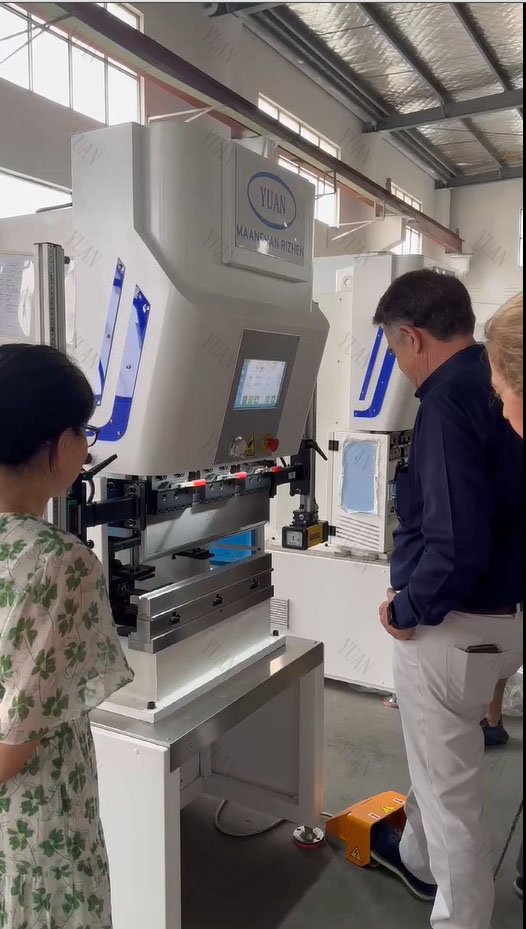

In September ,our Mexico cleint Carlos came and visit our factroy for mini electric press brake.The mini electric press brake is a compact ,movable ,high speed and hign precision bending machine for small sheet metal parts.

mini electric press

Although the mini electric press brake is small ,but function is full.The client is very happy with mini press brake and orders 3 sets for his workshop.

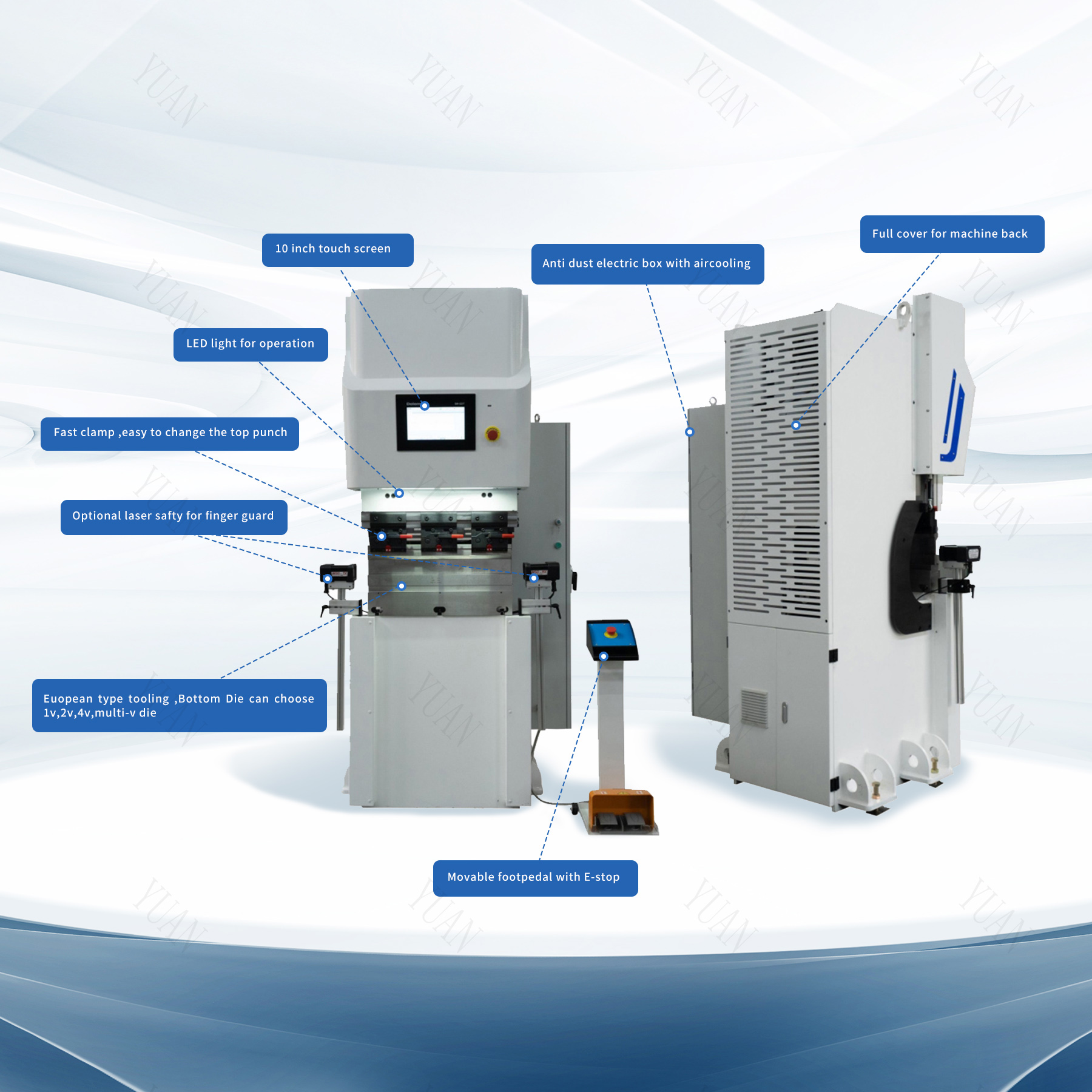

The mini electric press brake has the following feature:

1. 10 inch touch screen ,just input raw materail ,thickness ,bending angle ,width ,easy to learn and operate.

2.Fast clamp for upper tooling adapter ,easy to change for different upper tooling ,like sharp angel punch ,gooseneck punch,standard punch.

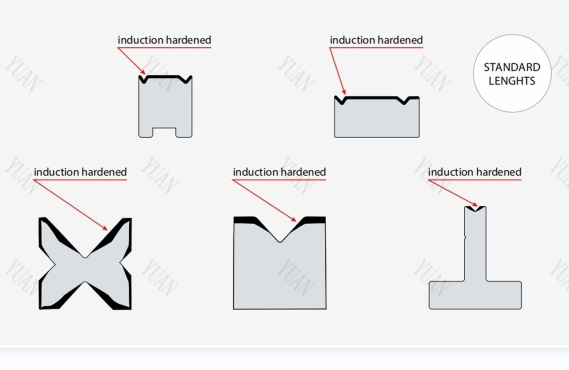

3.Low die is matched with die seat ,it can quick change for different types of low die ,like 1v ,2v ,4v or multi-vee die.

4.Electric box use France Schneider Electric,electric box can match air condition for hot weather.

5.Movabl Footpedal with Emergency stop.

6.Operate table is mounted LED light and can install foldable front table.

7.Full cover for backgaue for people safety.

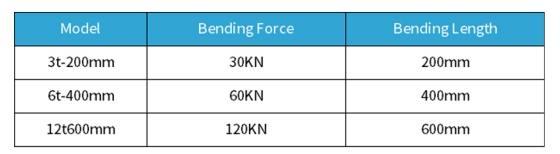

Mini Electric Press Brake Parameters:

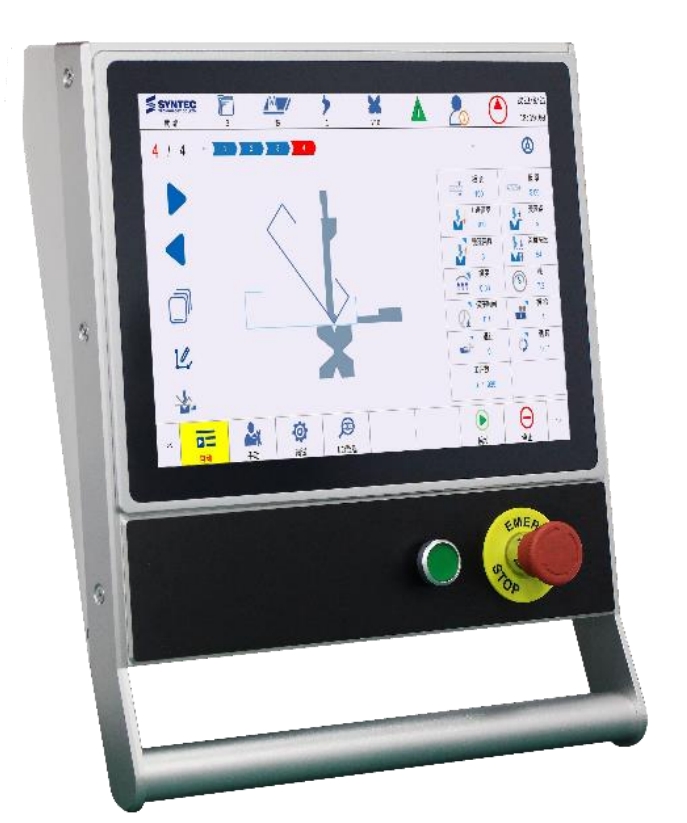

Mini Electric Press Brake Controller:

The Syntec-73BA is cnc system for for mini electric press brake .It is 15 inch touch screen.It provide an easy programming way ,make bending easy and simple.It open connect ,you can match sheet follower.

⚫Product modularization, simple and intuitive operation

⚫ Mold/material/product library can be added by yourself

⚫ Advanced advanced technology, calculation of tonnage and length and short board

method, high precision

⚫ Bilateral angle programming, position programming, arc

Programming to meet diverse bending needs

⚫ Intelligent XR concession, safe and efficient processing

⚫ One-click start of mold closing, automatic reverse push of clamping point

⚫ One-click leveling on the debugging page, automatic leveling of double

⚫Moves slowly from side to side for easy debugging
