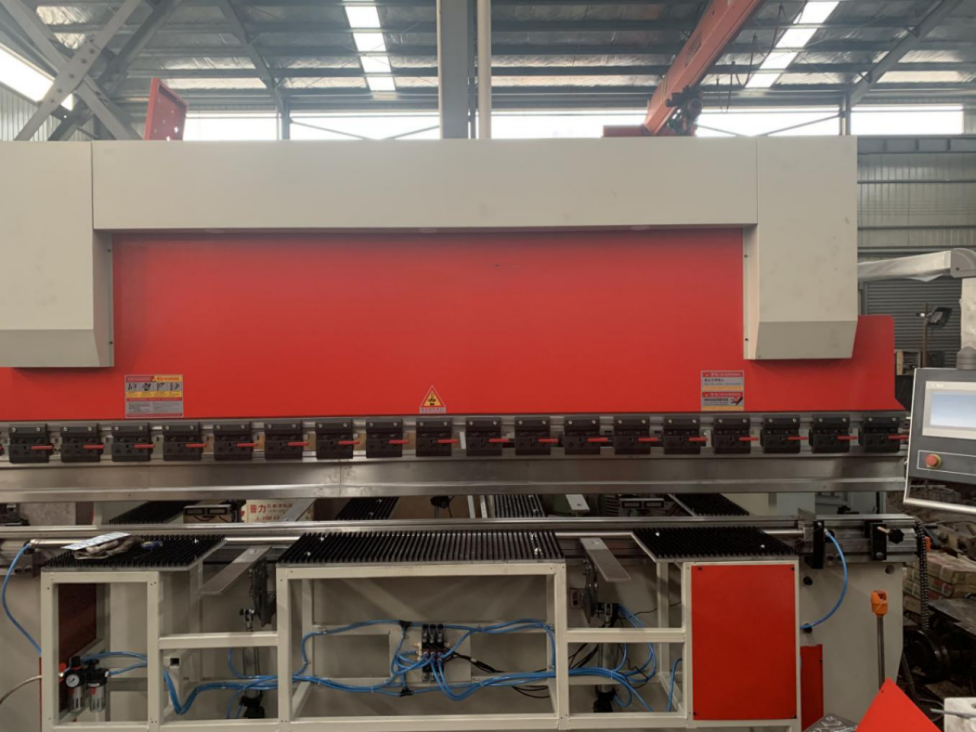

Standard configuration:
1.Double cylinders control ram moving upward and downward.
2.Right-and-left balance achieved by torsion synchronization.
3.NOK Japan layer seals for main cylinders.
4.Schneider key electrics.
5.Upper tools mechanical clamps.
6.Standard front supports arms.
7.Main Motor:Siemens.
8.Oil pump:SUNNY,USA
9.Hydraulic system:Rexroth,Germany
10.Clip-and -sleeve pipe system.
11.The two fingers of back-gauge for 2500mm length machine( three fingers for 3200mm length machine; four fingers for 4000mm)
12.Electrical cabinet with ABB switch power outage.
13.Back-gauge with HIWIN,TAIWAN Balls screw and polish rod
14.Back gauge and oil cylinder are controlled by servo motor ,high precision.
15.Controller:Tp10

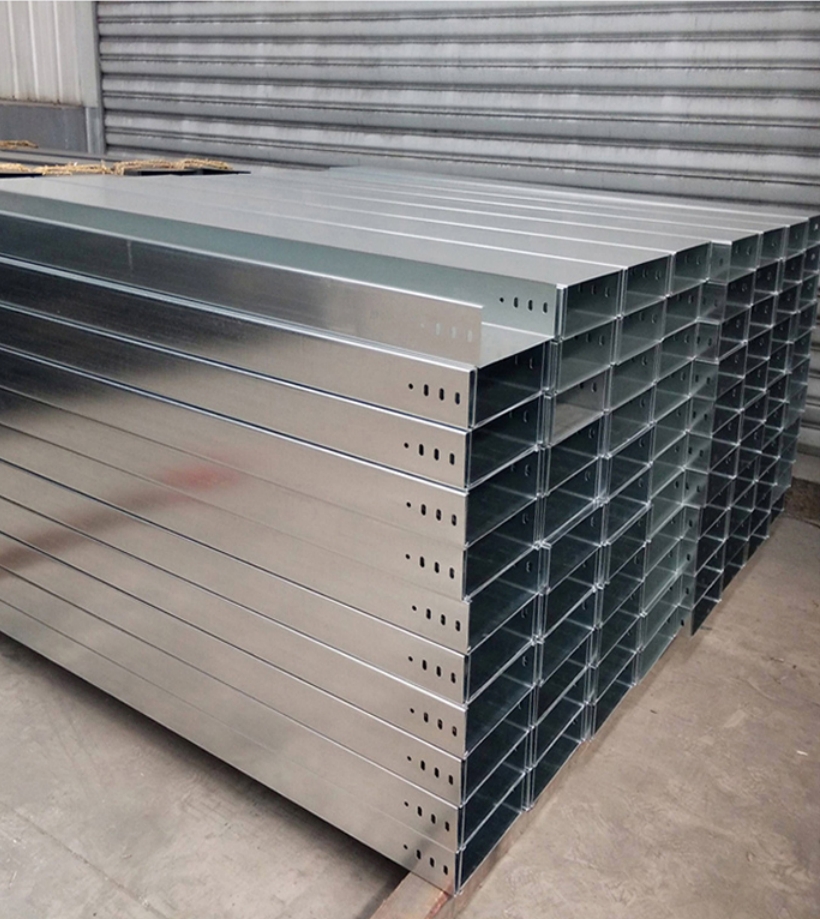

Feature:
1.Hydraulic /Mechanical ram ,synchronized positive stop design ,ram stroke controlled by precision mechanical nut depth stops built into each cylinder.Electronically controlled by TP10S Programmable digital control assuring accurate repeatability.
2.Parallelism is ensured by torsion bar that can be easily adjusted by clutch system.
3.TP10S programmable digital control stores up to 40 unique programs with 25 automatic progressive bending steps in each individual program ,assuring production accuracy &repeatability every time.
4.TP10S programmable hardened ballscrew back-gauge system ,simply enter the desire measurement into the controller and press go,the backgauge then will move quickly into the position you have requested.The superior hardened ballscrew system eliminated any backlash that lead-screw type machines produce.
5.Segmented heavy duty 86° offset top punch is segmented for return bend clearance,complete with European style punch holder with an adjustable wedge clamping system for crowning.Intermediate clamp has safety key to stop punch dropping.
6.Multi ve(V)bottom die is made from one 3200 mm solid die block design to handle heavy plate,safety edge vee(V) is incorporated in bottom die block.
7.Conveniently mounted control box on pendant for quick swivel and adjustments.
8.Mono-block steel frame design,welded then machined to ensure minimal bed deflection under load.
9.Enclosed rear gate with micro safety switches complete with sliding rear door for easy access.
10.European intermediate clamping system,allowing operator to change position of tooling to suit multiple requirements on complex applications.This feature ensures minimum down time,more productivity and results in reduced cost per finished product.
11.Sliding steel fabricated sheet supports enabling a wide range of material sized to be aligned and supported at the correct required height.This feature is achieved with a "T" slot machined down the total length of the die bed sheet supports are also
adjustable vertically to assist in supporting material with return bends already folded.
12.Adjustable sliding blocks control the machines beam to provide desiranle open height distance to the slow speed mute bending point.Operator adjustable locking knobs for quick adjustment,enables accurate repeatability and increased productivity.
13.Metal safety guarding surrounding the machine with rear sliding door fitted and mirco switch ensuring operator safety.Clear access panels placed at each end of machine allows the operator to clearly view tooling and work piece during bending operation.
14.Hydraulic MPA pressure gauge mounted on right side of support frame with quick adjusting pressure control knob allowing operator to accuratelt set the pressure required for different materail thickness ,incorporating with hydraulic overload protection.
15.Welded steel fabricated synchronised torsion bar horizontally supporting main bending beam to provide consistent parallelism that also can be adjusted for taper correction.
16.The vertical supportung slides are treated to provide greater ware resistance and increased accuracy.
17.Reinforced side frames providing addition support strength to machine throat.
18.Mild steel capacity is rated on hot rolled material with 250MPA.
Includes:
1.Swivel pendant control unit operated by TP10S control.
2.Sliding front sheet support arms
3.Emergency stop buttons conveniently located on control panel and foot control
4.Mobil dual operation foot control
5.Segmented 86 ° offset top punch.
6.Solid one piece four way multi vee (V)die block.
7.Top punch tool intermediate holder system with wedge type adjustment.
8.Powered hardened ballscrew back-gauge with 550mm travel ,operated by TP10S control.
9.Oil tank level indicator.
10.Metal constructed safety gudarding surrounding machine with clear side viewing panels.
11.Integrated hydraulic system allowing rapid approach switching automatically to slow bend
Main Specification:
No | Name | WC67K-100T/3200 |
1 | Nominal pressure | 1000 KN |
2 | Working table length | 3200 mm |
3 | Distance between uprights | 2600 mm |
4 | Ram stroke | 120 mm |
5 | Max.opening height | 380mm |
6 | Throat depth | 320mm |
7 | Approaching speed | 80 mm/s |
8 | Working speed | 8-10 mm/s |
9 | Returning speed | 70 mm/s |
10 | Main Motor power | 7.5 kw |
11 | Overall dim. (L*W*H) | 3600*2350*3110mm |
12 | Weight | 7,700 KGS |
