CNC Sheet Folding Machine

Blue Color CNC Sheet Metal Folding Machine with High Efficiency

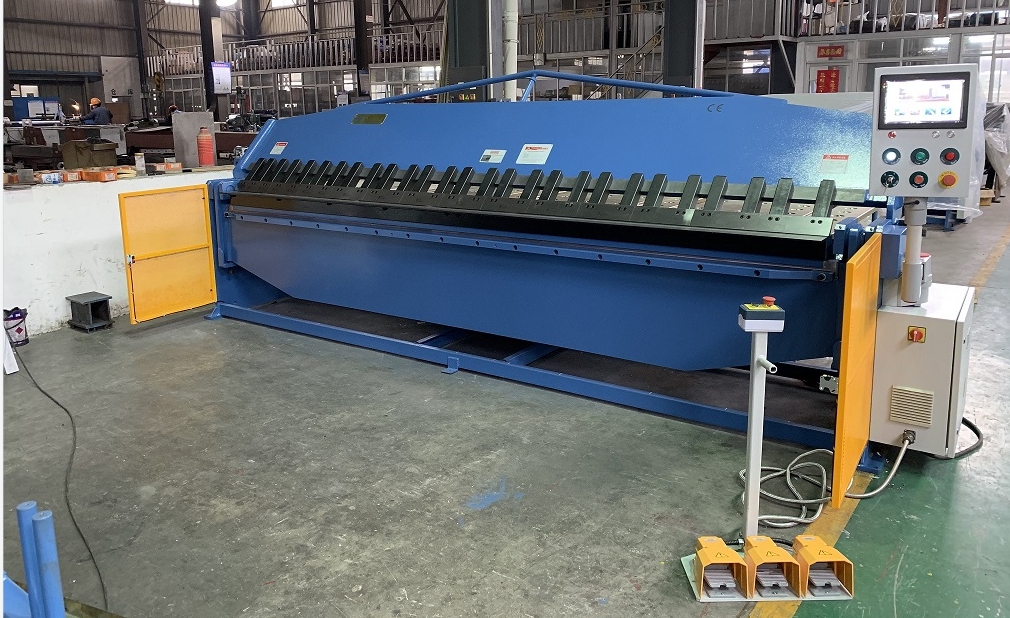

The folding machine is constructed from Q345 mild steel with fully welded plates. The heavy-duty, reinforced folding and bending beams are powered by hydraulic systems. Both the folding angle and backgauge are controlled by a numerical control system. The hydraulic clamp and unclamp functions can be operated with a foot pedal, while the bending clamp is also controlled via a foot switch.

Feature:

• Capacity: 4000mm x 4mm

• User-friendly Control: Single-angle programmable control with a digital readout for angles ranging from 0-130º.

• Auto Cycle: After clamping, the bottom beam bends to the preset angle and returns automatically.

• Hydraulic Bending: Features hydraulic bending with a hydraulic material clamp for efficient operation.

• Flexible Foot Pedal: The roving foot pedal integrates with the control panel, offering maximum flexibility.

• Extended Fingers: Designed to bend pans or boxes up to a depth of 110mm.

• Adjustable Segmented Fingers: Ground segmented fingers can be repositioned to accommodate various applications.

• Heavy-duty Steel Frame: The sturdy, fabricated frame ensures accurate bends every time.

• Safety Stop Lever: The top beam support stop lever is located on the right side of the machine for safety.

• Quick Beam Adjustment: Fast beam adjustment for different material thicknesses.

• Adjustable Rear Backgauge: Includes a manual rear backgauge, which can also be adjusted for tapered materials.

• Mild Steel Capacity: Rated for hot-rolled mild steel with a 250 MPa tensile strength.

Technica data snap shot:

• Large Bending Angle: 0-135° range for versatile bending.

• Maximum Box Depth: Can bend boxes up to 110mm deep.

• Powerful Motor: High-performance motor for efficient operation.

• Clamping Beam: 200mm clamping beam for secure material handling.

• Hydraulic Operation: Hydraulic bending and clamping beams for heavy-duty, efficient performance.

• 24-Volt Control Wiring: Safe and reliable 24-volt control system.

• Durable Bending Fingers: Made from hardened materials to extend lifespan and improve durability.

Numerical Control System

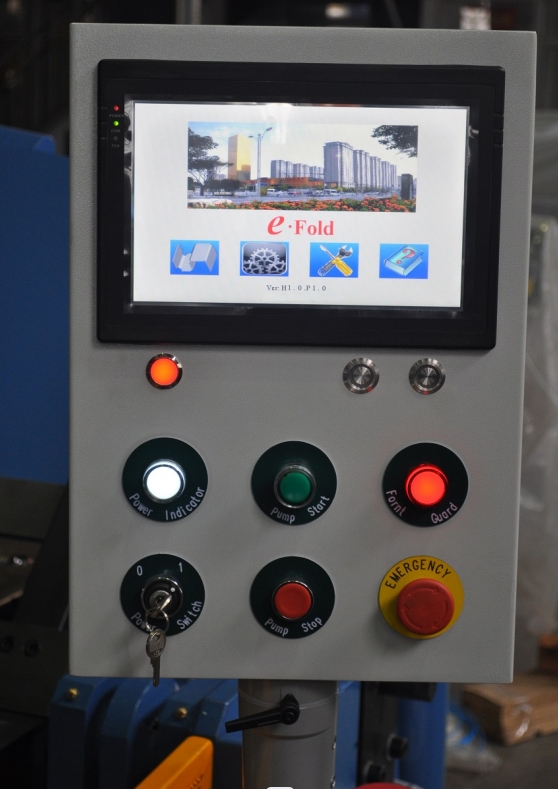

The CNC touch screen allows for automatic bending and clamping. It can save up to 99 programmable angle settings for fast and precise folding. For a single program, up to 20 steps can be stored. The system operates in manual, step-by-step, automatic, and repeat modes. It’s designed to control a 4-ram folder with functions for up, down, clamping, and release.

Hydraulic System:

The compact hydraulic system delivers powerful folding and clamping force. The hydraulic station is mounted at the back of the folding machine, keeping the setup clean and tidy.

High-quality components ensure reliable performance for years of continuous use.

The direct-coupled hydraulic pump and motor provide efficient and fast operation.

The unique hydraulic control system ensures safe and easy operation.

Specification:

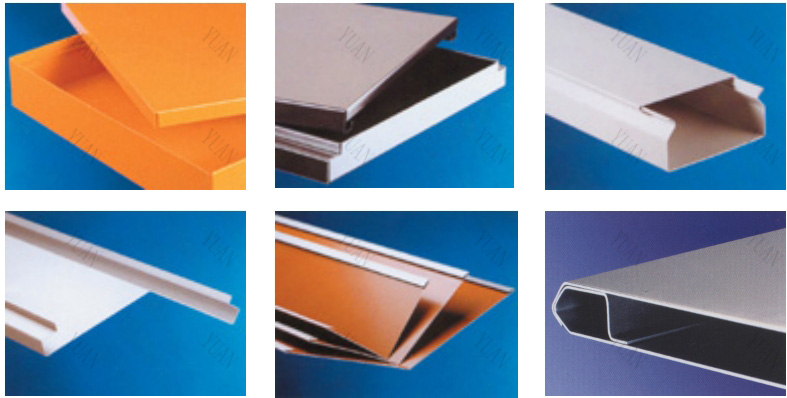

Folding Samples:
