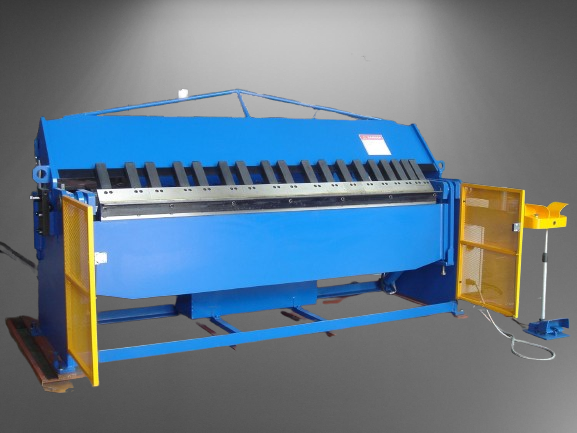

Sheet Metal Folder 2mm

Technical data snap shot

1.Max depth of box bent 185 mm

2.Powerful motor

3.150 mm 5`lift of clamping beam

4.Hydraulically operated bending and clamping beam for efficient heavy duty operation

5.24 volt control wiring

6.bending fingers made from hardened material, maximizing life

Main structure:

The main parts of the machine tool adopt welded steel plate construction.

Eliminate internal stress by heat treatment, assuring high strength, good rigidity and lightweight.

The machine is composed of  bed ,pressing beam ,bending beam ,back gauge die sets ,hydraulic system ,safety guards ,electrical system, working harmoniously and reliably.The machine with hydraulic driving system can run stably and easy to maintenance . The upper die is sectional type that can combine to 0the different length willfully, suitable for the plate and case part’s manufacture. The working angle can be adjusted rapidly.

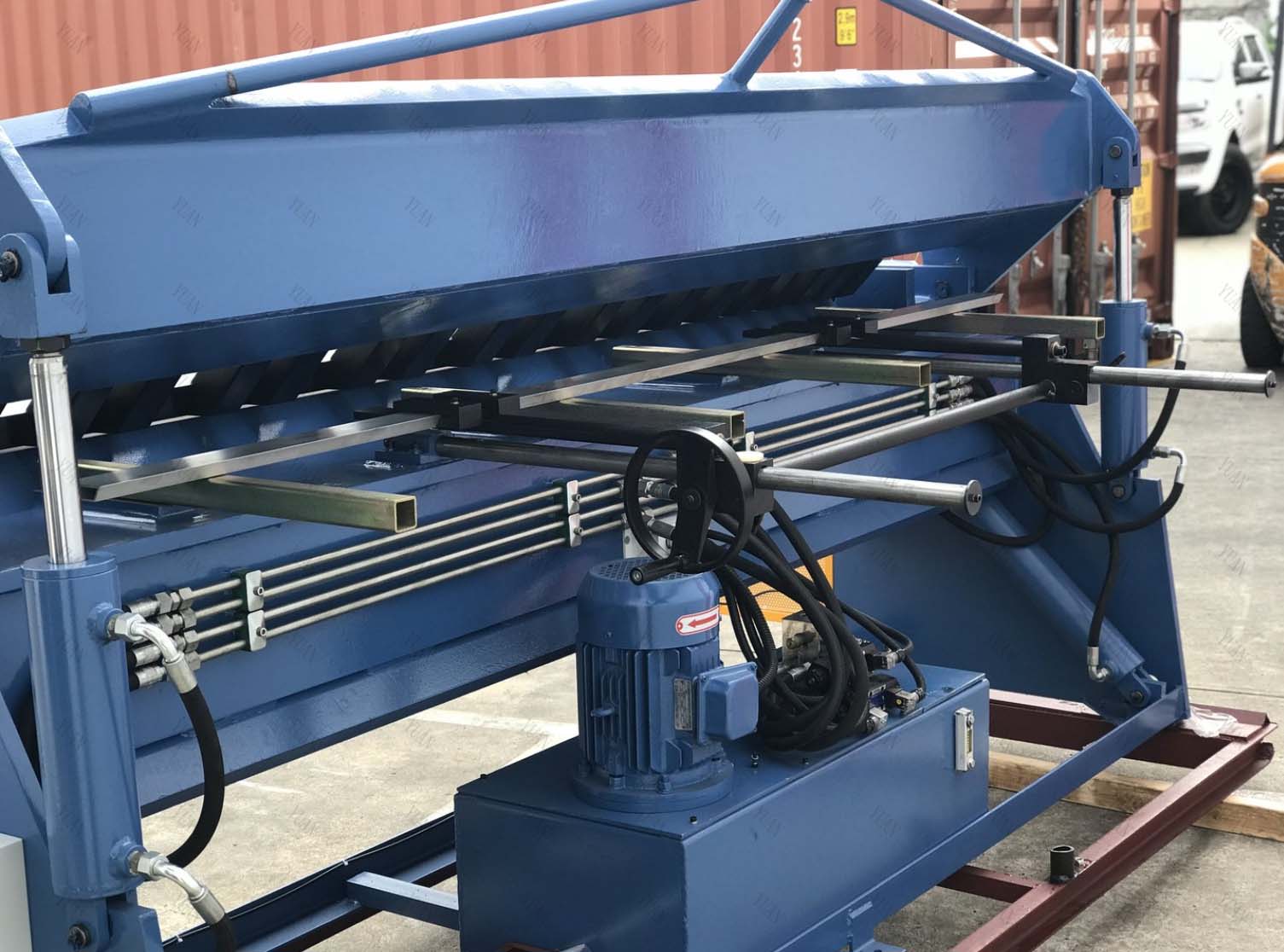

Hydraulic Systems:

Hydraulic  are all neately mounted in the folder backgauge,so it minimize workshop floor space ,offer you great capacity to do your folding operations.Both clamping and bending is powered by hydraulic and the power can be

adjusted according to different requst.

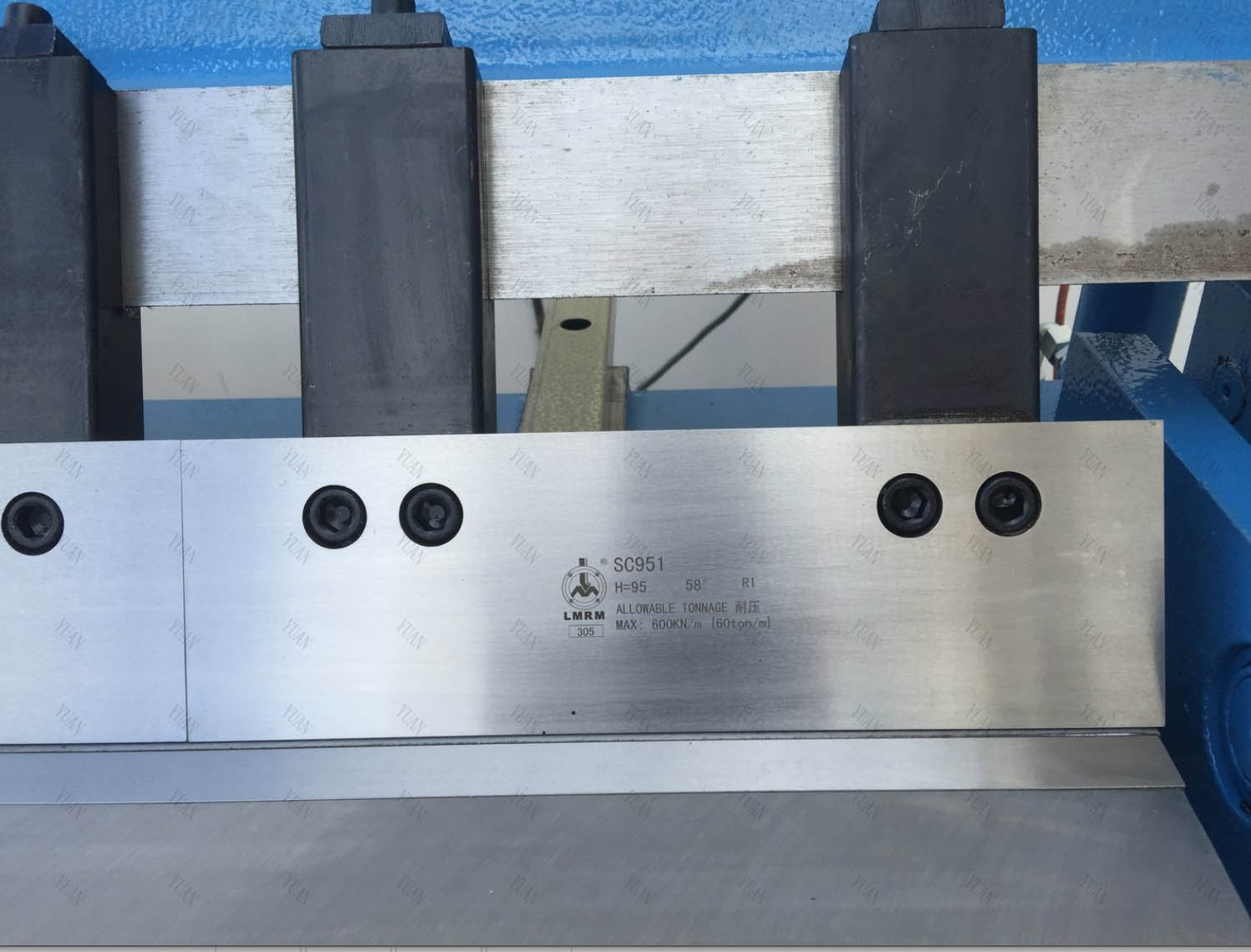

Folding Machine With Segmented Clamp and Blades

The die sets adopt high-harbonnium steel material that process through forging, heat treatment, milling and grinding, with high rigidity and good endurance. The up-die of the clamping beam is connected by some short dies, which are of high precision, exchange ability, easy to install and remove the parts.

Folding Sheet Capacity:

2500mm x 2.0mm mild steel bending capacity

2500mm x 1.0mm stainless bending capacity

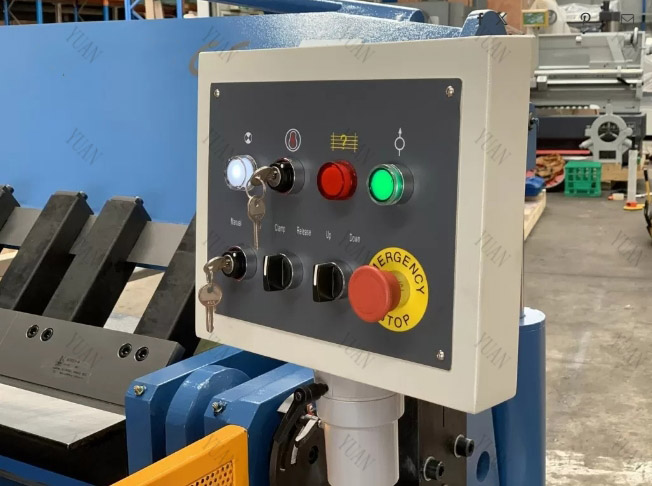

Console controller:

Auto and manual operations.Easy to operate,freindly to beginner.

Sheet Metal Folder  W62Y-2*2500 Specification:

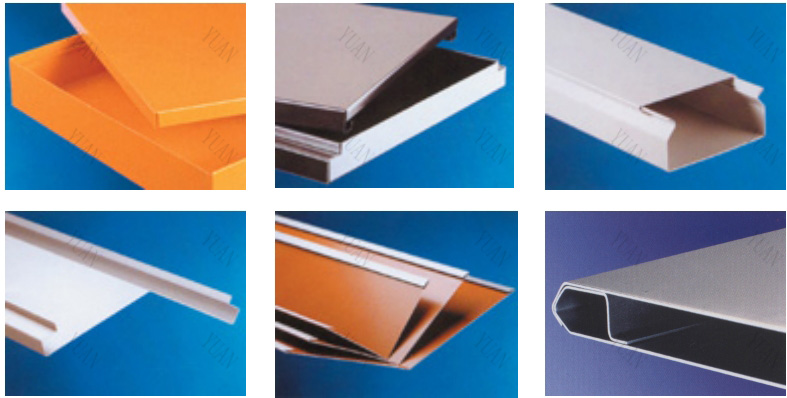

 Metal Folding Samples:
