Raytool Laser Ceramic Rings

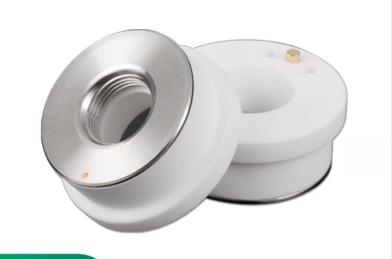

Ceramic ring is widely used for fiber laser cutters / cutting machines. Ceramic ring is used to
transmit the electrical signals collected by the nozzle of the laser head, to prevent the cutting
head above the ceramic body from being damaged when the cutting nozzle collides and has
an important role in the normal and stable operation of the laser cutting machine.

We can provide all types of ceramic rings for raytools laser cutting head.

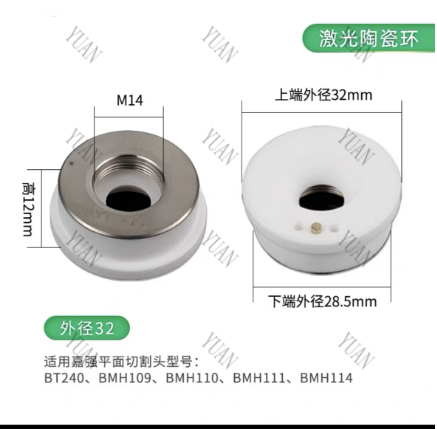

This is Raytools laser ceramic body ring D32

Thread M14,totally height is 12mm.

Upper diameter 32mm ,lower end diameter 28mm

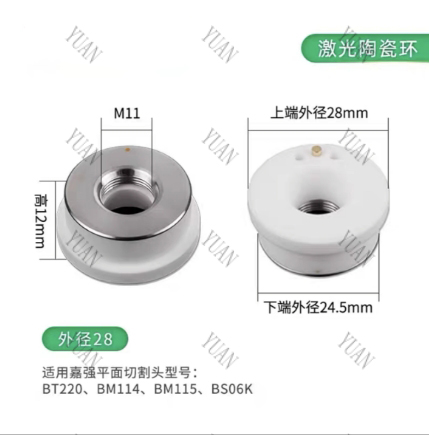

This is Raytools laser ceramic rings D28

Thread M11,totally height is 12mm.

Upper diameter 28mm ,lower end diameter 24.5mm

It is suitable for raytools laser cutting head BT220,BM114,BM115,BS06K.

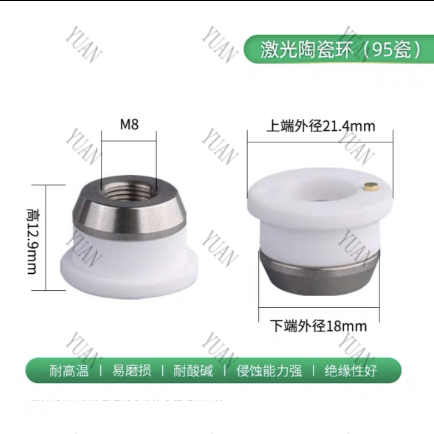

This is Raytools laser ceramic D21.4 mm M8

Thread M8,totally height is 12.9mm.

Upper diameter 21.4mm ,lower end diameter 18mm

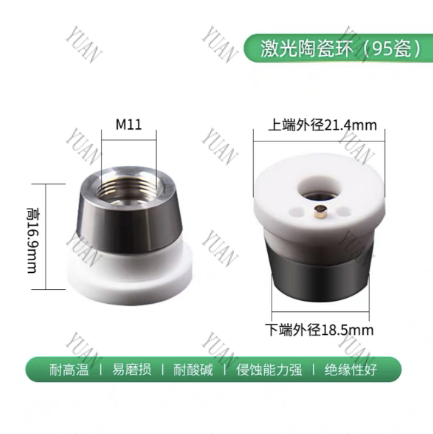

This is Raytools ceramic rings D21.4mm M11

Thread M11,totally height is 16.9mm.

Upper diameter 21.4 mm ,lower end diameter 18.5mm

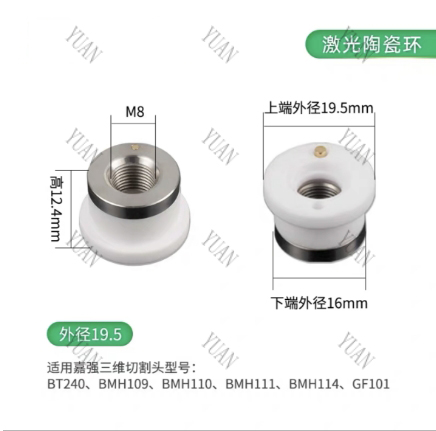

This is Raytools ceramic body D19.5 for laser cutting head

Thread M8,totally height is 12.4mm

Upper diameyer 19.5mm,lower end diameter 16mm

It is suiatble for laser cutting head BT240,BMH109,BMH111,BMH114,GF101

We offer you thre high quality ceramic body from Raytools genuines.

If you needs ,please contact us freely.
