4 in One Handheld Laser Processing Head BW101-GS

BW101-GS

The BW101-GS has four function ,they are welding,cutting ,weld seam cleaning and remote cleaning.

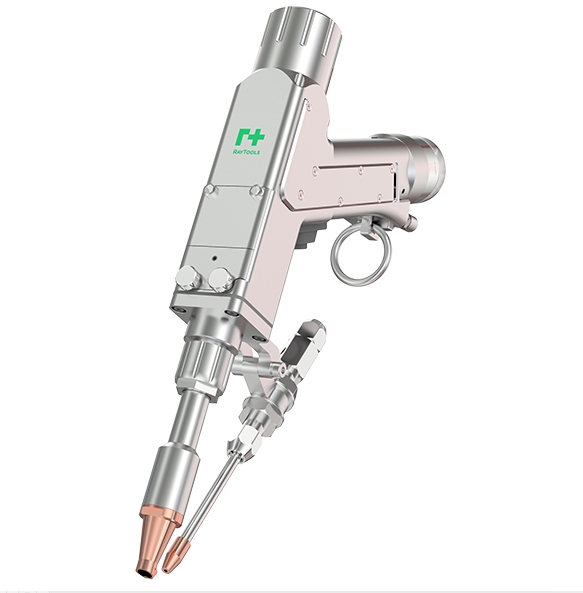

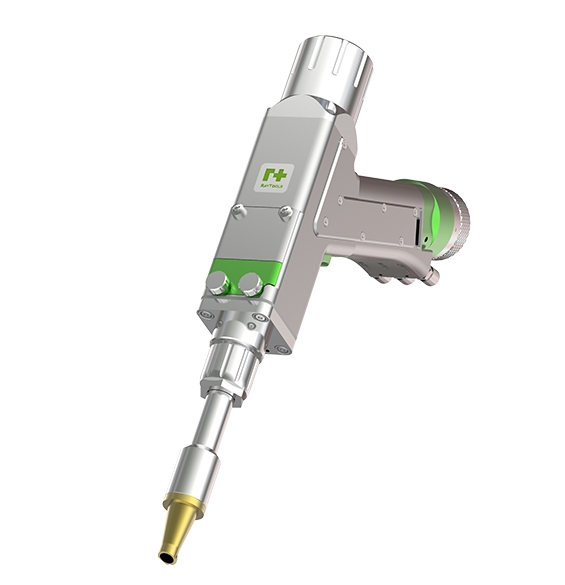

4 in one handheld laser processing head

Introduction:

1.Single axis wobble with adjustable line spot 0-5mm.

2.Various tip assemblies in standard kit to fullfil cutting ,welding and weldseam cleaning .Assemblt of remote cleaning is optional.

3.Wire feeder as optional to expand application range.

4.Multiple safety protection with auto beam off function once the nozzle goes away from workpiece.

5.4-in-one laser control system (cut/weld/weldseam clean/remote clean) and HMI panel are included.

6.4-in-one handheld laser processing:hand-cut,weld,weldseam clean and remote clean.

Parameters:

Fiber Interface

QBH

Clean Aperture

14mm

Collimator Focal  Length

60 mm

Focusing Focal Length

150 mm



Wobbling Width

0-5 mm weld

Wobbling Width

0-10 mm weldseam clean

Wobbling Width

0-80 mm remote clean

Cover glass-focusing side (middle bottom)

Φ 20*3mm

Assist gas flow

15-25L/min

Weight

-0.9 Kg



Optional Tip

Cutting Assembly

Optional Tip

Welding Assembly

Optional Tip

Cleaning Assembly

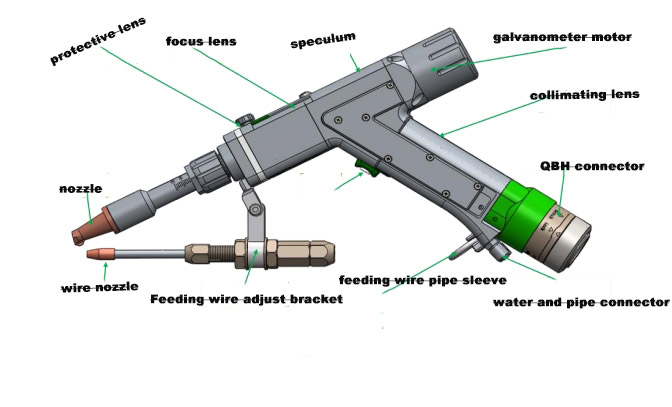

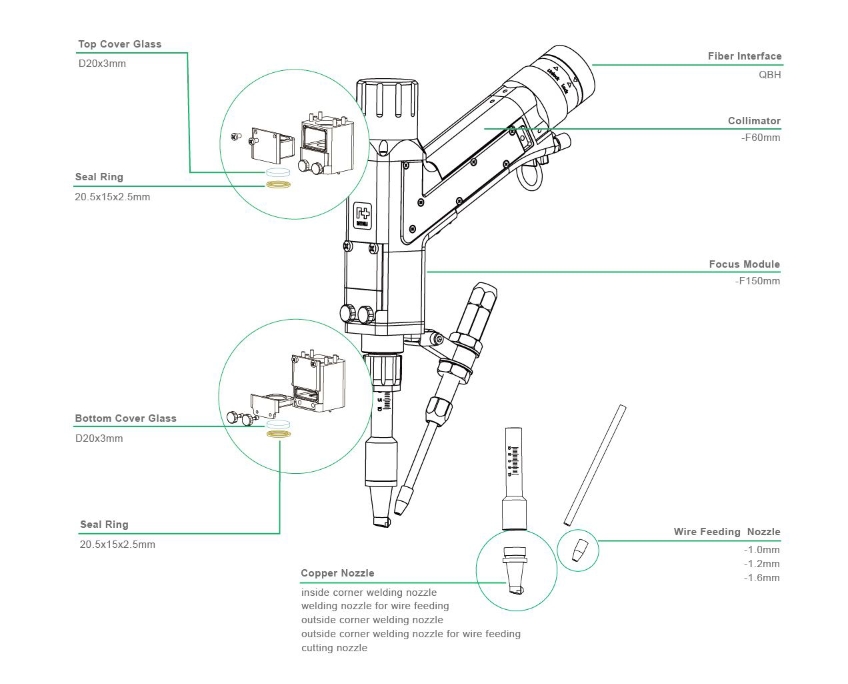

Detail Structure:

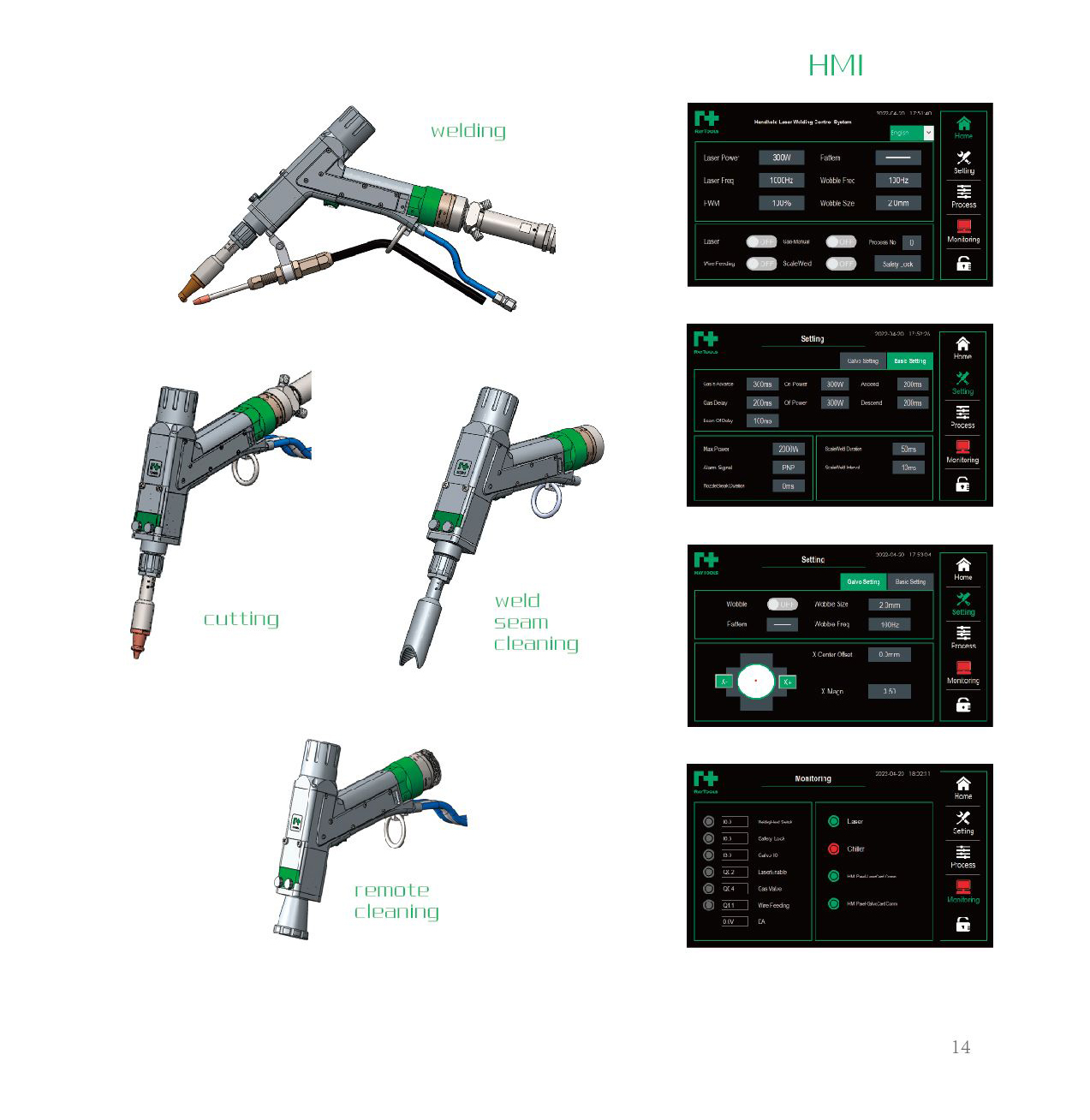

Four functions:

Raytools Laser welding Tools-2023_23 BW101 副本.jpg

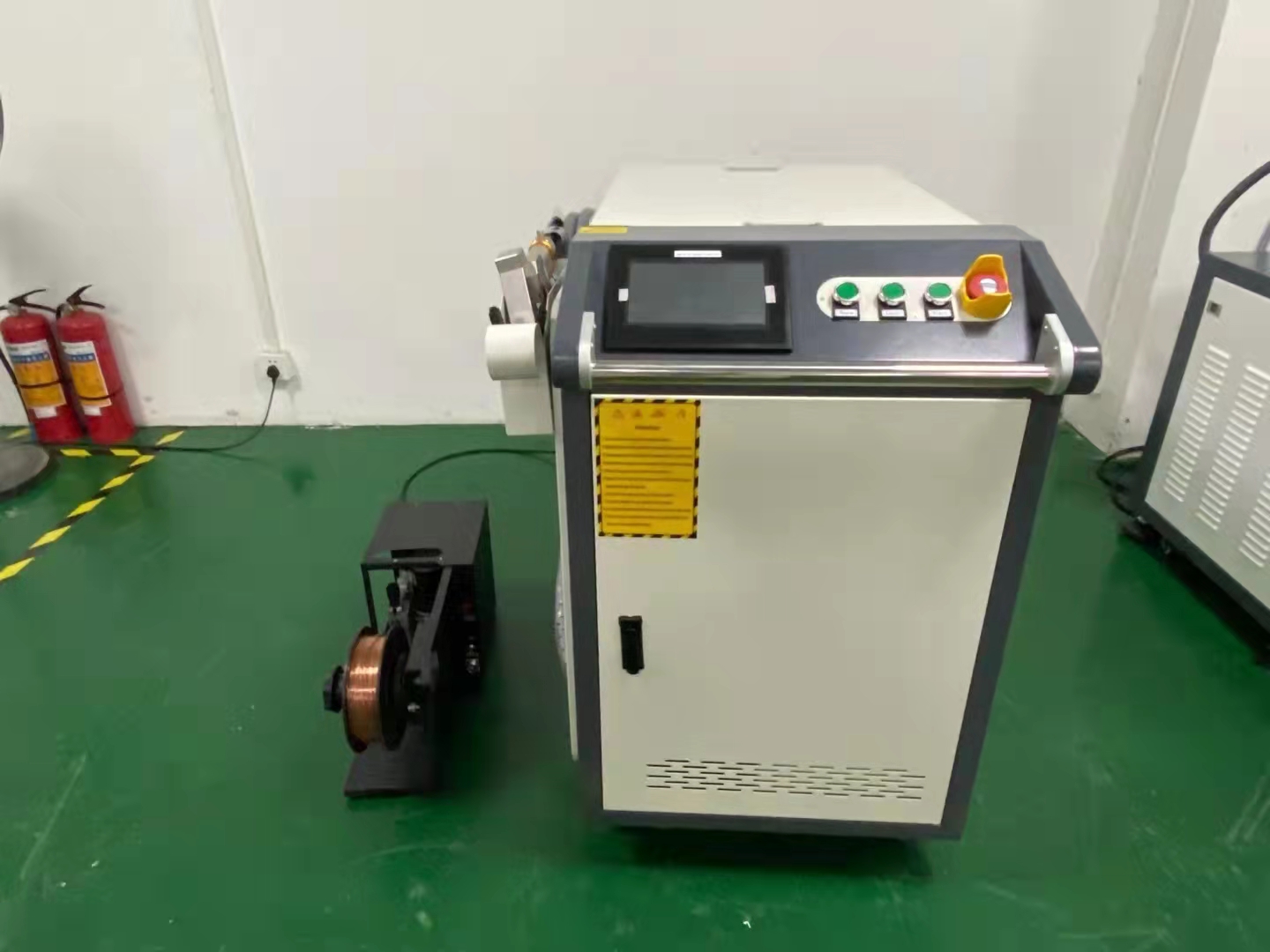

If you need handheld laser welding machine ,please contact us freely.

handheld laser welding machine
