Manual Grinder

dry metal deburring sander

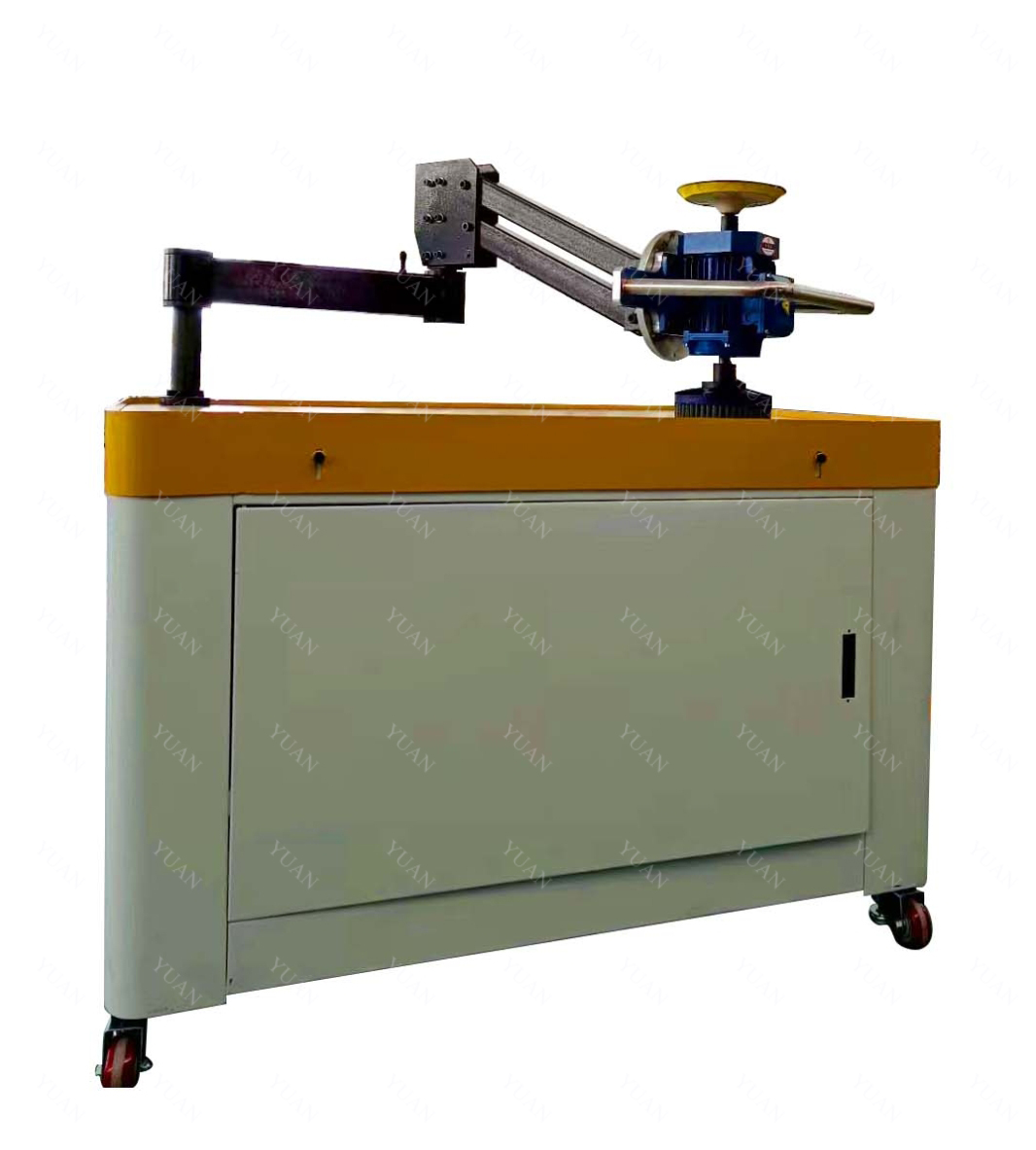

This is table type manual deburring machine.

The manual grinder is a multifunctional starter model and the best cost-saving choice. The machine is suitable for various finishing operations on metal parts such as deburring, edge rounding, finishing, laser oxide removal and heavy slag removal. Also, mirror finish can be created if required. With the 180 degrees rotating shaft,it’s quick and easy to switch between different consumables.

Deburring is removal of irregularities and sharp edges on metal products.They are often caused by machining work such as laser ,water jet,punched or plasmat cutting.

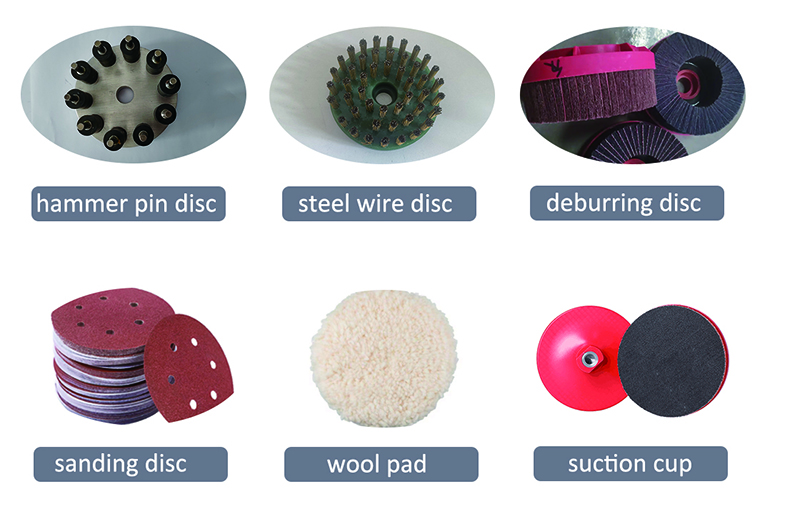

The versatile machine has two heads:an easy to change grinding disc and a brush.The different kind of brushes can take care of deburring ,edge rounding ,finishing ,laser oxide removal and heavy slag removal.Also ,mirror finish can be created if required.Thanks to the 180 degrees rotating shaft,it is easy to repidly switch between different consumables.

Features:

1.The main frame is fabricated and ribbed with heavy steel plate to minimize vibration and deflection.

2. Instantly deburring different shapes and/or thicknesses without re-setting the working dimensions of machine. Simply place the work piece on the table and debur them.

3.This machine can also be used for grinding, finishing and rounding edges with different abrasive materials and disc types.

4.The movable cantilever sanding head is easy to move and anywhere and any altitude in the working area for deburring the work pieces which are in irregular shapes and different thicknesses.

5.Disc type sanding head allows abrasive installed on the top and bottom. Head can pivot 180 degrees to quickly switch the top and bottom abrasives.

6.Powerful vacuum system efficiently holds the work pieces firmly.

Standard configuration:

1.2-position movable arm with arm with weight compensation.

2.Starter set to process different materials.

3.Grinding dust is collected in an easy to clean container.

4.Frequency controlled drive.

5.Worktable 1200*750mm.

6.Vacuum table size 295*295 mm for small parts.

7.0.75kw for grinding

8.CE certified

9.Voltage is custom made.

Parameters:

Name	Parameters
Table	1200*750 mm
Vacuum area	295*295 mm
Swing Hanging area	1200/360°
Max thickness of a part	145mm
Grinding motor	0.75 kw
Totally motor	3.95 kw
Number of heads	2
Head types	Disc,brush
Rotating grinding heads	180°
Size	12107581295 mm
