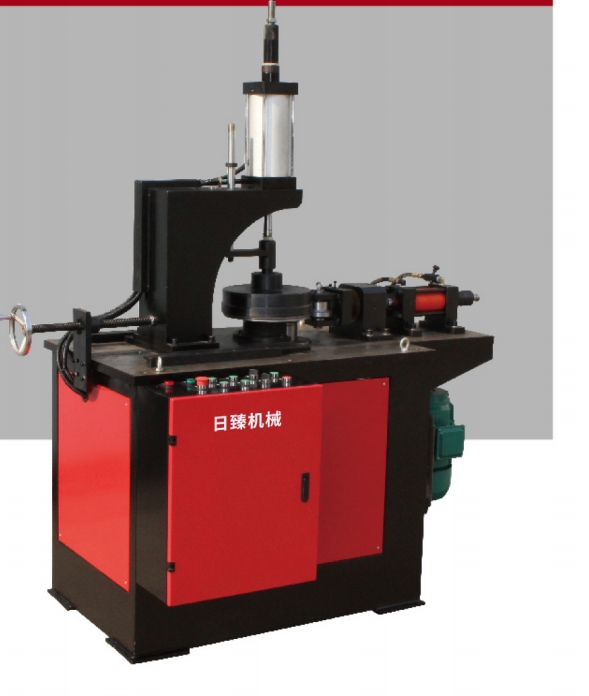

Trimming and Shrinking Machine for LPG Cylindrical Head End Edge

The integrated head trimming and shrinking machine is a special equipment designed according to customer product requirements. It is a multi-functional and multi-purpose equipment that integrates edge trimming and shrinking. It is mainly used for circular stamping parts and stretched heads. For the trimming and shrinking of the remaining material of the product, different molds and tools can be replaced, which saves time and effort.

Feature:

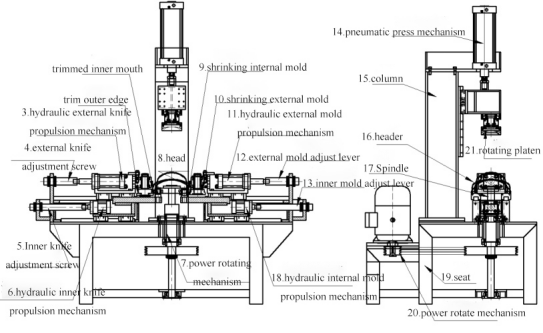

This product is mainly composed of a hydraulic system, a frame, a base, a pneumatic pressing mechanism, a spindle rotating mechanism, an automatic trimming mechanism, an automatic shrinking mechanism and a main controller.

The main spindle of the equipment is equipped with a brake motor to achieve rapid start and stop of the spindle, improving production efficiency and equipment safety performance. The edge trimming and shrinking feed mechanism adopts a stroke-adjustable cylinder with adjustable speed, which is stable and reliable and shortens the working time. .

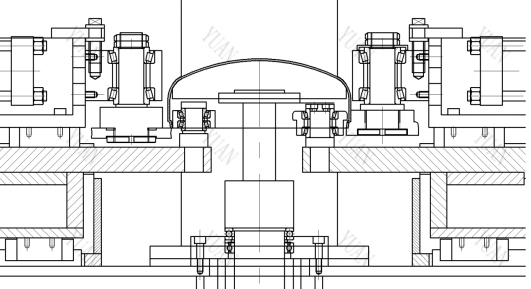

The product controller uses a PLC programmable controller as the core control unit and has a touch screen setting that can adjust manual and automatic operation modes. Automatic control controls and coordinates the actions of each actuator (cylinder) through automatic control of hydraulic valves; when an emergency occurs, manual control and coordination of each actuator (cylinder) are used. When the equipment is working normally, automatic control is selected. Once the equipment fails to control, manual emergency control can be performed, thus ensuring the safe and reliable operation of the equipment. Different head diameters, replace different spindle supporting molds

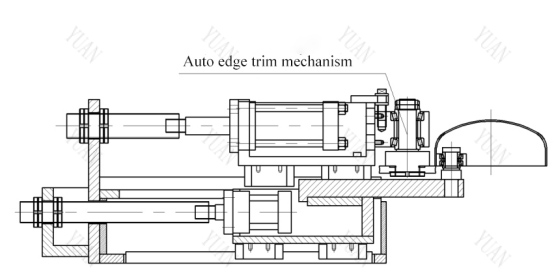

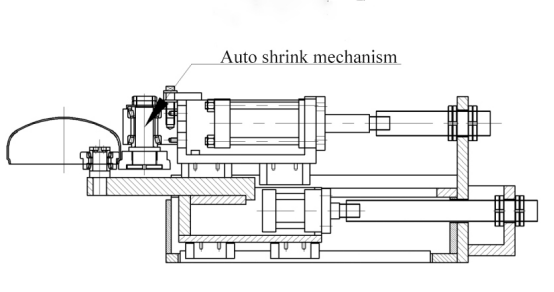

The working process of this equipment: ① Place the workpiece (head) on the spindle support mold, start the switch, and automatically press the workpiece. ②The spindle automatically rotates, and the trimming mechanism cylinder advances the tool to automatically complete edge trimming. ③The shrinking mechanism cylinder pushes the mold to automatically shrink to complete. ④ Manually remove the head and waste materials, and place the new workpiece to be processed on the spindle die...

Parameters:

Application of cover timming and shrinking machine:

1.Air compressor

2.Pressure vessel cover

3.LPG cylindrical head，Liquefied petroleum gas
